19. Replace the I/O module in chassis and secure the latches.
20. Install the back top cover.

Installing the RAID SCSI Cable Assembly (A80377)

The optional RAID SCSI cable assembly provides interconnection between the SCSI output
connector on the I/O board and the SCSI connector on the installed RAID PCI card.
NOTE
While these instructions show how to install the RAID SCSI cable assembly,
the illustrations shown represent only one possible configuration. The cable
assembly has been designed to accommodate various RAID SCSI controllers
located in any PCI slot.

Installing the SCSI RAID Cable Assembly

To install the SCSI RAID cable assembly:
1. Switch off the server at the front panel and disconnect the AC power cords to remove standby
power from the chassis.
2. Open the top rear cover or slide the I/O module out of the chassis to expose the interior of the
I/O module.
3. Install the RAID SCSI add-in card in any available PCI slot per manufacturer's
recommendations.
4. Connect one end of the cable to the I/O board.
5. Connect the other end to the RAID SCSI card.
6. Fold the cable as shown in Figure 83.
CAUTION
Do not let the cable lay flat in front of a fan. Placing the cable flat in front of
the fan reduces airflow through the chassis.
Intel® SR870BN4 Server System Product Guide

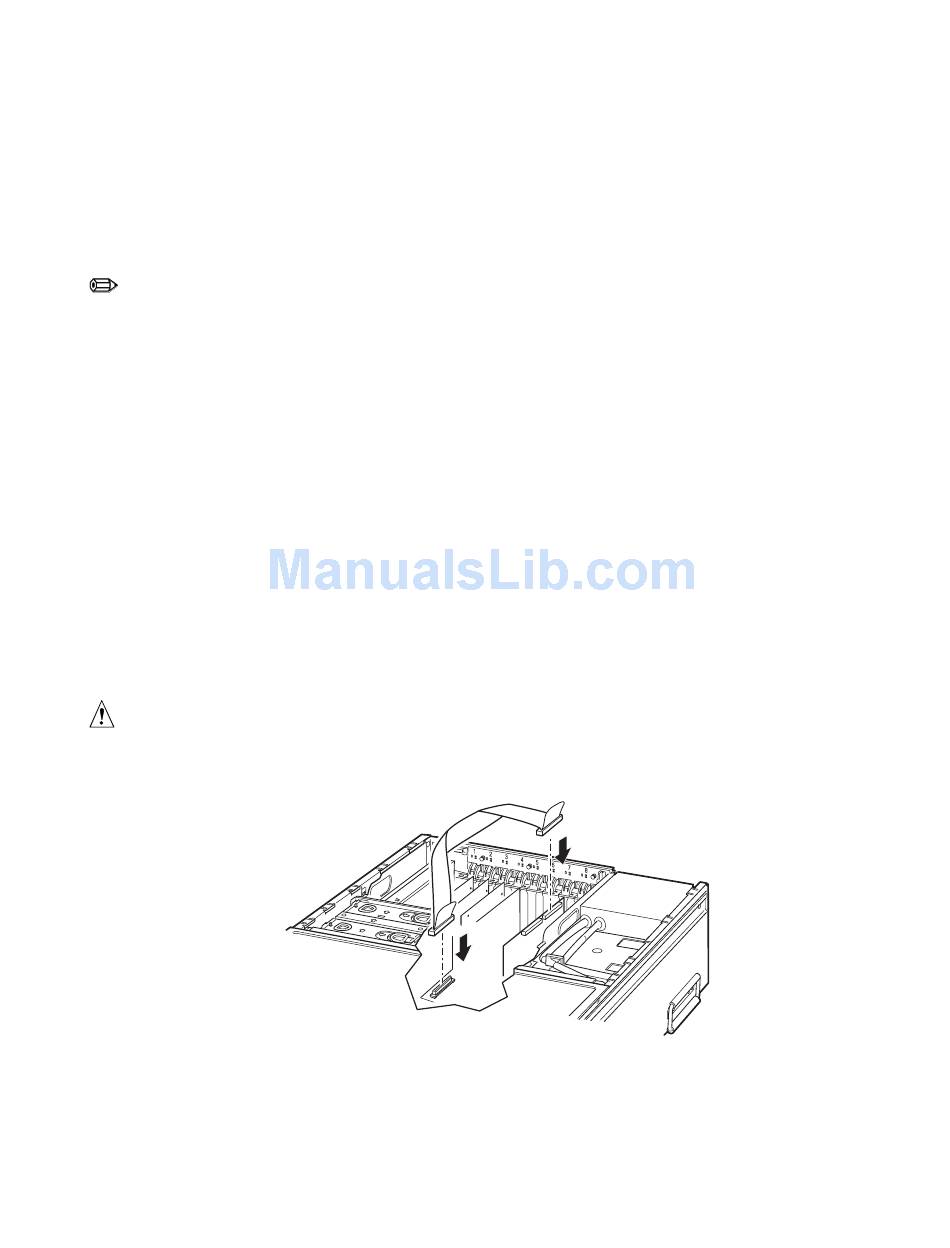

Figure 83. Installing the SCSI RAID Cable Assembly
OM12968
205
