New/Edit LAN Alert
The New/Edit LAN Alert screen is displayed when teh user clicks either New or Edit on the LAN
Alert Configuration screen. The New/Edit LAN alert screen allows the user to configure or change
the settings related to an IP address that is to receive alerts. The screen displayed either to
configure a new alert destination or to edit an existing alert is the same, except that when editing an
existing alert destination, the current settings read from the firmware are automatically displayed.
After completing this screen, click OK to return to the LAN Alert Configuration screen.
Destination IP Address
This edit box allows the user to enter the IP address to which an alert is to be sent. The IP address
is entered as a dotted notation, such as 192.168.0.2. The SMU does not check whether an IP
address matches a previously entered address.
Destination MAC Address
This edit box is used to enter the MAC address of the destination machine to which the alert should
be sent. This box is used when the destination IP address is outside the subnet that the server is on.
The MAC address should be entered as a series of six pairs of hex digits separated by dashes, such
as 00-01-62-d0-3e-66. Alphabetic hex digits (a-f) can be entered in uppercase or lowercase. This
edit box is disabled by default and is only activated if the check box is not checked for
Automatically will resolve destination MAC address.
96

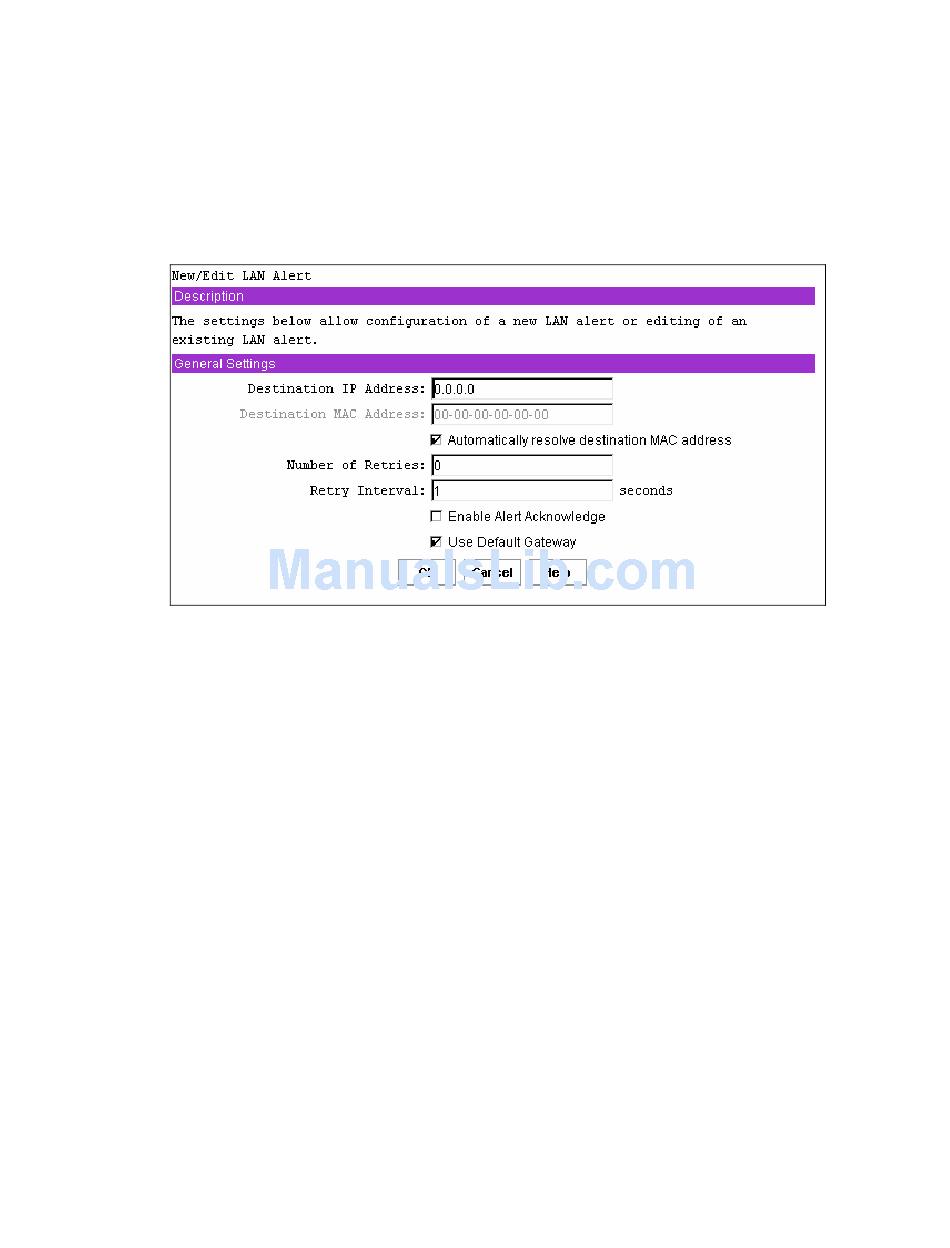

Figure 27. New / Edit LAN Alert
