Installing a Power Pod

To install a power pod:
1. Place the power pod into position on the processor board as shown in Figure 95. Slide the
power pod to engage the power pod's connector with the connector on the processor as shown
by the arrow (A in Figure 95).
2. Tighten the four captive screws (B in Figure 95) on the power pod to secure it to the
processor board.
B
3. Connect one side of the Y-cable to the power pod and verify that the Y-cable connects to all
installed power pods.
4. Close the processor/memory module and verify that the latches are secure.
5. Insert the processor/memory module into the chassis.
218
B
B
B
A

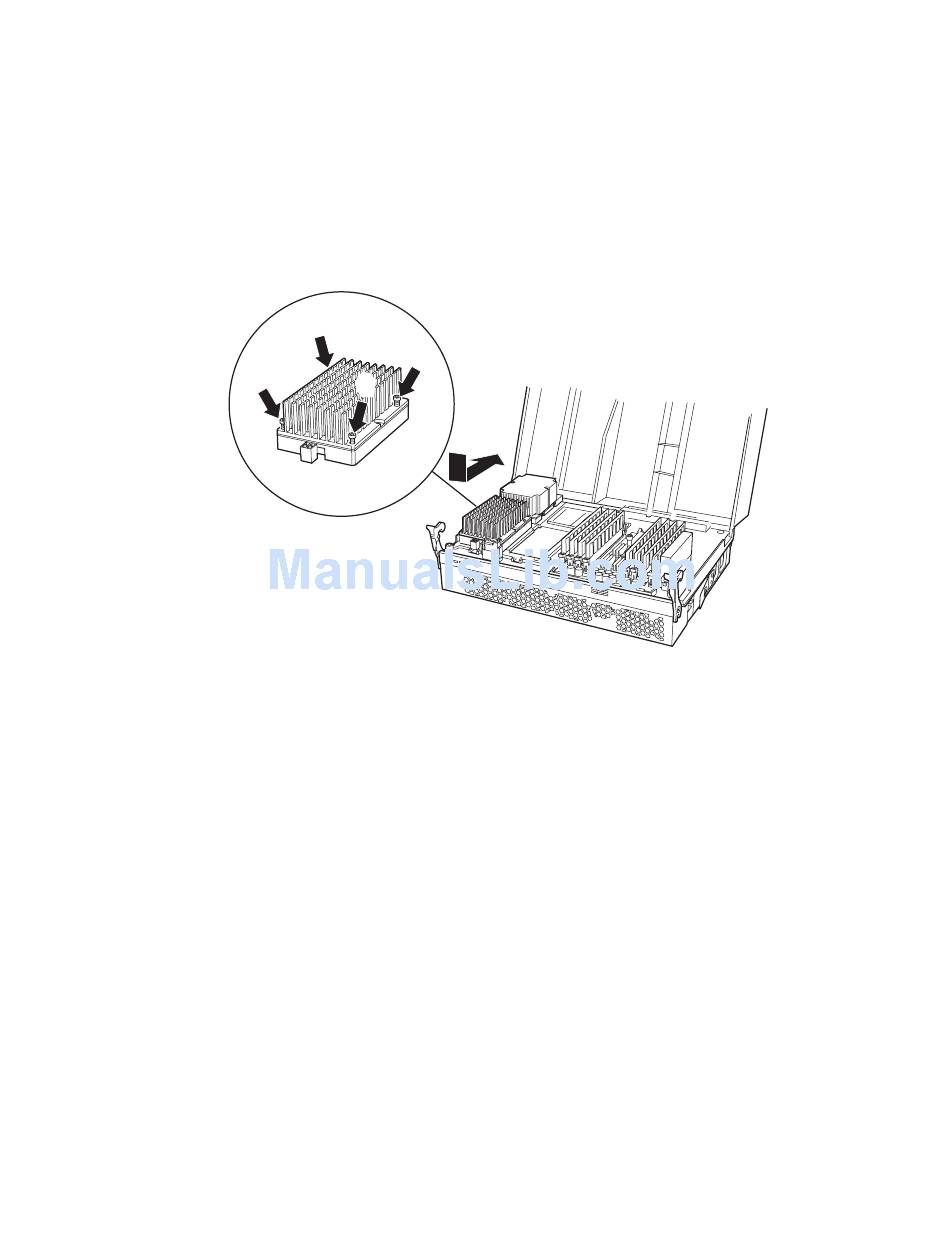

Figure 95. Installing a Power Pod
