Front Panel

The front panel is located to the right of the processor/memory subsystem and provides user
interface for system management via switches and status indicator LEDs. The front panel also
contains the speaker. Figure 3 shows the control buttons and status indicators on the front panel.
Table 3 describes their features.
Table 3. Front Panel Control and Indicator Description
Item Feature
Switches
A System ID Switch
B Assert SDINT (System
Diagnostic Interrupt)
Switch
C Reset switch
D Power switch
Intel® SR870BN4 Server System Product Guide

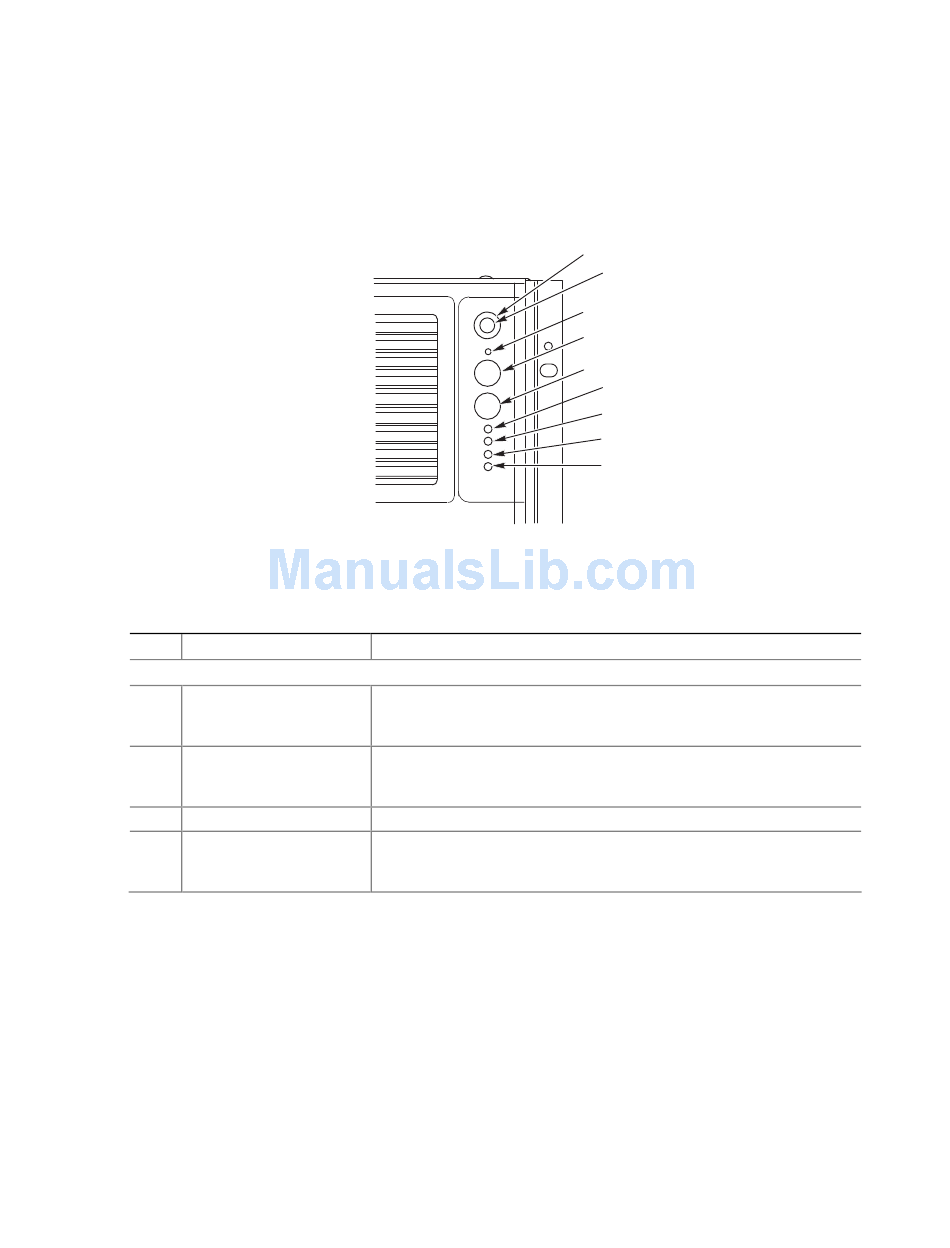

Figure 3. Front Panel Controls and Indicators
Description
Toggle switch for blue System ID LEDs (the front panel system ID LED
is located inside the system ID switch). See E below for description of
LED operation.
Asserts SDINT. This switch is accessible through a small opening and
requires a narrow tool to activate.
Resets the system.
Toggles system power. A delay of ~5 seconds is required between
pressing the power switch to power down and then power up the
system.
A
E
B
C
D
F
G
H
I
OM12886
continued
21
