Peripheral Bay

CAUTION
Removal of the LS240 and the DVD/CD drives requires removal of the
peripheral bay from the chassis. Therefore, the LS240 and the DVD/CD
drives cannot be hot-swapped. Power must be removed from the system
when installing or removing these drives to avoid component damage.
The peripheral bay consists of two sections:
The hot-swap hard drive bay (upper section) supporting three 1-inch hot-swap Ultra320 SCSI
hard disk drives (A in Figure 4).
The removable media drive bay (lower section) supporting:
- One ½-inch IDE DVD/CD-ROM (B in Figure 4)
- One ½-inch IDE LS-240 drive (C in Figure 4) or removable EMI Filler Panel (D in Figure 4).
Intel® SR870BN4 Server System Product Guide
A
B
C
D

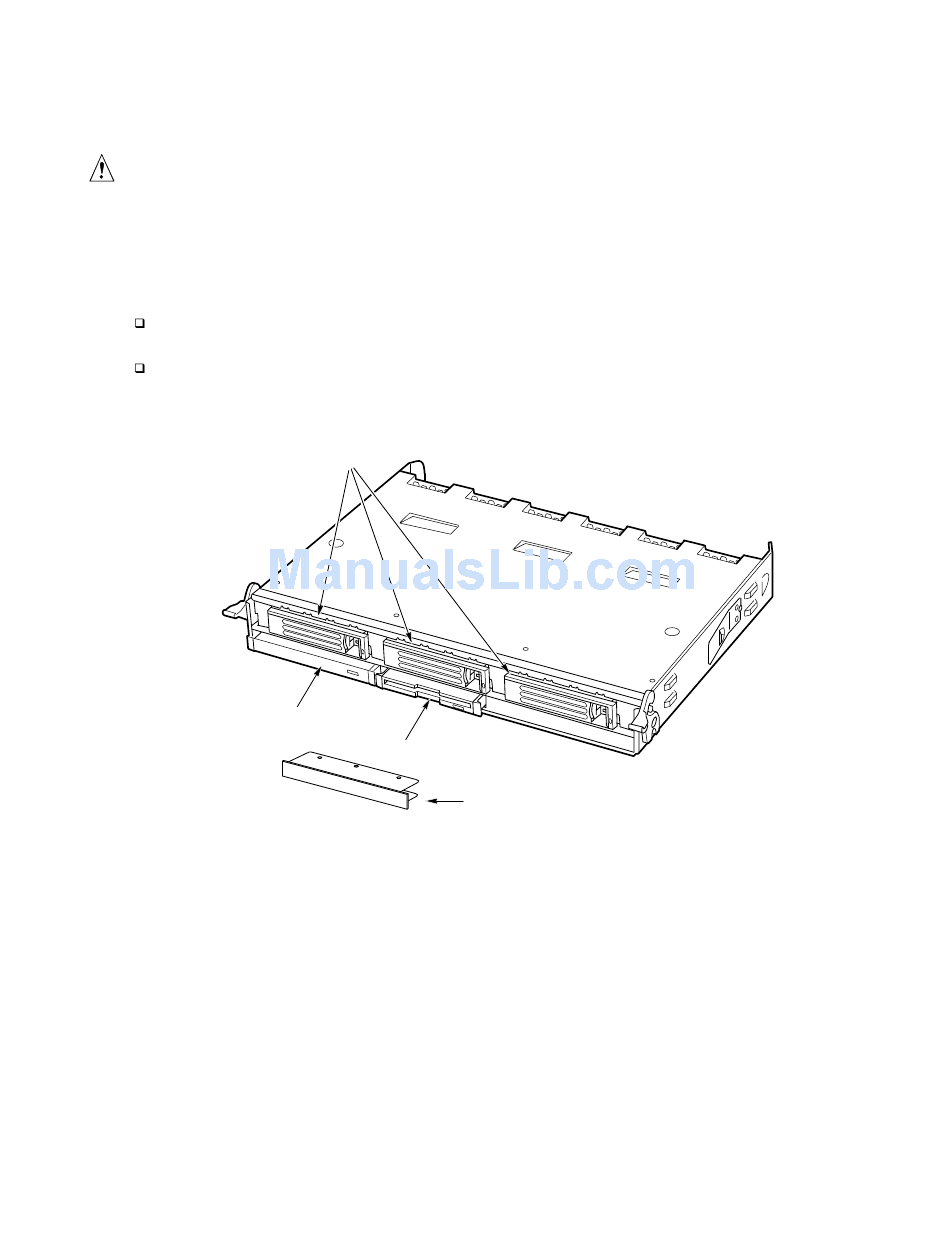

Figure 4. Peripheral Bay
TP00229
