Page 1 ® Intel Server System SR1625UR Service Guide ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/ Products Intel Order Number E52881-005...
Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
Page 3: Preface
Preface About this Manual ® Thank you for purchasing and using the Intel Server System SR1625UR. This manual is written for system technicians who are responsible for troubleshooting, upgrading, and repairing this server system. This document provides reference information, feature information, and step by step instructions on how to add and replace components on the server system.
Page 4 ® Intel Server System SR1625UR Service Guide...
Page 5: Safety Information
Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit 3.0 CD and/or at http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
Page 6 重要安全指导 ® Intel Server System SR1625UR Service Guide...
Page 7: Warnings
Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. ® Intel Server System SR1625UR Service Guide...
Page 8 ® viii Intel Server System SR1625UR Service Guide...
Page 9: Table Of Contents
Active Midplane ......................28 Hot-swap SAS/SATA Backplane ..................29 RAID Support ........................30 Advanced Management Options ..................30 Intel® Remote Management Module 3 ................30 Rack Mount Options ......................31 Chapter 3: Hardware Installations and Upgrades ..........33 Before You Begin .........................33 Tools and Supplies Needed ..................33 ®...
Page 10 Installing and Removing the I/O Expansion Module ............64 Installing the I/O Expansion Module ................64 Removing the I/O Expansion Module(s) ..............65 ® Installing and Removing the Intel Remote Management Module 3 ........66 ® Intel Server System SR1625UR Service Guide...
Page 11 Removing and Installing the Midplane Board ..............70 Removing the Midplane Board ..................70 Installing the Midplane Board ..................71 ® Installing and Removing the Intel Integrated RAID Activation Key and the RAID Mini DIMM (Active System Only) ....................74 ® Installing the Intel Integrated RAID Activation Key and the RAID Mini-DIMM ...74...
Page 12 Rack Mount Warnings ....................148 Electrostatic Discharge (ESD) ................... 149 Other Hazards ......................149 Deutsch ..........................150 Sicherheitshinweise für den Server ................150 Sicherheitshinweise und Vorsichtsmaßnahmen ............150 Zielbenutzer der Anwendung ..................151 ® Intel Server System SR1625UR Service Guide...
Page 13 Advertencias de alimentacién y eléctricas ..............163 Advertencias sobre el cable de alimentación ............163 Advertencias el acceso al sistema ................164 Advertencias sobre el montaje en bastidor ...............165 Descarga electrostática (ESD) ..................165 Otros riesgos ......................166 ® Intel Server System SR1625UR Service Guide xiii...
Page 14 ® Intel Server System SR1625UR Service Guide...
Page 15 Figure 19. System Cable Routing ................... 34 Figure 20. Front Bezel Supporting the Standard Control Panel ..........39 ® Figure 21. Front Bezel Supporting the Intel Local Control Panel .......... 39 Figure 22. Front Bezel Supporting the Mini Control Panel ............39 Figure 23.
Page 16 Figure 51. Installing the I/O Expansion Module to the Server System........65 Figure 52. Removing the I/O Expansion Module from the Server System ......66 ® Figure 53. Removing the Intel RMM3 filler panel..............67 ® Figure 54. Installing the Intel RMM3 to the bracket ..............
Page 17 List of Tables Table 1. Server System References ..................3 ® Table 2. Intel Server System SR1625UR Feature Summary ..........6 Table 3. NIC LED Descriptions ....................26 Table 4. Setup Menu Key Use ....................95 Table 5. Power Supply input Voltages ..................103 Table 6.
Page 18 ® xviii Intel Server System SR1625UR Service Guide...
Page 19: Chapter 1: Server System Contents And References
Intel Server System SR1625UR (Passive system) ® • Intel Server System SR1625URSAS (Active system) ® Unless noted otherwise, all references to the Intel Server System SR1625UR refer to both product codes. Server System Contents ® ® The Intel Server System SR1625UR ships with the Intel Server Board S5520UR.
Page 20: Intel Server System Sr1625Ursas Contents
® • Intel System Management Software DVD ® Intel Server System SR1625URSAS Contents ® Your Intel Server System SR1625URSAS (active system) ships with the following items: ® • Intel Server Board S5520UR, installed in the server system • One 650-W power supply, installed in the server system •...
Page 21: Additional Information And Software
Server System SR1625UR Quick Start User's Guide product and you need to Available in the product box assemble your system and install components Accessories or other Intel Spares, Parts List and Configuration Guide server products Available at: http://www.intel.com/p/en_US/support/highlights/server/s5520uror by using the Server Configurator Tool Available at: http://serverconfigurator.intel.com/default.aspx...
Page 22 To make sure your system Power Budget Analysis Tool falls within the allowed Available at: power budget http://www.intel.com/p/en_US/support/highlights/server/s5520ur ® For software to manage Intel System Management Software ® your Intel server Available at: http://www.intel.com/go/servermanagement/ ® Intel Server System SR1625UR Service Guide...
Page 23: Chapter 2: Server System Features

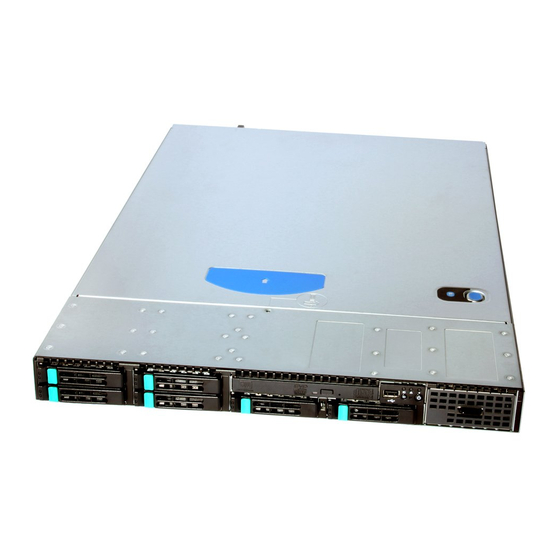

TP02211 ® Figure 1. Intel Server System SR1625UR ® Intel Server System SR1625UR Service Guide...
Page 24: Server System Feature Overview
Support for one or two Intel Xeon Processors in FC-LGA 1366 Socket B package with up to 95 W Thermal Design Power (TDP) ® • 4.8 GT/s, 5.86 GT/s and 6.4 GT/s Intel QuickPath ® Interconnect (Intel QPI) • EVRD11.1 For a complete list of supported processors, see http://www.intel.com/support/motherboards/server/s5520ur/...
Page 25 • Six Serial ATA (SATA) II connectors • Two I/O module connectors • ® One RMM3 connector to support an optional Intel Remote Management Module 3 • SATA Software 5 Activation Key connector • One SSI-EEB compliant front panel header •...
Page 26 ® Table 2. Intel Server System SR1625UR Feature Summary Feature Description LEDs and displays With Mini control panel: • Power/Sleep • System Status • System Identification ® Intel Light-Guided diagnostic LEDs: • Fan Fault • DIMM Fault • CPU Fault •...
Page 27: Server System Components
Bridge Board Shown) Power Distribution Board M. Fan Assembly Power Supply Modules Midplane Board (Active Version Shown) Server Board Mini Control Panel PCI Riser Assembly Hard Drive Bays Figure 2. Server System Components ® Intel Server System SR1625UR Service Guide...
Page 28: Intel Light-Guided Diagnostics
® Intel Light-Guided Diagnostics The server system contains the following diagnostic LEDs, each providing the following functions: • The System Status LED on the front and back panels (see Figure 3 Figure shows the overall health of the system (green, blinking green, blinking amber, amber, off) .
Page 29: Figure 3. Intel ® Light-Guided Diagnostic Leds - Server Board
CPU 1 DIMM Fault LEDs CPU 2 Fan Fault LED Memory 2 Fan Fault LED CPU 2 DIMM Fault LEDs 5V Standby LED ® Figure 3. Intel Light-Guided Diagnostic LEDs - Server Board ® Intel Server System SR1625UR Service Guide...
Page 30: Figure 4. Intel Light-Guided Diagnostic Leds - Passive Midplane
Fan 3 Fault LED Fan 4 Fault LED Fan 5 Fault LED Fan 6 Fault LED Fan 1 Fault LED ® Figure 4. Intel Light-Guided Diagnostic LEDs - Passive Midplane AF003042 Fan 2 Fault LED Fan 3 Fault LED Fan 4 Fault LED...
Page 31: Figure 6. Intel Light-Guided Diagnostic Leds - Mini Control Panel
AF003044 Status LED System Identification LED ® Figure 6. Intel Light-Guided Diagnostic LEDs - Mini Control Panel ® Intel Server System SR1625UR Service Guide...
Page 32: Server Board Components
Server Board Components This section helps you identify the components and connectors on the server board. AF002696 ® Intel Server System SR1625UR Service Guide...
Page 33: Figure 7. Server Board Connector And Component Locations
® ® 280-pin Intel Adaptive Slot POST Code Diagnostic LEDs Intel RMM3 Header Processor 1 Socket Back Panel I/O Ports System Identification LED G. System Status LED Memory 1 Fan Header Processor 1 Fan Header Processor 1 DIMM slots Processor 2 DIMM slots Processor 2 Socket M.
Page 34: Configuration Jumpers
Configuration Jumpers BIOS Recover J1D4 Normal Recover Password Clear J1E8 Protect Clear BIOS Default J1E7 Normal Default BMC Force Update J1H2 Disable Enable AF002832 ® Intel Server System SR1625UR Service Guide...
Page 35: Figure 8. Configuration Jumpers
If pins 2-3 are jumpered, the system can only boot from EFI- bootable recovery media with the recovery BIOS image. The main system BIOS will not boot. These pins should be jumpered on 1-2 for normal system operation. Figure 8. Configuration Jumpers ® Intel Server System SR1625UR Service Guide...
Page 36: Front Of Server System
• Up to eight 2.5 inch hard drives with the mini control panel. ® • Up to six 2.5 inch hard drives with the standard control panel or the Intel Local Control Panel. For instructions on installing hard drives, see “Installing and Removing a Hot-swap Hard...
Page 37: Control Panel
Drive in the optical drive carrier is NOT hot swappable. For instructions on installing an optical drive, see “Installing and Removing a Slimline Optical Drive” on page To use one of the drives provided by Intel, use the following order codes: • Slimline DVD-ROM Drive: AXXSATADVDROM •...
Page 38: Figure 10. Mini Control Panel
Figure 10. Mini Control Panel Standard Control Panel The following diagram shows the features available on the standard control panel. For instructions on installing the standard control panel, see “Replacing the Control Panel” on page TP02213 ® Intel Server System SR1625UR Service Guide...
Page 39: Figure 11. Standard Control Panel
Figure 11. Standard Control Panel ® Intel Local Control Panel ® The following diagram shows the features available on the Intel Local Control Panel. For instructions on installing the standard control panel, see “Replacing the Control Panel” on page ®...
Page 40 Solid green indicates normal operation. Blinking green indicates degraded performance. Solid amber indicates a critical or non-recoverable condition. Blinking amber indicates a non-critical condition. No light indicates POST is running or the system is off. ® Intel Server System SR1625UR Service Guide...
Page 41: Bezels
ASR1550MINBEZ: Black bezel for use with the Mini control panel. • ASR1550BEZ: Black bezel for use with the standard control panel. ® • ASR1550LCDBEZ: Black bezel for use with the Intel Local Control Panel. ® Intel Server System SR1625UR Service Guide...
Page 42: Rear Of Server System
Rear of Server System AF002834 Full-height PCI Add-in Card Slot Power Supply Module 2 Power Supply Module 1 I/O Expansion Modules (Optional) ® Intel Remote Management Module NIC 2 (10/100/1000 Mb) NIC (IOptional) NIC 1 (10/100/1000 Mb) Four USB Ports Video RJ-45 Serial B Connector Figure 13.
Page 43: Back Panel Connectors
Back Panel Connectors Serial Port A (RJ-45) Video USB Ports 0 and 1 USB Ports 2 and 3 NIC 1 (10/100/1000 Mb) NIC 2 (10/100/1000 Mb) Figure 14. Back Panel Connectors ® Intel Server System SR1625UR Service Guide...
Page 44: Table 3. Nic Led Descriptions
No network connection Solid Green Network connection in place Blinking Green Transmit/receive activity Left 10 Mbps connection (if right LED is on or blinking) Solid Green 100 Mbps connection Solid Amber 1000 Mbps connection ® Intel Server System SR1625UR Service Guide...
Page 45: Sas/Sata Midplanes
Power Connector Fan 4 Connector Fan 6 Connector Fan 3 Connector Fan 5 Connector Fan 1 Connector SAS/SATA Connectors Fan 2 Connector Bridge Board Connector Backplane Connector Figure 15. Passive SATA/SAS Midplane Components ® Intel Server System SR1625UR Service Guide...
Page 46: Active Midplane
Mini-DIMM Connector Fan 1 Power Connector Fan 6 Power Connector Fan 2 Power Connector Fan 5 Power Connector RAID Activation Key Connector Bridge Board Connector Backplane Connector Figure 16. Active SAS/SAS RAID Midplane Components ® Intel Server System SR1625UR Service Guide...
Page 47: Hot-Swap Sas/Sata Backplane
Mini Control Panel Connector Figure 17. Hot-swap SAS/SATA Backplane Front Side Components AF002810 USB Connector Card Edge Connectors to Midplane Power Connector 10-pin Control Panel Connector Figure 18. Hot-swap SAS/SATA Backplane Back Side Components ® Intel Server System SR1625UR Service Guide...
Page 48: Raid Support
To enable RAID 5, this activation key is placed on the SATA Key connector that ® is located at the left side of the server board. For information on installing the Intel RAID Activation Key AXXRAKSW5 accessory to enable RAID 5, see “Installing the...
Page 49: Rack Mount Options
(19 inches by upto 30 inches deep) EIA-310D compatible server cabinet. When installing the chassis into a rack, Intel recommends you install systems from the bottom of the rack to the top. In other words, install the first system in the rack into the bottom position of the rack, the second system in the second position from the bottom, and so on.
Page 50 ® Intel Server System SR1625UR Service Guide...
Page 51: Chapter 3: Hardware Installations And Upgrades
Anti-static wrist strap and conductive foam pad (recommended) System References All references to left, right, front, top, and bottom assume the reader is facing the front of the server system as it would be positioned for normal operation. ® Intel Server System SR1625UR Service Guide...
Page 52: Cable Routing
Use caution to make sure no cables or wires are pinched and that the airflow from the fans is not blocked. Use the following figures to determine the correct cable routing. Intel® Remote Management Module 3 (optional) Server I/O Module (optional)
Page 53: Removing And Installing From A Rack
Removing and Installing from a Rack ® ® To install the Intel Server System SR1625UR in a rack, three Intel rack options are available: • Fixed mount relay rack/cabinet mount kit This rack option requires the system to removed from the rack before servicing.
Page 54: Fixed Bracket Rack Mount Removal
16. In a similar manner to steps 13 through 15, install a screw through a slot in the outer rail and into the rear-most threaded hole in the front bracket. Firmly tighten this screw. 17. Firmly tighten the front screw installed loosely in step 15. ® Intel Server System SR1625UR Service Guide...
Page 55: Basic Rail Rack Mount Removal
5. Insert the inner rails over the server chassis sidewall studs. 6. Slide the inner rails toward the front of the server chassis. 7. Secure the inner rails with one #6-32 x 1/4 screw for each rail. ® Intel Server System SR1625UR Service Guide...
Page 56: Tool-Less Rail Rack Mount Servicing
Note: Beware of cables when re-installing the system into the rack so that the cables do not get pulled or interfered with. Removing and Installing the Front Bezel ® The front bezels are available as optional accessories for the Intel Server System SR1625UR. The following three front bezel options are available: •...
Page 57: Removing The Front Bezel
TP02220 Figure 20. Front Bezel Supporting the Standard Control Panel TP02221 ® Figure 21. Front Bezel Supporting the Intel Local Control Panel TP02222 Figure 22. Front Bezel Supporting the Mini Control Panel Removing the Front Bezel If your system includes a front bezel, follow these steps to remove the bezel: 1.
Page 58: Installing The Front Bezel
Installing the Front Bezel The front bezel is optional. If your system includes the bezel for either the mini control ® panel, standard control panel or Intel Local Control Panel, follow these steps to install the bezel: Note: Before installing the bezel, you must install the rack handles. For instructions, see “Installing the Rack Handles”...
Page 59: Removing And Installing The System Cover
25), slide the top cover back until it stops (see letter "C" in Figure 25). 3. Insert your finger in the notch (see letter “D” in Figure 25) and lift the cover upward to remove it. ® Intel Server System SR1625UR Service Guide...
Page 60: Installing The Server System Cover
2. Slide the cover forward until it clicks into place (see letter “A” in Figure 26). 3. (Optional) Insert the security screw at the center of the top cover (see letter “B” in Figure 26). TP02219 Figure 26. Installing the Server System Cover ® Intel Server System SR1625UR Service Guide...
Page 61: Removing And Installing The Pci Riser Assembly
— If you need to add or replace a PCI add-in card, see “Installing and Removing a PCI Add-in Card” on page — If you need to add or replace a PCI riser connector, see “Replacing the PCI Riser Card” on page ® Intel Server System SR1625UR Service Guide...
Page 62: Installing The Pci Riser Assembly
3. Press down uniformly until the two hooks on the rear of the PCI riser assembly engage the server system back panel slots. The riser cards will seat into the matching sockets on the server board. ® Intel Server System SR1625UR Service Guide...
Page 63: Replacing The Pci Riser Card
7. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly” on page 8. Connect any cables to add-in cards that require them. See your add-in card documentation for information and add-in card requirements. ® Intel Server System SR1625UR Service Guide...
Page 64: Installing The Replacement Pci Express* Riser Card
The following sections describe how to install and remove a PCI add-in card. Installing a PCI Add-in Card To install a PCI add-in card, follow these steps: 1. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser Assembly” on page ® Intel Server System SR1625UR Service Guide...
Page 65: Removing A Pci Add-In Card
2. Remove the screw securing the add-in card to the add-in card slot (see letter “A” in Figure 32) . 3. Remove the PCI add-in card from the riser card connector (see letter “B” in Figure 32). ® Intel Server System SR1625UR Service Guide...
Page 66: Removing And Installing The Processor Air Duct
To remove the processor air duct, follow these steps: 1. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser Assembly” on page 2. Lift the processor air duct from its location over the two processor sockets. ® Intel Server System SR1625UR Service Guide...
Page 67: Installing The Processor Air Duct
34). The front edge of the air duct should align correctly with the notches on the fan module. Use caution not to pinch or disengage cables that may be near or under the air duct. ® Intel Server System SR1625UR Service Guide...
Page 68: Installing And Removing Memory
To install DIMMs, follow these steps: 1. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser Assembly” on page 2. Remove the processor air duct. For instructions, see “Removing the Processor Air Duct” on page ® Intel Server System SR1625UR Service Guide...
Page 69: Figure 35. Installing The Memory
8. When the DIMM is correctly positioned, push down on the top edge of the DIMM until the retaining clips snap into place (see letter “C” in Figure 35). 9. Make sure the clips are firmly in place (see letter “D” in Figure 35). ® Intel Server System SR1625UR Service Guide...
Page 70: Removing Dimms
5. Push the lever handle down and away from the socket to release it (see letter “A” in Figure 36). 6. Rotate the lever open all the way (see letter “B” in Figure 36). ® Intel Server System SR1625UR Service Guide...
Page 71: Figure 36. Lifting The Processor Socket Lever
Note: Do not touch the orientation posts on the socket; they are very sensitive and easily damaged. Note: Retain the protective socket cover for use when removing a processor that will not be replaced. ® Intel Server System SR1625UR Service Guide...
Page 72: Figure 38. Removing The Protective Socket Cover
11. Orient the processor with the socket such that the orientation notches on the processor align with the two orientation posts on the socket, and insert the processor into the socket (see Figure 40). ® Intel Server System SR1625UR Service Guide...
Page 73: Installing The Heatsink
Note: New unused heatsinks have adequate TIM on the bottom. If you are reusing a heatsink from replacing a processor, make sure there is adequate TIM present on the heatsink to support processor cooling. ® Intel Server System SR1625UR Service Guide...
Page 74: Figure 42. Installing The Heatsink
Repeat steps 4a through 4c by giving each screw two rotations each time until all screws are lightly tightened upto a maximum of 8 inch-lbs torque. AF002841 Figure 42. Installing the Heatsink ® Intel Server System SR1625UR Service Guide...
Page 75: Removing The Heatsink
Lift the heatsink from the processor. If it does not pull up easily, twist the heatsink again. Do not force the heatsink from the processor. Doing so could damage the processor. ® Intel Server System SR1625UR Service Guide...
Page 76: Removing The Processor
6. Open the CPU load plate (see Figure 37). 7. Remove the processor. 8. If installing a replacement processor, see “Installing the Processor” on page Otherwise, install the protective socket cover over the empty processor socket. ® Intel Server System SR1625UR Service Guide...
Page 77: Installing And Removing A Hot-Swap Hard Drive
When the system is configured with the mini control panel, up to eight hot-swap SAS or ® SATA drives can be installed. When configured with the Standard control panel or Intel Local Control Panel, up to six hot-swap SAS or SATA drives can be installed.
Page 78: Figure 45. Removing Drive Blank From Drive Carrier
8. With the black lever held in the fully open position, slide the hard disk assembly into the server system and push all the way until it clicks (see letter “A” in Figure 47). ® Intel Server System SR1625UR Service Guide...
Page 79: Removing A Hot-Swap Sas/Sata Hard Disk Drive
5. With the black lever held in the fully open position, slide the drive carrier into the server system and push all the way until it clicks. 6. Close the lever to lock the drive assembly into place. ® Intel Server System SR1625UR Service Guide...
Page 80: Installing And Removing A Slimline Optical Drive
2. Insert the optical drive tray assembly into the server system opening and push all the way until it stops (see Figure 49). 3. Make sure that the back end of the device plugs into the matching socket on the backplane. ® Intel Server System SR1625UR Service Guide...
Page 81: Removing A Slimline Optical Drive
Figure 50. Removing the Slimline Optical Drive from the Server System 2. Slide the optical drive out (see letter “B” in Figure 3. If no device will be installed in this location, install a filler blank in this location. ® Intel Server System SR1625UR Service Guide...
Page 82: Installing And Removing The I/O Expansion Module
6. First fit the front of the module into the back panel slot(s), and then attach the module to the server board connector and engage the standoffs (see letter “C” in Figure 51). ® Intel Server System SR1625UR Service Guide...
Page 83: Removing The I/O Expansion Module(S)
3. Disconnect the I/O expansion module from the server board connector and the standoffs and remove the module out of the server system (see letter “A” in Figure 52). 4. Remove the standoffs from the server board (see letter “B” in Figure 52). ® Intel Server System SR1625UR Service Guide...
Page 84: Installing And Removing The Intel ® Remote Management Module 3
“Installing the Processor Air Duct” on page 7. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly” on page ® Installing and Removing the Intel Remote Management Module 3 ® Installing the Intel RMM3 ®...
Page 85: Figure 53. Removing The Intel ® Rmm3 Filler Panel
® 3. Squeeze the sides of the Intel RMM3 filler panel to disengage it from the server system back panel and remove it (see Figure 53). AF002997 ® Figure 53. Removing the Intel RMM3 filler panel ® 4. Attach the Intel...
Page 86: Figure 55. Connecting The Intel Rmm3 Cable
Note: Cable connectors are keyed and can only go in one way. AF002949 ® Figure 55. Connecting the Intel RMM3 cable 6. Connect the opposite end of the cable to the RMM3 connector on the server board (see letter “A” in Figure 56).
Page 87: Removing The Intel ® Rmm3
RMM3 from the connector on the server board (see letter “B” Figure 57) and remove the module out of the server system (see letter “C” in Figure 57). AF002858 ® Figure 57. Removing the Intel RMM3 from the Server System ® Intel Server System SR1625UR Service Guide...
Page 88: Removing And Installing The Midplane Board
RMM3 filler panel into the system back panel (see Figure 58). AF002998 ® Figure 58. Installing the Intel RMM3 filler panel 6. Install the processor air duct. For instructions, see “Installing the Processor Air Duct” on page 7. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly”...
Page 89: Installing The Midplane Board
3. Slide the midplane board in the direction shown (see letter “C” in Figure 60) and insert the midplane into the backplane connector. 4. Tighten the thumbscrew (see letter “D” in Figure 60). ® Intel Server System SR1625UR Service Guide...
Page 90: Figure 60. Installing The Midplane Board Into The Server System
Figure 60. Installing the Midplane Board into the Server System ® 5. Install integrated RAID if necessary. For instructions, see “Installing the Intel Integrated RAID Activation Key and the RAID Mini-DIMM” on page 6. Connect cables as necessary to the midplane board.
Page 91: Figure 61. Installing The Sata Cables
9. Install the processor air duct. For instructions, see “Installing the Processor Air Duct” on page 10. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly” on page ® Intel Server System SR1625UR Service Guide...
Page 92: (Active System Only)
® Installing and Removing the Intel Integrated RAID Activation Key and the RAID Mini DIMM (Active System Only) ® Installing the Intel Integrated RAID Activation Key and the RAID Mini-DIMM ® To install the Intel Integrated RAID Activation Key and the RAID mini-DIMM, follow these steps: 1.
Page 93: Removing The Intel ® Integrated Raid Activation Key And The Raid Mini-Dimm
Removing the Intel Integrated RAID Activation Key and the RAID Mini-DIMM ® To remove the Intel Integrated RAID Activation Key and the RAID mini-DIMM, follow these steps: 1. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser Assembly”...
Page 94: Installing And Removing The Raid Battery Backup Unit (Active System Only)
Intel RAID Activation Key Socket AF002862 ® Figure 63. Removing the Intel Integrated RAID Activation Key and the RAID Mini- DIMM 6. Install the processor air duct. For instructions, see “Installing the Processor Air Duct” on page 7. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly”...
Page 95: Removing The Raid Battery Backup Unit
4. Remove the cable from the rear of the RAID battery backup unit and the midplane board (see letter “A” in Figure 65). 5. Slide the RAID battery backup unit forward and lift from the server system (see letter “B” in Figure 65). ® Intel Server System SR1625UR Service Guide...
Page 96: Removing And Installing The Server Board
“Removing the Midplane Board” on page 5. Remove the system fan assembly. For instructions, see “Removing the System Fan Assembly” on page 6. Disconnect all power cables coming from the power supply to the server board. ® Intel Server System SR1625UR Service Guide...
Page 97: Installing The Server Board
“Removing DIMMs” on page 52 “Removing the Heatsink” on page 8. Remove the I/O expansion module, if installed. ® 9. Remove the Intel RMM3, if installed. 10. Remove the nine screws from the server board (see letter “A” in Figure 66) and lift the server board from the server system (see letter “B”...
Page 98: Figure 67. Installing The Server Board
9. If necessary, install the I/O expansion module. For instructions, see “Installing the I/O Expansion Module” on page ® ® 10. If necessary, install the Intel RMM3. For instructions, see “Installing the Intel RMM3” on page 11. Connect SATA cables to the server board if applicable.
Page 99: Replacing The Backup Battery
4. Insert the tip of a small flat bladed screwdriver, or an equivalent, under the tab in the plastic retainer. Gently push down on the screwdriver to lift the battery. 5. Remove the battery from its socket. ® Intel Server System SR1625UR Service Guide...
Page 100: Replacing Or Adding A Power Supply
To replace the power supply, follow these steps: 1. Do one of the following: — If a filler panel is installed, use the finger hole to remove the filler panel (see Figure 69). ® Intel Server System SR1625UR Service Guide...
Page 101: Figure 69. Removing Power Supply Filler Panel From The Server System
70) and remove the power supply module by pulling it out by the handle (see letter “B” in Figure 70). TP02244 Figure 70. Removing Power Supply Module from the Server System 2. Do one of the following: ® Intel Server System SR1625UR Service Guide...
Page 102: Replacing The Power Distribution Module
6. Remove the screw to release the power distribution board cover (see letter “A” in Figure 72). 7. Lift the power distribution board cover from the server system (see letter “B” in Figure 72). ® Intel Server System SR1625UR Service Guide...
Page 103: Figure 72. Removing The Power Distribution Board Cover
10. Reconnect all the power cables to the server board, midplane and backplane. 11. Reinstall the system fan assembly. For instructions, see “Installing the System Fan Assembly” on page ® Intel Server System SR1625UR Service Guide...
Page 104: Replacing The Control Panel
Note: If you replace the mini control panel, your system is now limited to six hard drives. ® The steps for replacing the standard control panel and the Intel Local Control Panel are nearly identical. Use the following steps for both varieties of the control panel. Where necessary, differences between the two control panels are noted.
Page 105: Figure 74. Removing Mini Control Panel Module From The Server System
6. Slide the replacement control panel into the server system (see letter “A” in Figure 76) until it clicks into place. 7. Connect the two cables to the USB and control panel connectors on the backplane as shown (see letter “B” in Figure 76). ® Intel Server System SR1625UR Service Guide...
Page 106: Reinstalling The Mini Control Panel
Reinstalling the Mini Control Panel Your system comes with a mini control panel installed. You can remove this and replace it ® with a standard control panel or the Intel Local Control Panel. If your system has a ® standard control panel or the Intel Local Control Panel installed and you wish to reinstall the mini control panel, follow the instructions below.
Page 107: Figure 77. Removing The Standard Control Panel From The Server System
“A” in Figure 78). 6. Install a standard control panel filler or two drive carriers (see letter “B” in Figure 78). AF002953 Figure 78. Installing Mini Control Panel into the Server System ® Intel Server System SR1625UR Service Guide...
Page 108: Replacing A System Fan
Note: The fans that are integrated into the power supply cannot be replaced separately. If one of the fans in the power supply fails, the power supply must be replaced. ® The system fans at the front of the Intel Server System SR1625UR can be individually replaced if one of them fails.
Page 109: Removing And Installing The Fan Assembly
2. If installed, remove the processor air duct. For instructions, see “Removing the Processor Air Duct” on page 3. Remove the bridge board. For instructions, see step 4 in “Removing the Midplane Board” on page ® Intel Server System SR1625UR Service Guide...
Page 110: Installing The System Fan Assembly
To install the system fan assembly, follow these steps: 1. Lower the system fan assembly into place (see letter “A” in Figure 82) and slide it to the right (see letter “B” in Figure 82). ® Intel Server System SR1625UR Service Guide...
Page 111: Figure 82. Installing The System Fan Assembly
Board” on page 4. Install the processor air duct. For instructions, see “Installing the Processor Air Duct” on page 5. Install the PCI riser assembly. For instructions, see “Installing the PCI Riser Assembly” on page ® Intel Server System SR1625UR Service Guide...
Page 112: Installing And Removing The Rack Handles
Removing the Rack Handles Remove the two screws holding the rack handle in place, and remove the rack handle from the server system as shown in Figure AF000378 Figure 84. Removing the Rack Handle ® Intel Server System SR1625UR Service Guide...
Page 113: Chapter 4: Server Utilities
You can run the BIOS Setup with or without an operating system ® being present. For information about specific BIOS setup screens, see the Intel Server Board S5520UR Technical Product Specification. For a web link to this document, see “Additional Information and Software”...
Page 114 If "No" is selected and the <Enter> key is pressed, or if the <Esc> key is pressed, yor are returned to the screen you were in before <F9> was pressed without affecting any existing field values. ® Intel Server System SR1625UR Service Guide...
Page 115: Upgrading The Bios
Press <F2> Key if you want to run SETUP 2. Write down the current settings in the BIOS Setup program. Note: Do not skip step 2. You will need these settings to configure your server at the end of the procedure. ® Intel Server System SR1625UR Service Guide...
Page 116: Upgrading The Bios
3. Locate the Password Clear jumper block at board postion J1E8. 4. Move the jumper from the normal operation position, that is, Password Clear Protect position (covering pins 1 and 2) to the Password Clear Erase position (covering pins 2 and 3). ® Intel Server System SR1625UR Service Guide...
Page 117: Figure 85. Password Clear Jumper
6. Move the Password Clear jumper back to the Password Clear Protect position (covering pins 1 and 2). 7. Close the server system. 8. Power up the server. The password is now cleared and can be reset by going into the BIOS setup. ® Intel Server System SR1625UR Service Guide...
Page 118: Restoring The Bios Defaults
6. Return the BIOS Default jumper to the normal position (covering pins 1 and 2). 7. Close the server system. 8. Power up the system. The BIOS defaults settings are now restored and can be reset by going into the BIOS setup. ® Intel Server System SR1625UR Service Guide...
Page 119: Appendix A: Technical Reference
2. Maximum input current at high input voltage range is measured at 180 VAC, at maximum load. 3. This is not to be used for determining agency input current markings. 4. Maximum rated input current is measured at 100 VAC and 200 VAC. ® Intel Server System SR1625UR Service Guide...
Page 120: 650-W Single Power Supply Output Voltages
Warning: Do not exceed a combined power output of 90 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 90 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction. ® Intel Server System SR1625UR Service Guide...
Page 121: System Environmental Specifications
Acoustic noise Sound Power: 7.0 BA in an idle state at typical office ambient temperature (23 +/- 2°C). ® Electrostatic +/-12 KV except I/O port +/- 8 KV per Intel Environment test specification. discharge (ESD) System Cooling 2550 BTU/Hr Requirement in BTU/Hr ®...
Page 122 ® Intel Server System SR1625UR Service Guide...
Page 123: Appendix B: Intel Server Issue Report Form
® Appendix B: Intel Server Issue Report Form Issue Report Form (Rev 3.6) Note: Filling out this form completely is required for any escalation. =============================================================== Customer Contact Information: Customer Support Case #: =============================================================== ® Intel Server Board or System: (Example : S5000PSL or SR6850HW4)
Page 124 Thermal Solution Processor 1 Processor 2 Processor 3 Processor 4 Thermal solution (Heatsink) examples: (1U, Passive w/air ducting, Active w/fan, etc.) =============================================================== Memory: Manufacturer Part Number DRAM Part Number On Intel tested list? ® Intel Server System SR1625UR Service Guide...
Page 125 Operating System Information (Example: RedHat* Enterprise Linux, Microsoft* Windows* Server 2003, Service pack 1, OEM CD): Manufacturer: Version: Language version (English, Arabic, Chinese (Simplified)): Service Pack Level or Kernel Revision: Distribution (OEM/Retail): =============================================================== ® Intel Server System SR1625UR Service Guide...
Page 126 ® Intel RAID Controller: (Example SRCU42E) RAID controller part number (PBA number): RAID controller firmware version: Has the latest RAID firmware been tried? (Yes/No): RAID driver version: Has the latest RAID driver been tried? (Yes/No): RAID volumes configuration (disks & RAID level):...
Page 127 =============================================================== Issue impact statements: Do you have any potential Intel system, or component purchases that this issue is holding up? If yes, please provide a brief description below. Do you have systems already purchased that are not being delivered to your customers because of this issue? If yes, please provide a brief description below.
Page 128 ® Intel Server System SR1625UR Service Guide...
Page 129: Appendix C: Led Decoder
The two are concatenated as ACh. Table 8. POST Progress Code LED Example Upper Nibble LEDs Lower Nibble LEDs LEDs LED #7 LED #6 LED #5 LED #4 LED #3 LED #2 LED #1 LED #0 Status Result ® Intel Server System SR1625UR Service Guide...
Page 130: Intel ® Server System Sr1625Ur Service Guide
SPD bad so no memory could be detected OxEAh Channel Training Error: DQ/DQS training failed on a channel during memory channel initialization. 0xEBh Memory Test Error: memory failed Hardware BIST. ® Intel Server System SR1625UR Service Guide...
Page 131 0x04h Early processor initialization where system BSP is selected 0x10h Power-on initialization of the host processor (bootstrap processor) 0x11h Host processor cache initialization (including AP) 0x12h Starting application processor initialization 0x13h SMM initialization ® Intel Server System SR1625UR Service Guide...
Page 132 Reserved for PCI bus 0x54h Reserved for PCI bus 0x55h Reserved for PCI bus 0x56h Reserved for PCI bus 0x57h Reserved for PCI bus 0x58h Resetting USB bus 0x59h Reserved for USB devices ® Intel Server System SR1625UR Service Guide...
Page 133 0x91h Disabling the keyboard 0x92h Detecting the presence of the keyboard 0x93h Enabling the keyboard 0x94h Clearing keyboard input buffer 0x95h Instructing keyboard controller to run Self Test (PS2 only) Mouse (USB only) ® Intel Server System SR1625UR Service Guide...
Page 134 Trying to boot device selection 1 0xD2 Trying to boot device selection 2 0xD3 Trying to boot device selection 3 0xD4 Trying to boot device selection 4 0xD5 Trying to boot device selection 5 ® Intel Server System SR1625UR Service Guide...
Page 135 Driver Execution Environment (DXE) Core (not accompanied by a beep code) 0xE4h Entered EFI driver execution (DXE) phase 0xE5h Started dispatching drivers 0xE6h Started connecting drivers DXE Drivers 0xE7h Waiting for user input ® Intel Server System SR1625UR Service Guide...
Page 136 0x31h Crisis recovery has been initiated by software (corrupt flash) 0x34h Loading crisis recovery capsule 0x35h Handing off control to the crisis recovery capsule 0x3Fh Unable to complete crisis recovery capsule ® Intel Server System SR1625UR Service Guide...
Page 137: Appendix D: Getting Help
— A searchable knowledgebase to search for product information throughout the support site 2. If you are still unable to obtain a solution to your issue, send an email to Intel’s technical support center using the online form available at http://supportmail.intel.com/scripts-emf/welcome.aspx...
Page 138 ® Intel Server System SR1625UR Service Guide...
Page 139: Appendix E: Regulatory And Certification Information
(or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.
Page 140: Product Emc Compliance - Class A Compliance
AS/NZS 3548 Emissions (Australia/New Zealand) • BSMI CNS13438 Emissions (Taiwan) • GOST R 29216-91 Emissions (Russia) • GOST R 50628-95 Immunity (Russia) • Belarus Certification (Belarus) • Ukraine Certification (Ukraine) • KCC Certification (EMI) (Korea) ® Intel Server System SR1625UR Service Guide...
Page 141: Product Ecology Compliance
Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide regulatory requirements. A Material Declaration Data Sheet is available for Intel products. For more reference on material restrictions and compliance you can view Intel's Environmental Product Content Specification at http://supplier.intel.com/ehs/environmental.htm.
Page 142: Product Regulatory Compliance Markings
Product Regulatory Compliance Markings This Intel Server Chassis product if provided with the following regulatory and safety markings. In the event there is no room for a marking(s) on the chassis, the information is provided here in this guide. Table 10. Product Regulatory Compliance Markings...
Page 143 GOST R Marking Russia KCC Mark (Korean Korea Communications Comission Belarus Safety Belarus Compliance Mark Waste of Electronic Europe and Electrical Equipment Recycling Mark China Restriction of China Hazardous Substance Environmental Friendly Use Period Mark ® Intel Server System SR1625UR Service Guide...
Page 144 This notice is required by California Code of Regulations, Title 22, Division 4.5, and Chapter 33: Best Management Practices for Perchlorate Materials. This product may include a battery which contains Perchlorate material. ® Intel Server System SR1625UR Service Guide...
Page 145 "WARNING:" Proper Ground "Apparaten skall anslutas till jordat uttag, när Outlet den ansluts till ett nätverk." "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan." "Connect only to a properly earth grounded outlet." Safety Stand-by power ® Intel Server System SR1625UR Service Guide...
Page 146: Rack Mount Installation Guidelines
Location in accordance with articles 110-16, 110-17, and 110-18 of the National Electric Code, ANSI/NFPA 70. The DC source must be electrically isolated by double or reinforced insulation from any hazardous AC source. ® Intel Server System SR1625UR Service Guide...
Page 147: Power Cord Usage Guidelines
Connector, server end: The connectors that plug into the AC receptacle on the server must be an approved IEC (International Electrotechnical Commission) 320, sheet C13, type female connector. • Cord length and flexibility: Cords must be less than 4.5 meters (14.76 feet) long. ® Intel Server System SR1625UR Service Guide...
Page 148: Electromagnetic Compatibility Notices
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions related to the EMC performance of this product, contact: Intel Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124-6497 1-800-628-8686 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 149: Ices-003 (Canada)
Install and use the equipment according to the instruction manual. BSMI (Taiwan) The BSMI Certification Marking and EMC warning is located on the outside rear area of the product. ® Intel Server System SR1625UR Service Guide...
Page 150: Kcc (Korea)
Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel's Web address, please contact your local Intel representative. • Server Chassis: (base chassis is provided with power supply and fans) - UL listed.
Page 151: Appendix F: Installation/Assembly Safety Instructions
5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap attached to chassis ground of the system-any unpainted metal surface-when handling components. 6. Do not operate the system with the chassis covers removed. ® Intel Server System SR1625UR Service Guide...
Page 152 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. ® Intel Server System SR1625UR Service Guide...
Page 153: Deutsch
Anschlußkabel von den I/O Anschlüssen oder Ports ab. 5. Tragen Sie ein geerdetes Antistatik Gelenkband, um elektrostatische Ladungen (ESD) über blanke Metallstellen bei der Handhabung der Komponenten zu vermeiden. 6. Schalten Sie das System niemals ohne ordnungsgemäß montiertes Gehäuse ein. ® Intel Server System SR1625UR Service Guide...
Page 154 Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. ® Intel Server System SR1625UR Service Guide...
Page 155: Français
C'est le câble d'alimentation qui est considéré comme le moyen de se déconnecter du CA. La prise à laquelle le système est branché doit se situer à proximité de l'équipement et être facilement accessible. ® Intel Server System SR1625UR Service Guide...
Page 156 Le microprocesseur et le dissipateur de chaleur peuvent être chauds si le système a été sous tension. Faites également attention aux broches aiguës des cartes et aux bords tranchants du capot. Nous vous recommandons l'usage de gants de protection. ® Intel Server System SR1625UR Service Guide...
Page 157: Español
No intente modificar ni usar el cable de alimentación de corriente alterna, si no corresponde exactamente con el tipo requerido. El número de cables suministrados se corresponden con el número de fuentes de alimentación de corriente alterna que tenga el producto ® Intel Server System SR1625UR Service Guide...
Page 158 4. Inserte el bloqueo de seguridad en el sistema y bloquéelo para impedir que pueda accederse al mismo sin autorización. 5. Conecte todos los cables externos y los cables de alimentación CA al sistema. ® Intel Server System SR1625UR Service Guide...
Page 159 • "Provisto de una toma de tierra correctamente instalada. • "Provisto de espacio suficiente como para acceder a los cables de alimentación, ya que éstos hacen de medio principal de desconexión del sistema. ® Intel Server System SR1625UR Service Guide...
Page 160: Italiano
1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. ® Intel Server System SR1625UR Service Guide...
Page 161 • "Dotata di una presa a muro correttamente installata. • "Dotata di spazio sufficiente ad accedere ai cavi di alimentazione, i quali rappresentano il mezzo principale di scollegamento del sistema. ® Intel Server System SR1625UR Service Guide...
Page 162 ® Intel Server System SR1625UR Service Guide...
Page 163: Appendix G: Safety Information
To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in ® this guide before installing or maintaining your Intel server product. In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes precedence.
Page 164: Intended Application Uses
Conform to local occupational health and safety requirements when moving and lifting equipment. • Use mechanical assistance or other suitable assistance when moving and lifting equipment. • To reduce the weight for easier handling, remove any easily detachable components. ® Intel Server System SR1625UR Service Guide...
Page 165: Power And Electrical Warnings
Do not attempt to modify or use an AC power cord if it is not the exact type required. A separate AC cord is required for each system power supply. ® Some power supplies in Intel servers use Neutral Pole Fusing. To avoid risk of shock use caution when working with power supplies that use Neutral Pole Fusing.
Page 166: System Access Warnings
To avoid risk of potential electric shock, a proper safety ground must be implemented for the rack and each piece of equipment installed in it. ® Intel Server System SR1625UR Service Guide...
Page 167: Electrostatic Discharge (Esd)
Caution: To avoid risk of radiation exposure and/or personal injury: • Do not open the enclosure of any laser peripheral or device • Laser peripherals or devices have are not user serviceable • Return to manufacturer for servicing ® Intel Server System SR1625UR Service Guide...
Page 168: Deutsch
Deutsch Sicherheitshinweise für den Server ® ® Das vorliegende Dokument bezieht sich auf Intel Serverplatinen, Intel Servergehäuse (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten. Lesen Sie diese Dokument daher sorgfältig, ®...
Page 169: Zielbenutzer Der Anwendung
Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. ® Intel Server System SR1625UR Service Guide...
Page 170: Warnungen Zu Netzspannung Und Elektrizität
Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...
Page 171: Warnhinweise Für Den Systemzugang
Gehen Sie bei der Installation von Geräten im Rack immer von unten nach oben vor, und bauen Sie das schwerste Gerät an der untersten Position im Rack ein. Ziehen Sie jeweils immer nur ein Gerät aus dem Rack heraus. ® Intel Server System SR1625UR Service Guide...
Page 172: Elektrostatische Entladungen (Esd)
Inbetriebnahme des Systems ohne Abdeckung kann zur Beschädigung von Systemkomponenten führen. So bringen Sie die Abdeckung wieder an: • Vergewissern Sie sich zunächst, daß Sie keine Werkzeuge oder Teile im Gehäuse vergessen haben. ® Intel Server System SR1625UR Service Guide...
Page 173: Français
® d’installer ou de mettre à jour votre produit serveur Intel En cas de conflit entre les informations fournies dans ce document et celles livrées avec le produit ou publiées sur le site Web pour un produit particulier, la documentation du produit prime.
Page 174: Domaines D'utilisation Prévus
Bien ventilé et à l’écart des sources de chaleur telles que la lumière directe du soleil et les radiateurs. • À l’écart des sources de vibration ou des chocs physiques. • Isolé des champs électromagnétiques importants produits par des appareils électriques. ® Intel Server System SR1625UR Service Guide...
Page 175: Pratiques De Manipulation De L'équipement
Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.
Page 176: Avertissements Sur Le Cordon D'alimentation
Éteignez le système en appuyant sur le bouton d’alimentation. • Déconnectez l’alimentation secteur en débranchant tous les cordons d’alimentation secteur du système ou de la prise murale. • Déconnectez l’ensemble des câbles et lignes de télécommunication qui sont connectés au système. ® Intel Server System SR1625UR Service Guide...
Page 177: Avertissements Sur Le Montage En Rack
étiqueté comme contrôlant toute l’unité, et pas uniquement le ou les serveurs. Pour éviter tout risque d’électrocution, le rack et chaque élément de l’équipement installé dans le rack doivent être correctement reliés à la terre. ® Intel Server System SR1625UR Service Guide...
Page 178: Décharges Électrostatiques (Esd)
Vérifiez tout d’abord que vous n’avez pas oublié d’outils ou de composants détachés à l’intérieur du système. • Vérifiez que les câbles, les cartes d’extension et les autres composants sont correctement installés. • Fixez les panneaux au châssis en suivant les instructions du produit. ® Intel Server System SR1625UR Service Guide...
Page 179: Périphériques Laser
Retournez-les au fabricant en cas de problème. Español Información de seguridad del servidor ® Este documento se aplica a las tarjetas de servidor de Intel , las carcasas de servidor de ® Intel (montaje en bastidor y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento...
Page 180: Aplicaciones Y Usos Previstos
Provista de una toma de corriente alterna correctamente conectada a tierra. • Provista de espacio suficiente para acceder a los cables de la fuente de alimentación ya que constituyen la desconexión principal de la alimentación. ® Intel Server System SR1625UR Service Guide...
Page 181: Manipulacién Del Equipo
CA estén desenchufado antes de abrir la carcasa, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques electricos use precauciónes al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.
Page 182: Advertencias El Acceso Al Sistema
Devuélvala al fabricante para repararla. • Apague el servidor y desconecte todos los cables de alimentación antes de agregar o reemplazar cualquier componente que no es de conexión en funcionamiento. ® Intel Server System SR1625UR Service Guide...
Page 183: Advertencias Sobre El Montaje En Bastidor
Precaución: Las descargas electrostáticas pueden dañar las unidades de disco, las tarjetas y otros componentes. Recomendamos que realice todos los procedimientos en una estación de trabajo protegida contra descargas electrostáticas. En caso de que no haya una ® Intel Server System SR1625UR Service Guide...
Page 184: Otros Riesgos
Compruebe primero que no ha dejado herramientas o piezas sueltas dentro del sistema. • Compruebe que los cables, tarjetas adicionales y otros componentes están instalados correctamente. • Sujete las cubiertas a la carcasa siguiendo las instrucciones del producto. ® Intel Server System SR1625UR Service Guide...
Page 185 Precaución Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare ® Intel Server System SR1625UR Service Guide...
Page 186 ® Intel Server System SR1625UR Service Guide...

Intel SR1625UR - Server System - 0 MB RAM Service Manual

Preface

Safety Information

Chapter 1: Server System Contents and References

Chapter 2: Server System Features

Chapter 3: Hardware Installations and Upgrades

Chapter 4: Server Utilities

Appendix A: Technical Reference

Appendix B: Intel Server Issue Report Form

Appendix C: LED Decoder

Appendix D: Getting Help

Appendix E: Regulatory and Certification Information

Appendix F: Installation/Assembly Safety Instructions

Appendix G: Safety Information

Quick Links

Need help?

Questions and answers

Related Manuals for Intel SR1625UR - Server System - 0 MB RAM

Summary of Contents for Intel SR1625UR - Server System - 0 MB RAM
