Installing the SCSI Backplane Board

1. With the peripheral bay upside down, carefully align the SCSI backplane board (A in
Figure 118) to the mounting tabs (C in Figure 118) in the center of the peripheral bay and the
two alignment pins (B in Figure 118) near the back.
2. Lower the SCSI backplane board over the alignment pins and slide it forward (D in Figure 118.
Installing the SCSI Backplane Board) to engage the board's mounting tabs.
3. Secure the SCSI backplane board in the peripheral bay using the three captive screws (E in
Figure 118. Installing the SCSI Backplane Board). (See "Torque Settings" on page 180.)
4. Install the DVD/CD-ROM and the floppy disk drive carriers in the peripheral bay.
5. Install the peripheral bay in the chassis.
6. Install the hard disk drives in the peripheral bay.
7. Apply power to the system and verify that all peripheral bay components are functioning
properly.
Intel® SR870BN4 Server System Product Guide
C
D

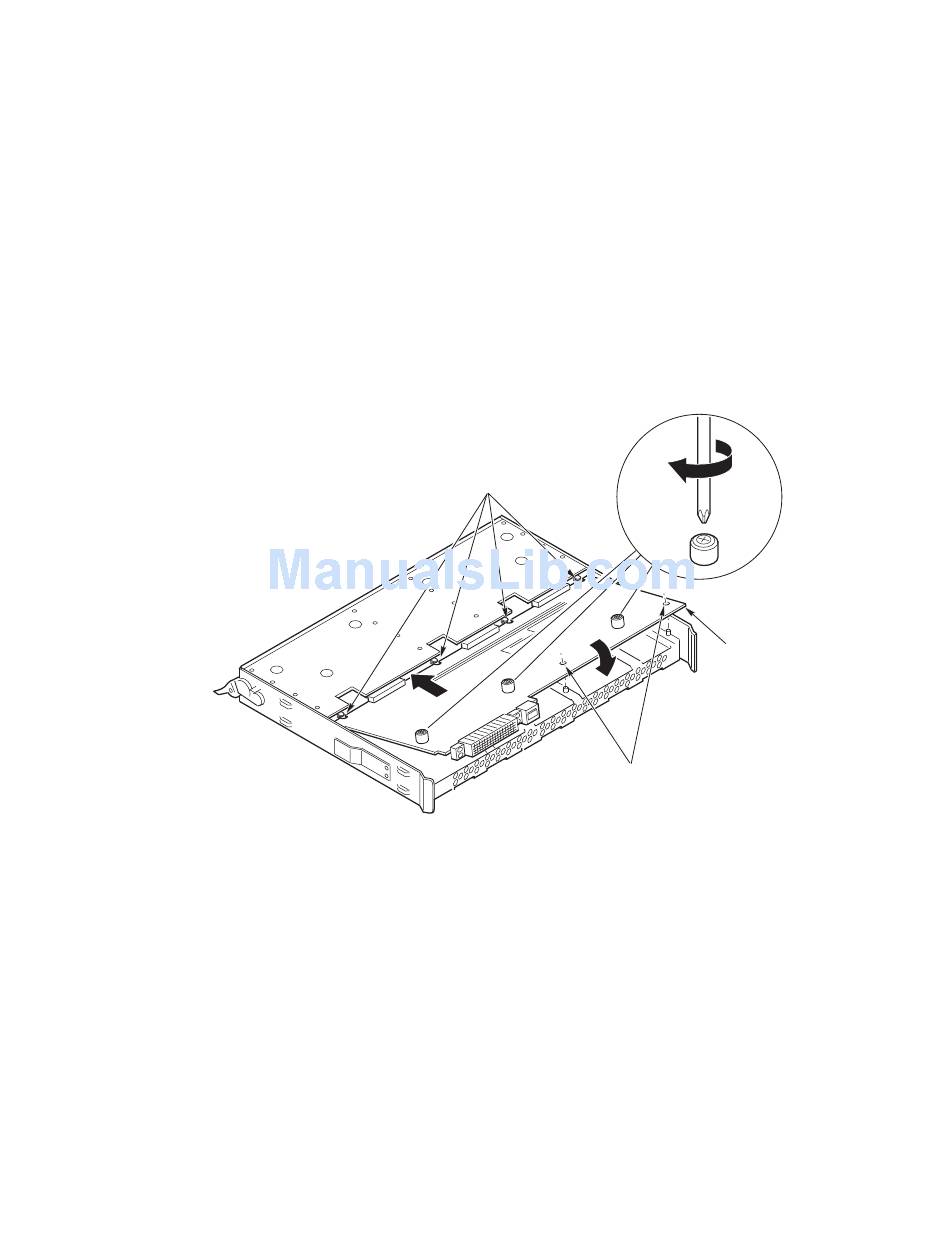

Figure 118. Installing the SCSI Backplane Board
E
A
B
OM12960
