Processor/Memory Module Secondary Side Access

To access the interior of the secondary side of the processor/memory module:
1. Place the module secondary side up on a clean, static-free work surface. (The secondary side is
identified along the top, front edge of the case and on the label.)
2. Unlatch the fasteners by pulling them in the direction of the arrow (A in Figure 87).
3. Open the module as shown (B in Figure 87).
B
A
OM12918

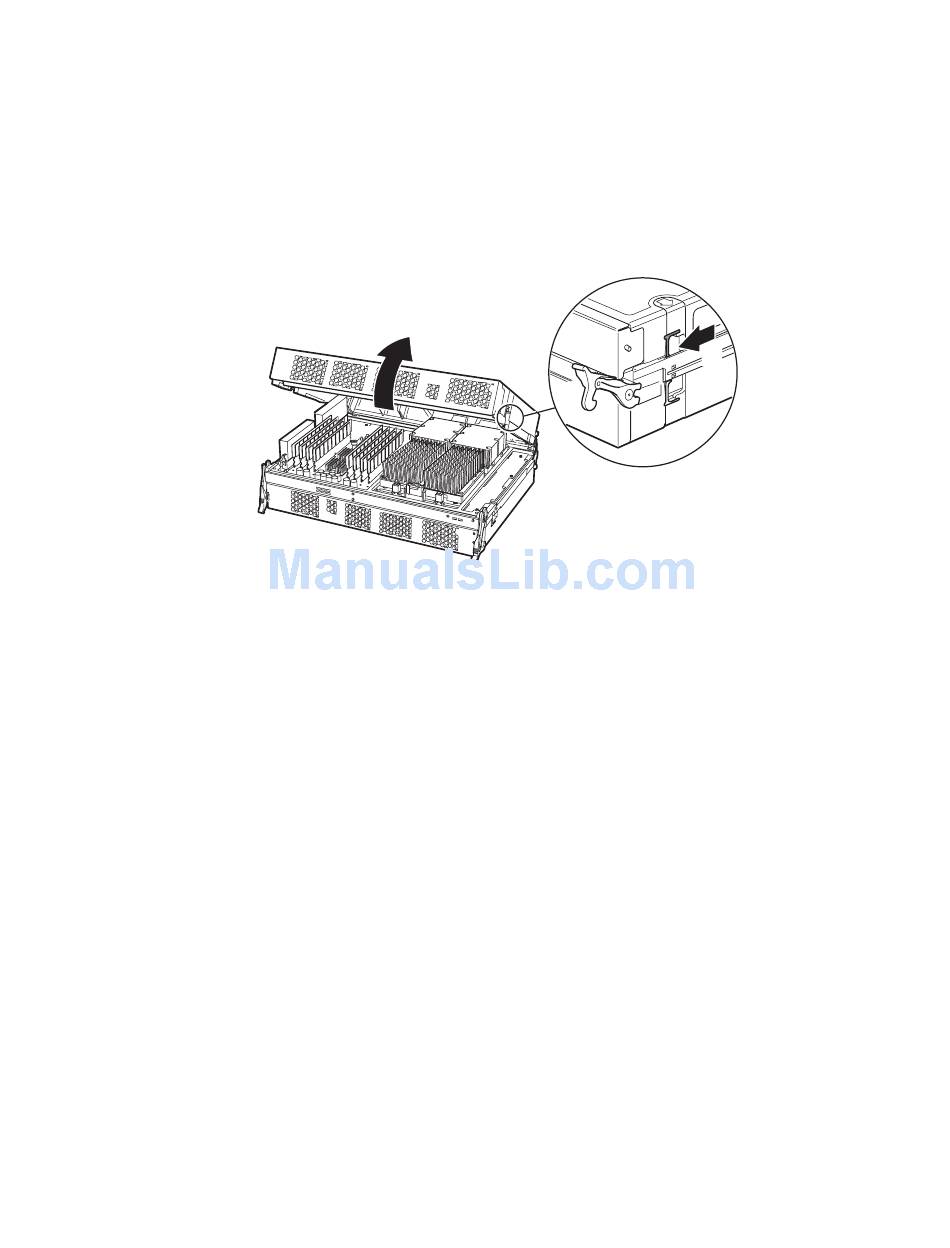

Figure 87. Opening the Secondary Side of the Processor/Memory Module
