Installing the LS-240 Disk Drive in the Drive Carrier

1. Remove the new drive from its protective wrapper, and place it component-side down on a
clean ESD-protected work surface (A in Figure 112).
2. Record the drive model and serial numbers in your equipment log (Appendix B Equipment Log
and Configuration Worksheet).
3. Place the drive (A in Figure 112) and the drive carrier as shown.
4. Assemble the drive in the drive carrier by spreading the sides of the drive carrier (B in
Figure 112) and placing the carrier over the drive.
5. Verify all four of the dimples in the drive carrier (C in Figure 112) align with the corresponding
holes in the drive.
6. Plug the adapter board (D in Figure 112) into the rear of the drive by hooking the end of the
adapter board into the retaining notch in the drive carrier (see arrow E in Figure 112), and
snapping the adapter board into position under the notch at the opposite end (F in Figure 112).
7. Assemble the drive carrier (G in Figure 112) in the EMI shield (H in Figure 112) and verify
that the four metal tabs (two on each side of the EMI shield) are aligned with the notches in the
drive carrier (I in Figure 112).
B
G

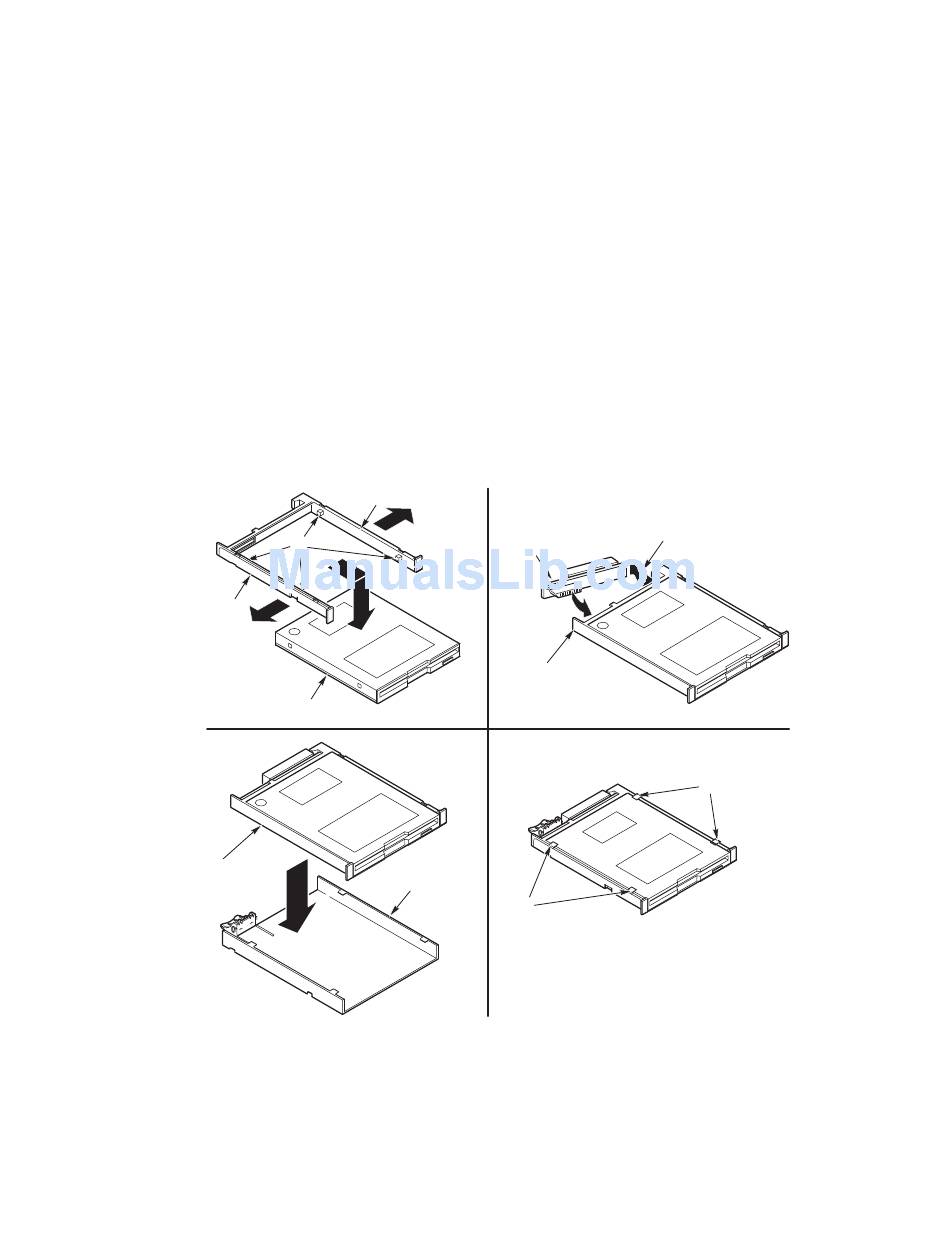

Figure 112. Assembling the LS-240 Floppy Disk Drive and Carrier
