Installing a Power Supply

1. Remove the new power supply from the protective packaging, and place it on a clean
ESD-protected work surface.
2. Record the model and serial numbers of the power supply in your equipment log. See
Appendix B on page 286 for the equipment log.
3. Remove the filler panel from the back panel of the chassis if installed.
4. Slide the replacement power supply partway into the power supply bay (A in Figure 54).
5. Verify that the locking handle (B in Figure 54) is open.
6. With the handle in the open position, slide power supply into the power supply bay until
it stops.
7. As shown by arrow B in Figure 54, rotate the handle to lock the power supply into place.
8. Check the new power supply's LEDs to verify proper power supply function.
B
170
A

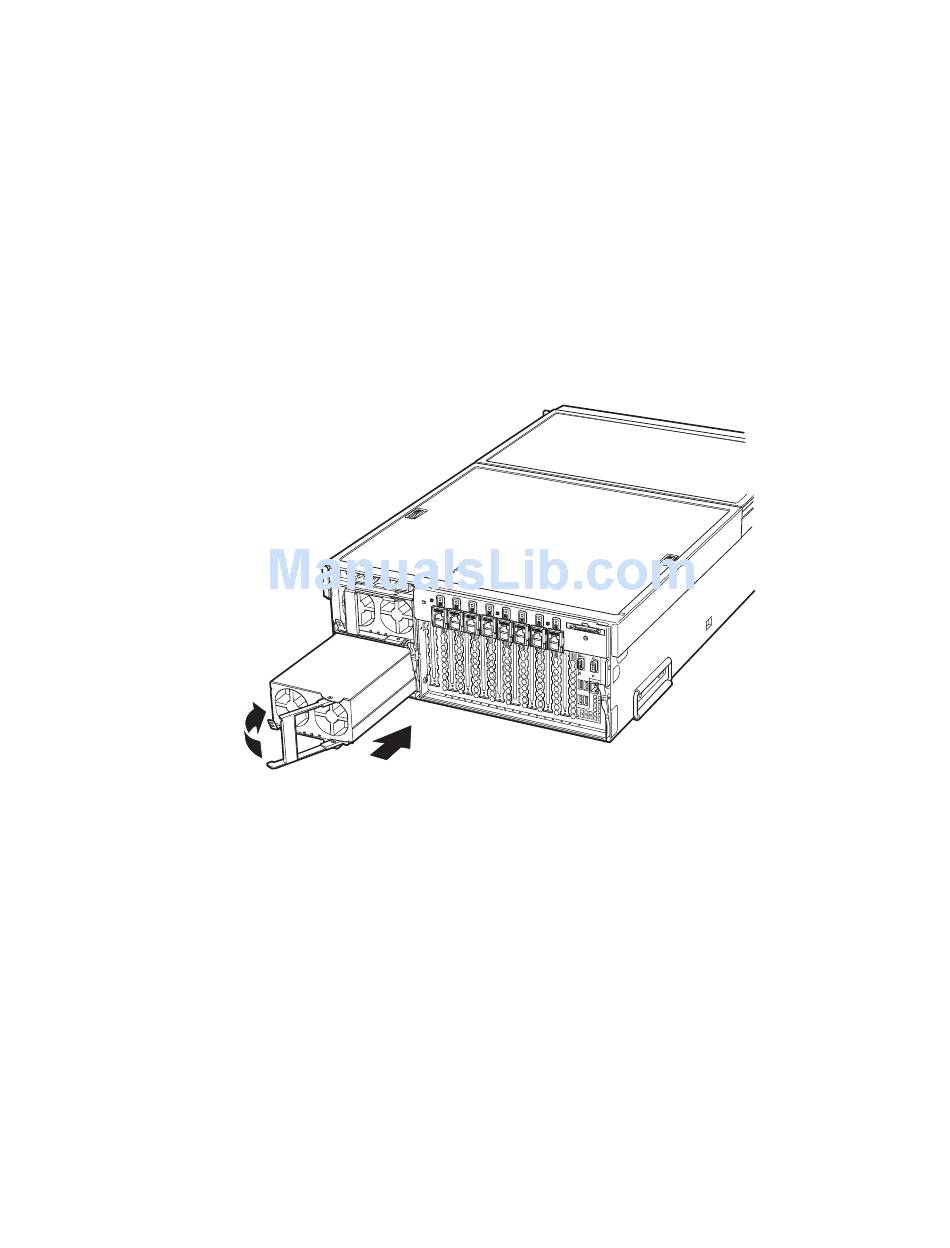

Figure 54. Installing a Power Supply
