Replacing Memory Boards

Two memory boards reside in the processor/memory module. Memory board 1 is on the primary
side of the processor board and memory board 2 is on the secondary side. Both must be in place for
the system to operate correctly.

Removing a Memory Board

To remove a memory board:
1. Power down the system by pressing and holding the power button on the front panel for several
seconds. Unplug both AC power cords to remove standby power from the server.
2. Remove the processor/memory module from the chassis as shown in "Removing Modules" on
Page 186.
3. If required, remove the DIMMs from the memory board as described in "Removing DIMMs"
on Page 222.

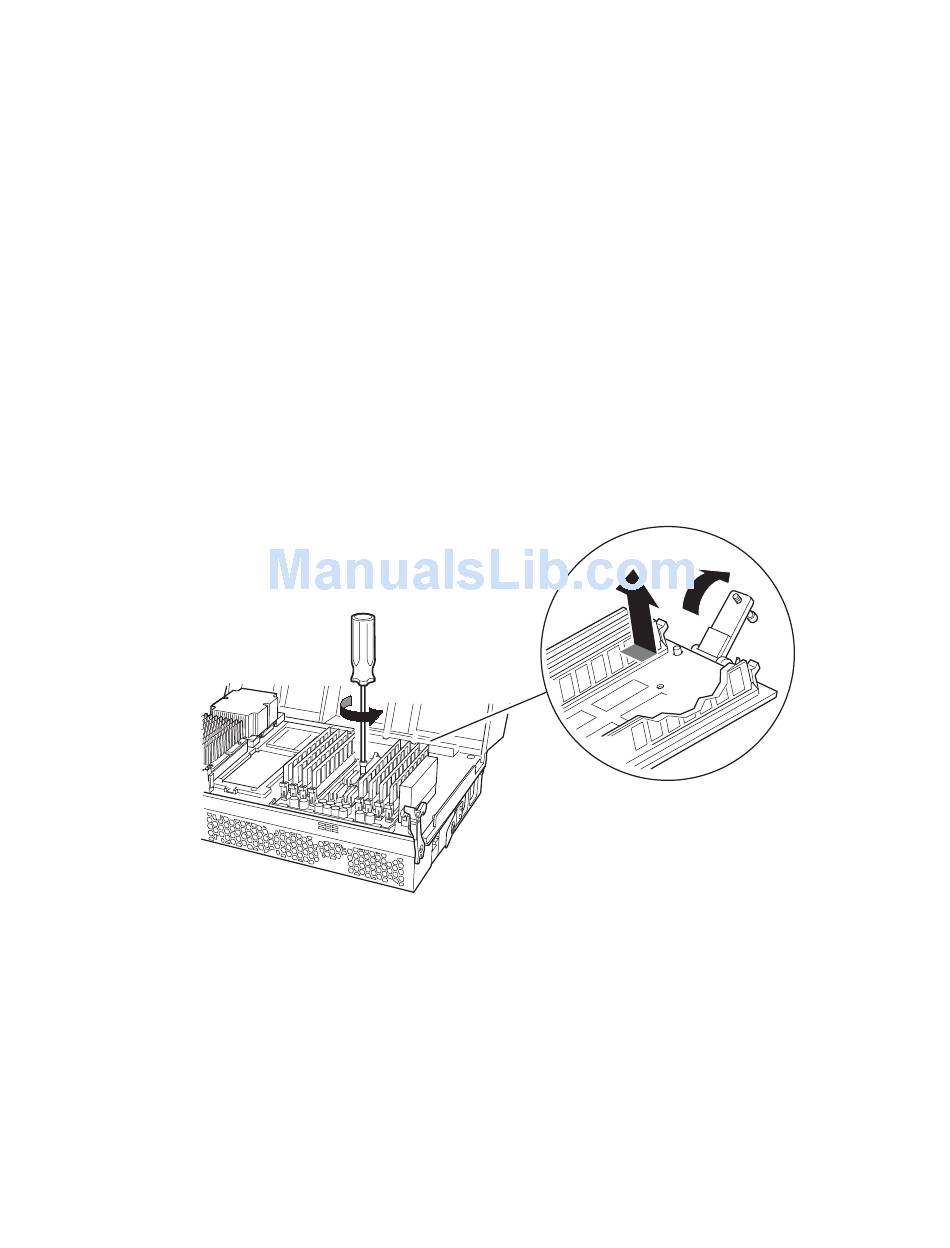

4. Loosen the captive screw (A in Figure 96) that secures the memory board's extraction lever.
Lift the extraction lever as shown by the arrow (B in Figure 96). Lift the memory board out of
the processor/memory module as indicated by arrow C in Figure 96.
5. Place the memory board on a clean, ESD-protected work surface.
Intel® SR870BN4 Server System Product Guide
A
Figure 96. Removing a Memory Board
B
C
OM12913
219
