The <right arrow> key expands a branch if the selection is currently on a branch. If the
selection is not on a branch, there is no affect. The <space bar> and <Enter> keys have
identical functionality, as follows: If the current selection is on a branch, an expanded branch
collapses, and a collapsed branch expands. If the current selection is on a leaf, the SDR for that
selection is shown in the SDR screen popup. No other keys affect the SDR tree.
The SDR tree retains its expanded/collapsed state for each of the branches until the SDRs are
reloaded or until the application is exited. If the tree view goes beyond the size of the screen a
vertical scroll bar is added to allow the user to view all SDRs.
Viewing SDRs
SDR records can only be viewed one at a time. They are opened by clicking on the SDR in the
SDR tree. No other actions are allowed once an SDR is opened for viewing. If the displayed data
is too large to fit on the screen, the popup window is sized to the maximum viewable area and a
vertical scroll bar is added. To view a new SDR or to issue another command, close the current
window or use the Next and Previous buttons.

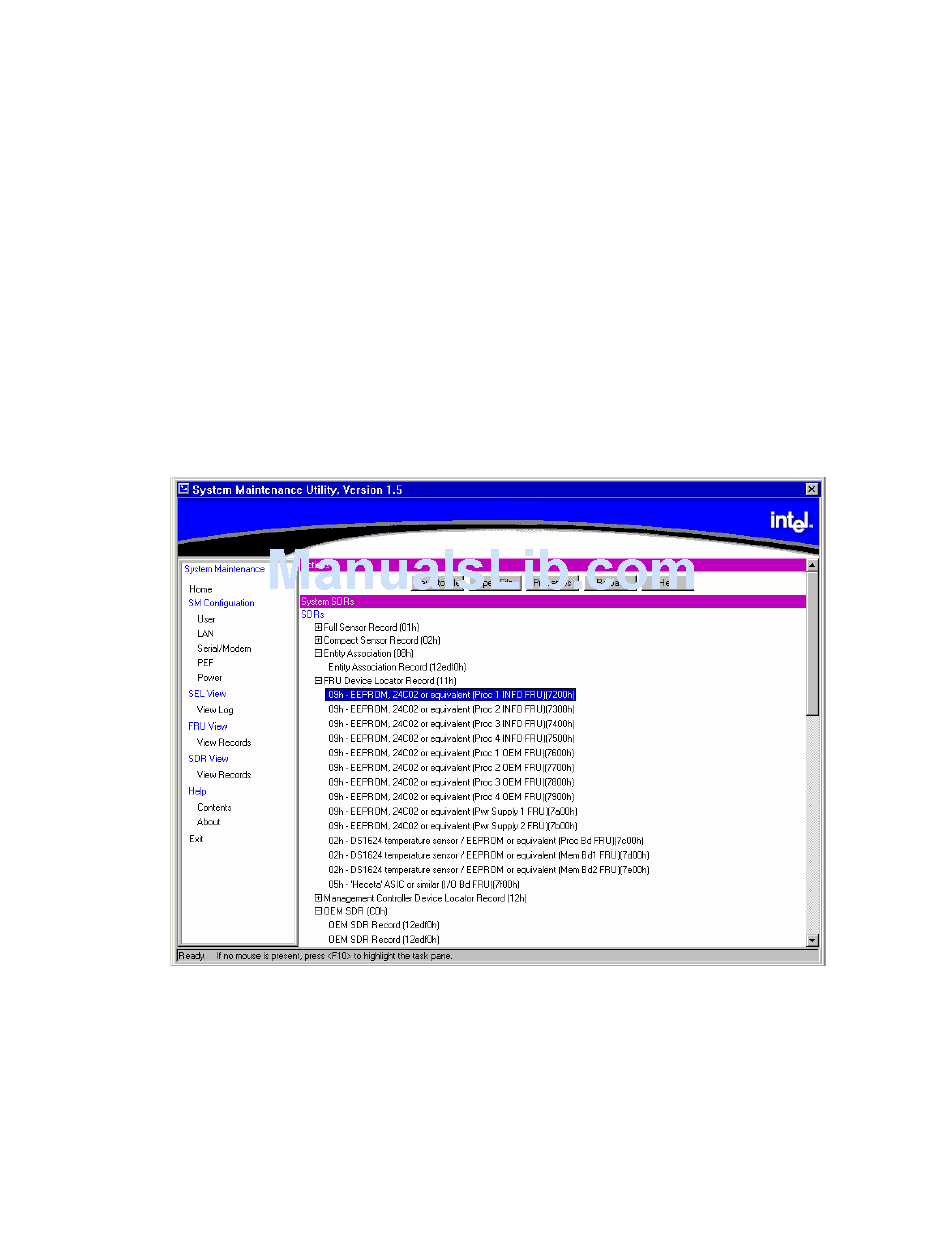

Figure 45. SDR Viewer
