6. Referencing Figure 99, position the DIMM so that the notch in the bottom edge of the DIMM
(A in Figure 99) aligns with the keyed DIMM connector on the memory board.
7. Insert the bottom edge of the DIMM into the DIMM connector, then press down firmly on
the DIMM (B in Figure 99) until it seats correctly. When fully seated, the plastic ejector levers
on the connector ends (C in Figure 99) snap into the upright position to secure
the DIMM.
8. Repeat steps 5 through 8 for each DIMM to be installed.
9. Close the processor/memory module and verify that the latches are secure.
10. Insert the processor/memory module into the chassis.
224

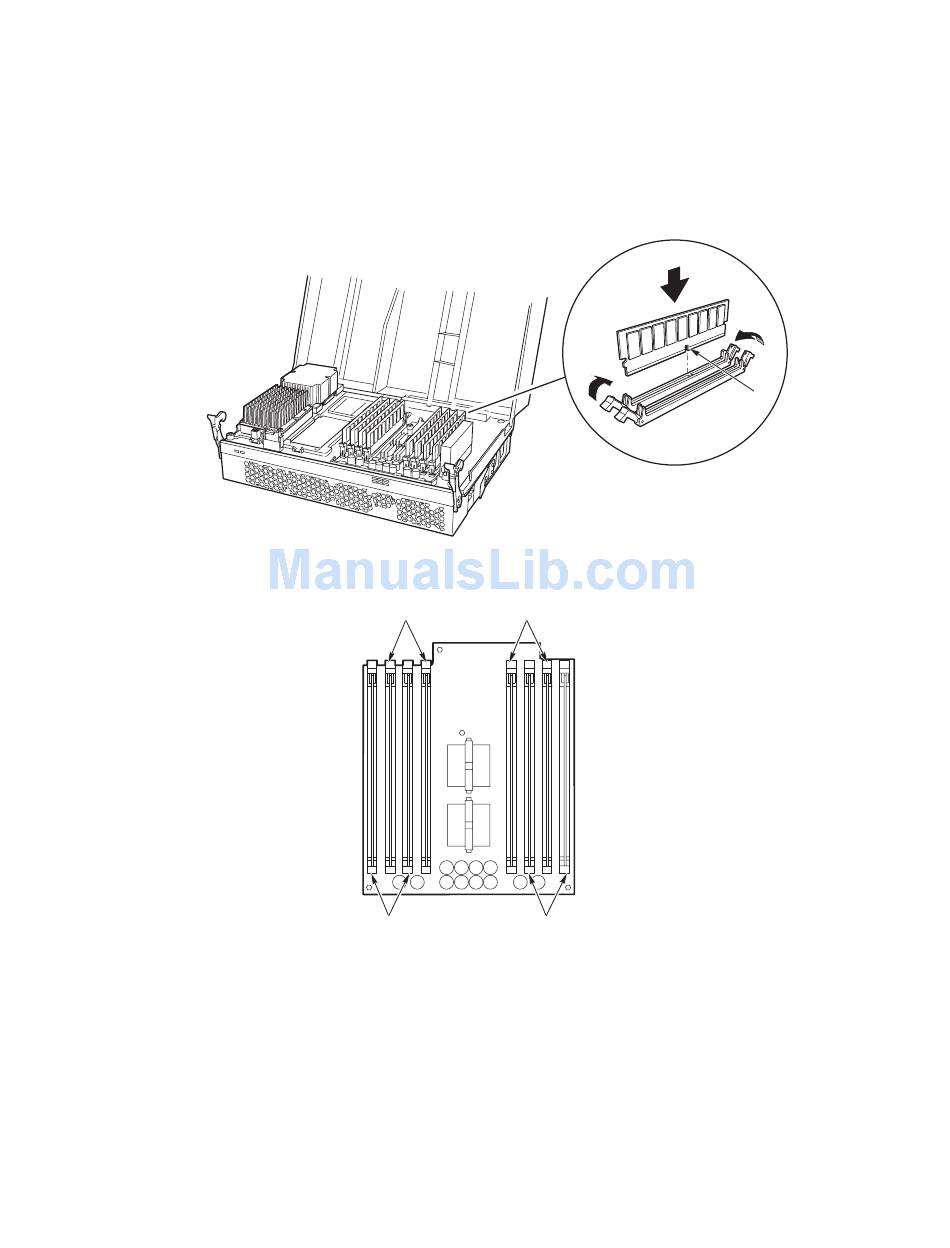

Figure 99. Installing DIMMs (Primary Side)
D
B
Figure 100. DIMM Installation Sequence
