Installing the Back Top Cover

To install the back top cover, follow these instructions:
1. Slide the two bearing cages on the back top cover all the way to the end of the slides.
2. Place the top cover on the cover slides (D in Figure 59) and push the cover into place.

Removing the Front Top Cover

The front top cover does not require removal except to service the midplane board. To remove the
front top cover:
1. Loosen the two captive screws on either side of the cover (A in Figure 60).
2. Slide the cover toward the front of the chassis until it stops and lift the cover off (B in
Figure 60).
184
B

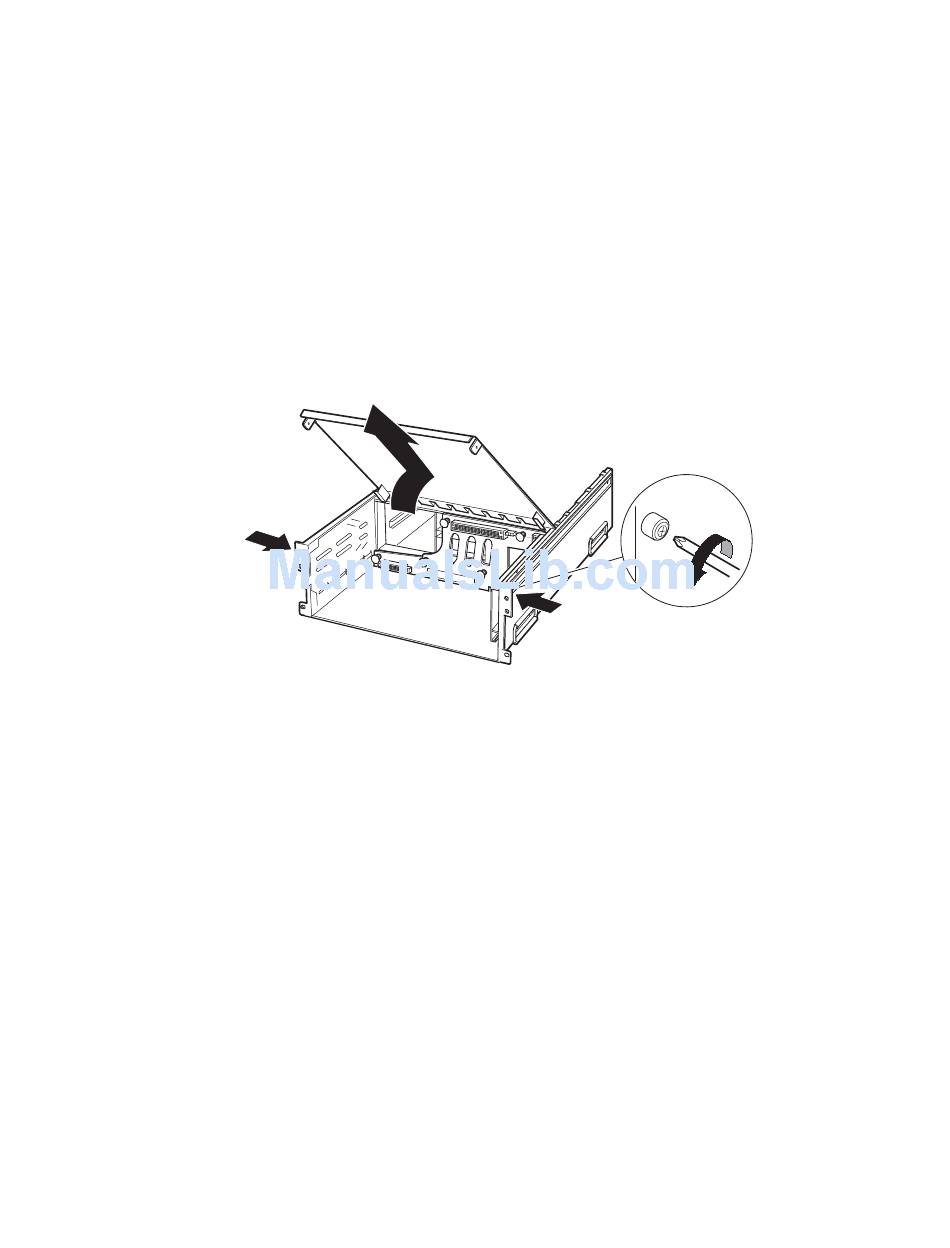

Figure 60. Removing the Front Top Cover
Intel® SR870BN4 Server System Product Guide
A
OM12932
