Configuring Processor Board Jumpers

The processor board has three jumper blocks: J7C1, J8C2, and J8C3. J8C1 is located among the
jumper blocks but is the ISP header. Figure 136 shows the jumper blocks, and Table 43 describes
the jumper pins.
Intel® SR870BN4 Server System Product Guide
J7C1
1 2 3 4
A J7C1 – JTAG Scan Chain Select
B J8C1 - ISP Header Connector Interface Signals
C J8C2 – Processor Core Ratio Select
D J8C3 – Miscellaneous Jumpers

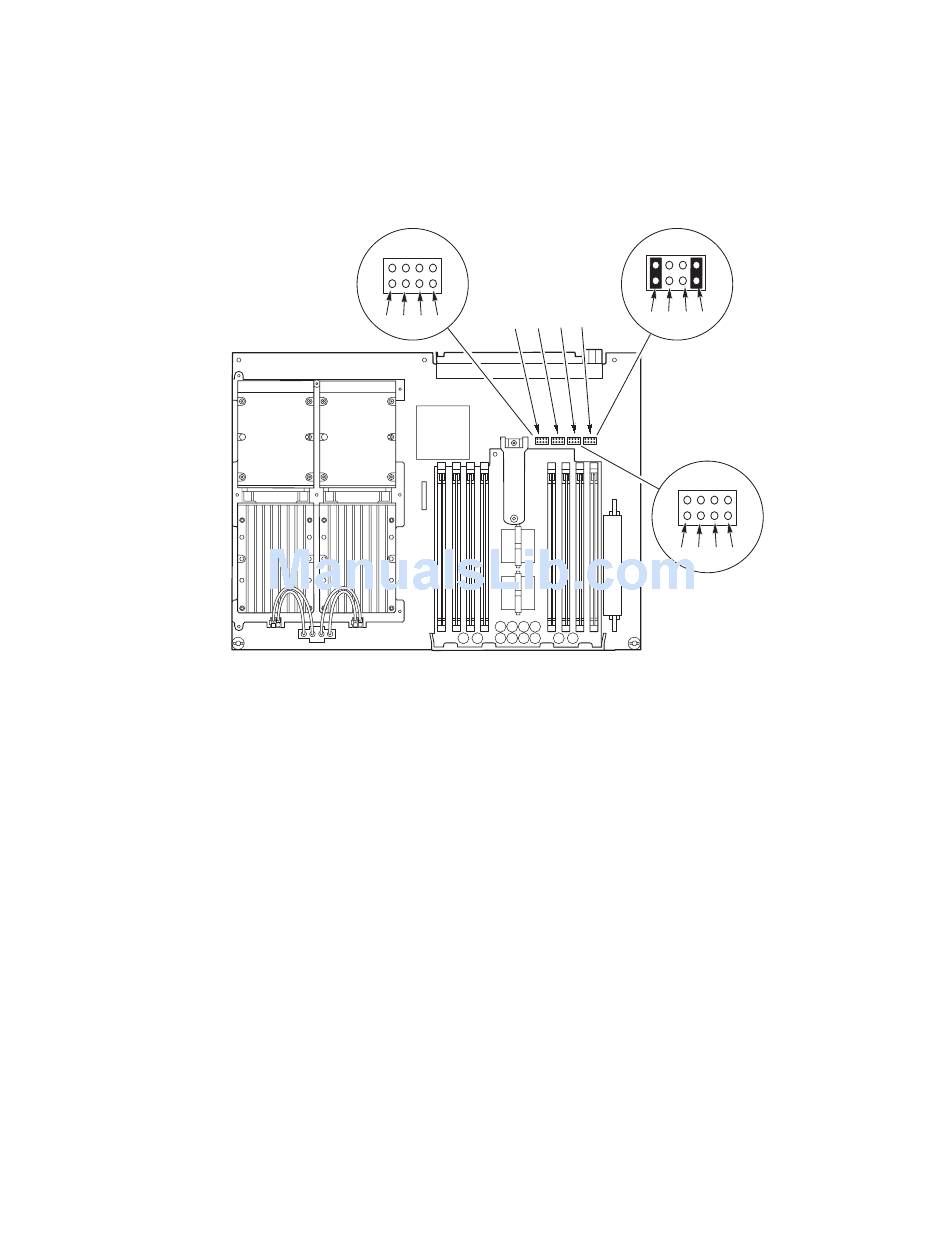

Figure 136. Jumpers J7C1 and J8C3
J8C3
A B C D
1 2 3 4
1 2 3 4
J8C2
OM12959
263
