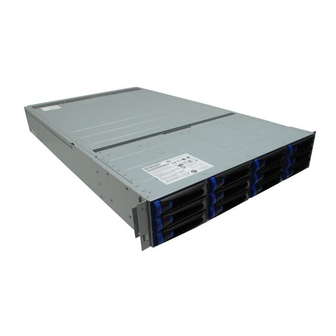

Page 1 ® Intel Server System SR2612UR Service Guide ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/ Products Intel Order Number E76206-004 ® Intel Server System SR2612UR Service Guide...
Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
Page 3: Preface
Preface About this Manual ® Thank you for purchasing and using the Intel Server System SR2612UR. This guide assumes you are familiar with Serial ATA (SATA) technology, SAS (Serial Attached SCSI), computer hardware, data storage, and network administration terminology and tasks.
Page 4 ® Chapter 2 describes the features of your Intel Server System SR2612UR and shows you how you can upgrade your system as your storage requirements change. It also lists the contents of the storage application array package, and describes additional hardware requirements.
Page 5: Safety Information
Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit 3.0 CD and/or at http://www.intel.com/support/motherboards/server/sb/cs-010770.htm...
Page 6: Warnings
Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. ® Intel Server System SR2612UR Service Guide...
Page 7: Table Of Contents
SAS/SATA Midplanes ......................26 Active Midplane ......................26 Hot-Swap SAS/SATA Backplane ..................27 RAID Support ........................28 Advanced Management Options ..................28 Intel® Remote Management Module 3 ................28 Rack Mount Options ......................28 Chapter 3: Hardware Installations and Upgrades ..........29 Before You Begin .........................29 ®...
Page 8 Tools and Supplies Needed ..................29 System References ..................... 29 Preparing for Installation ..................... 29 ® Installing Your Intel Server System SR2612UR into a Rack (Optional) ......30 Installing the Disk Drives ..................... 33 Removing a Disk Drive Carrier Assembly (or Drive Blank) ..........35 Important Safety Precautions ..................
Page 9 Introduction ..........................75 Installing a Disk Drive in a Universal Drive Carrier ............75 Installing a Blank Insert in a Universal Drive Carrier ...........77 ® Appendix B: Intel Server Issue Report Form ............79 Appendix C: LED Decoder ..................85 Appliance Status ........................85 LED Status Board ......................85...
Page 10 Selección de la ubicación ..................138 Manipulación del equipo ................... 139 Advertencias de alimentación y eléctricas ..............139 Advertencias el acceso al sistema ................140 Descarga electrostática (ESD) .................. 141 Otros peligros ......................141 ® Intel Server System SR2612UR Service Guide...
Page 11 List of Figures ® Figure 1. Intel Server System SR2612UR Front View ............2 ® Figure 2. Intel Server System SR2612UR Rear View............. 3 ® Figure 3. Intel Server System SR2612UR Drive Carrier Assembly ........4 ® Figure 4. Intel Server System SR2612UR Drive Slots ............
Page 12 Figure 76. Installing the Four Screws into the Drive Carrier ........... 77 Figure 77. Orienting the Plastic Insert with the Drive Carrier..........78 Figure 78. LED Statuses......................85 Figure 79. LED Board ......................86 Figure 80. Disk Drive LEDs..................... 86 ® Intel Server System SR2612UR Service Guide...
Page 13 List of Tables Server System References ....................... 7 ® Intel Server System SR2612UR Feature Summary ..............10 Setup Menu Key Use ......................69 LED Decoder ...........................85 LED Board LEDs Descriptions ....................86 LED Status for the Disk Drive ....................86 LED Status (SAS/SATA) for the Disk Drive ................87 Product Regulatory Compliance Markings ................95...
Page 14 ® Intel Server System SR2612UR Service Guide...
Page 15: Chapter 1: Server System Contents And References
® The Intel Server System SR2612UR ships with the Intel Server Board S5520UR. For ® information about the server board, see the Intel Server Board SR2612UR Technical Product Specification. ® The contents of the Intel Server System SR2612UR are listed in the following section.
Page 16: Appliance Components And Features
• Maximum length: 10 m For updated disk drive information or to purchase qualified disk drives or SAS cables, contact your Intel sales representative. Appliance Components and Features The main features of the appliance are shown in the following figures.
Page 17: About The Disk Drives And Drive Carriers
® ® Intel RAID Controller SRCSASJV, Intel RAID Controller SRCSASLS4I and Intel RAID Controller SASWT4I. Please refer to the Intel Customer Support web site under the link for these RAID controllers at:http://www.intel.com/support/motherboards/server/ About the Disk Drives and Drive Carriers ®...
Page 18: Figure 3. Intel ® Server System Sr2612Ur Drive Carrier Assembly
® Figure 3. Intel Server System SR2612UR Drive Carrier Assembly Each drive carrier has three LEDs, which indicate status as described in “Monitoring the Disk Drives”. To maintain proper airflow and cooling inside the appliance, all drive slots must have either a disk drive carrier assembly populated with an actual disk or a special plastic drive blank installed.
Page 19: Combining Sata And Sas Disk Drives
These figures represent enclosures fully-loaded with disk drives. However, the same guidelines apply even if you are filling some of the drive slots with blank drive carriers. Recommended Disk Drive Configurations ® Figure 5. Intel Server System SR2612UR Drive Configurations ® Intel...
Page 20: Figure 6. Unsupported Disk Drive Combinations
Unsupported Disk Drive Combinations Figure 6. Unsupported Disk Drive Combinations ® Intel Server System SR2612UR Service Guide...
Page 21: Additional Information And Software
Server System SR2612UR Quick Start User’s Guide product and you need to Provided in the product box assemble your system and install components Accessories or other Intel Spares, Parts List and Configuration Guide server products Available at: http://www.intel.com/support/motherboards/server/sr2612ur/ or by using the Server Configurator Tool Available at: http://serverconfigurator.intel.com/default.aspx...
Page 22 To make sure your system Power Budget Analysis Tool falls within the allowed Available at: power budget http://www.intel.com/support/motherboards/server/sr2612ur/ ® For software to manage Intel System Management Software ® your Intel server Available at: http://www.intel.com/go/servermanagement/ ® Intel Server System SR2612UR Service Guide...
Page 23: Chapter 2: Server System Features
Server System Features ® This chapter briefly describes the main features of the Intel Server System SR2612UR. This includes illustrations of the products, a list of the server system features, and diagrams showing the location of important components and connections on the server systems.
Page 24: Server System Feature Overview
Support for one or two Intel Xeon Processor 5500 Series with a ® 4.8 GT/s, 5.86 GT/s, or 6.4 GT/s Intel QPI link interface. Support up to 95-W Thermal Design Power (TDP); processors having higher TDP are not supported. This server board does not support previous generations of the ®...
Page 25 One DH-10 serial Port B header • Six Serial ATA II connectors • Two I/O module connectors • ® One RMM3 connector to support an optional Intel Remote Management Module 3 • SATA Software RAID 5 Activation Key connector • One SSI-EEB-compliant front panel header •...
Page 26: Server System Components
® Table 2. Intel Server System SR2612UR Feature Summary Feature Description • LEDs and displays Power LED • Standby Power LED ( +3.3V Standby) • System Status • System Identification • Enclosure Subsystem Fault • Hard Drive Activity • Hard Drive Status ®...
Page 27: Figure 8. Intel Server System Sr2612Ur Configuration Diagram
Figure 8. Intel Server System SR2612UR Configuration Diagram ® ® Intel Server System SR2612UR Service Guide...
Page 28: Intel Server System Sr2612Ur Components
Power Distribution Board Fan Module PCI Riser Assembly 2.5-inch System Drives Server Board RAID Card Battery (Optional) Backplane PCB CD/DVD Drive (Optional) Hard Drive Assembly Figure 9. Intel ® Server System SR2612UR Components ® Intel Server System SR2612UR Service Guide...
Page 29: Intel Light-Guided Diagnostics
® Intel Light-Guided Diagnostics The server system contains the following diagnostic LEDs, each providing the following functions: • The System Power LED on the front and back panels (see Figure 11 Figure shows the system power supplies status (off, green).
Page 30: Figure 10. Intel ® Light-Guided Diagnostic Leds - Server Board
CPU 1 DIMM Fault LEDs CPU 2 Fan Fault LED Memory 2 Fan Fault LED CPU 2 DIMM Fault LEDs 5V Standby LED ® Figure 10. Intel Light-Guided Diagnostic LEDs - Server Board ® Intel Server System SR2612UR Service Guide...
Page 31: Figure 11. Intel Light-Guided Diagnostic Leds - Standard Control Panel
® Figure 11. Intel Light-Guided Diagnostic LEDs - Standard Control Panel ® Intel Server System SR2612UR Service Guide...
Page 32: Server Board Components
System Identification Blue Identify active through command No Identification Power Switch Figure 12. System Power LED Back Panel Server Board Components This section helps you identify the components and connectors on the server board. ® Intel Server System SR2612UR Service Guide...
Page 33 AF002696 ® Intel Server System SR2612UR Service Guide...
Page 34: Figure 13. Server Board Connector And Component Locations
Processor 1 DIMM slots Processor 2 DIMM slots Processor 2 Socket ® M. CPU 2 Fan Header Memory 2 Fan Header Bridge Board Connector (Intel Server Chassis) Front Panel Connector Fan Board Connector 2x4 Power Connector Main Power Connector Power Supply SMBus...
Page 35: Configuration Jumpers
If pins 2-3 are jumpered, administrator and user passwords are cleared within five to ten seconds after the system is powered on. These pins should be jumpered on 1-2 for normal system operation. ® Intel Server System SR2612UR Service Guide...
Page 36: Front Of Intel Server System Sr2612Ur
BIOS image. The main system BIOS will not boot. These pins should be jumpered on 1-2 for normal system operation. Figure 14. Configuration Jumpers ® Front of Intel Server System SR2612UR Peripheral Devices ® The Intel Server System SR2612UR provides locations and hardware for installing hard drives, CD-ROM drive, or DVD-ROM drive.
Page 37: Figure 15. Optional Peripherals
Internal fixed 2.5-inch SATA Hard Drive Bays (2) Slimline SATA Optical Drive Bay (1) Figure 15. Optional Peripherals Hard Disk Drive Carriers The server system ships with 12 drive carriers for installing 12 SAS or Serial ATA (SATA) hot-swap drives. ® Intel Server System SR2612UR Service Guide...
Page 38: Control Panel
The drive inside the chassis is NOT hot-swappable. The system power must be turned off to insert or remove the slimline optical drive carrier. To use one of the drives provided by Intel, use the following order codes: • Slimline DVD-ROM Drive: AXXSATADVDROM •...
Page 39 System Status LED Green Solid On System booted and ready Blink Degraded System Status LED Amber Blink Non-critical Solid On Critical, non-recoverable System Identification Blue Identify active through command No Identification Power Switch ® Intel Server System SR2612UR Service Guide...
Page 40: Sas/Sata Midplanes
Only one midplane is offered for this system: • Active SAS midplane ® Note: SATA connectors 6 and 7 are not used in the Intel Server System SR2612UR. Active Midplane The following diagram show the location for each connector found on the active midplane.
Page 41: Hot-Swap Sas/Sata Backplane
SAS/SATA Hard Disk Drive Connectors Figure 18. 3.5-inch Hot-Swap SAS/SATA Backplane Components (Front View) Backplane Power Connector Midplane Board Connector Server Board/Midplane GPIO Connector Figure 19. 3.5-inch Hot-Swap SAS/SATA Backplane Components (Rear View) ® Intel Server System SR2612UR Service Guide...
Page 42: Raid Support
34 inches deep) EIA-310D compatible server cabinet. When installing the system into a rack, Intel recommends you install systems from the bottom of the rack to the top. In other words, install the first system in the rack into the bottom position of the rack, the second system in the second position from the bottom, and ®...
Page 43: Chapter 3: Hardware Installations And Upgrades
— Arrange for someone to assist you during installation. — Ensure ahead of time that you have chosen a suitable location for the appliance and the rack. (See “Safety Information” on page v at the beginning of this manual.) ® Intel Server System SR2612UR Service Guide...
Page 44: Installing Your Intel Server System Sr2612Ur Into A Rack (Optional)
® Installing Your Intel Server System SR2612UR into a Rack (Optional) If you are not installing your appliance into a rack, skip the remainder of this section and go to “Installing the Disk Drives” on page To install your appliance into a rack: 1.
Page 45: Figure 21. Securing The Front And Rear Portions Of The Rail Kit
4. Tighten the four screws on each rail's slider mechanism. Figure 22. Tightening the Screws on the Rail’s Slider Mechanism Caution: A fully loaded appliance is heavy. To avoid personal injury, have someone help you lift the appliance. ® Intel Server System SR2612UR Service Guide...
Page 46: Figure 23. Sliding The Appliance Onto The Rails
6. Secure both rackmount ears to the vertical supports using two of the 10-32 x .50- inch screws and carefully snap the plastic rack ear covers in place as shown. The rack installation is complete. ® Intel Server System SR2612UR Service Guide...
Page 47: Installing The Disk Drives
3. Slide the disk drive into the drive slot until the lever starts to close. Figure 24. Sliding the Disk Drive into the Drive Slot 4. Push the lever until it meets the latch on the left side of the drive slot and clicks into place. ® Intel Server System SR2612UR Service Guide...
Page 48: Figure 25. Pushing The Lever Until It Meets The Latch On Left Side Of The Drive Slot
Under no circumstances should the appliance be operated with empty drive slots or with empty drive carrier assemblies as this could cause damage to the LEDs on the backplane and/or create thermal problems. ® Intel Server System SR2612UR Service Guide...
Page 49: Removing A Disk Drive Carrier Assembly (Or Drive Blank)
Disk Drive Carrier assembly while the drive is spinning could cause injury and may cause severe damage to the disk drive. To remove a populated disk drive carrier assembly (or drive blank assembly): 1. Press the button on the assembly to release the lever. ® Intel Server System SR2612UR Service Guide...
Page 50: Figure 26. Pushing The Button On The Assembly
5. Immediately replace the disk drive carrier assembly or install a drive blank assembly to maintain correct airflow and cooling. For more information on installing disk drives, see “Installing the Disk Drives” on page ® Intel Server System SR2612UR Service Guide...
Page 51: Installing The Operating System
Installing the Operating System ® The Intel Server System SR2612UR is now ready to have the operating system installed. Please contact your IT representative to perform this installation or if you are installing it yourself, please follow the general guidelines below.
Page 52: Connecting Your Intel ® Server System Sr2612Ur To A Host Server
The following figure illustrates a direct iSCSI connection ® between the host system and one of the two Ethernet ports on the Intel Server System SR2612UR. An Ethernet switch and/or optional internal 1GE or 10GE iSCSI PCI card may also be used to make these connections.
Page 53: Installing A 2.5-Inch Internal Drive
They are connected directly to the CPU server board and provide the capability to run the operating system from these drives. ® Complete the following steps to install one or more 2.5-inch internal drives in the Intel Server System SR2612UR. For a list of supported drives, contact your Intel sales representative.
Page 54: Figure 30. Removing The Drive Sled
7. Reinstall the drive sled and tighten down the captive thumbscrew. 8. The power cables for the 2.5-inch drives are located near the drive sled. Attach the cable(s) to the drive(s). 9. Carefully remove the CPU server board air duct. ® Intel Server System SR2612UR Service Guide...
Page 55: Dvd Installation
The Intel Server System SR2612UR supports an optional DVD. Complete the following steps to install a DVD drive in the Intel® Server System SR2612UR. 1. Ensure the AC power cord(s) are disconnected from the enclosure. 2. Remove the top cover from the enclosure by loosening the captive screw with a Phillips screwdriver on the right rear of the enclosure.
Page 56: Figure 33. Removing The Four Screws And Cover Plate
7. Slide the DVD tray out of the enclosure. 8. Position the DVD unit as shown in the following figure and carefully snap the unit in place by aligning the pointed tabs with the screw holes on the DVD unit. ® Intel Server System SR2612UR Service Guide...
Page 57: Replacing A Fan
12. Reinstall the power cord(s). Replacing a Fan You should replace a defective fan as soon as possible to maintain proper cooling in the ® enclosure. Complete the following steps to remove and install a fan in the Intel Server System SR2612UR. ®...
Page 58: Installing A Fan
2. Carefully replace the system air duct if it was removed in Step 3. Reinstall the top cover and tighten the captive screw. 4. Reinstall the power cord(s). ® Intel Server System SR2612UR Service Guide...
Page 59: Midplane Board Replacement
Midplane Board Replacement ® Complete the following steps to remove and install an midplane in the Intel Server System SR2612UR. 1. Ensure the AC power cord(s) are disconnected from the enclosure. 2. Remove the top cover from the enclosure by loosening the captive screw with a Phillips screwdriver on the right-rear of the enclosure.
Page 60: Memory Installation
2. It is recommended that the same overall size of memory is used for both processors. For a list of supported memory vendors and capacities, contact your Intel sales representative.
Page 61: Figure 40. Memory Slots On The Server Board
® To replace or add memory to the Intel Server System SR2612UR, complete the following steps. 1. Ensure that the AC power cord(s) are disconnected from the enclosure. 2. Remove the top cover from the enclosure by loosening the captive screw with a Phillips screwdriver on the right-rear of the enclosure.
Page 62: Pci Card And Battery Installation
Server System SR2612UR supports to five PCI-E option cards. A typical configuration uses a PCI-E-based RAID card to communicate with the 12 drive slots. ® Complete the following steps to install a PCI-E card in the Intel Server System SR2612UR.
Page 63: Figure 42. Lifting The Pci Cage Assembly Out Of The Enclosure
In the case of a RAID card, you must route the SAS cable through the fan assembly (where other cables are routed) and connect to the I/O module located just behind the midplane. ® Intel Server System SR2612UR Service Guide...
Page 64: Figure 43. Routing The Cables Through The Fan Assembly
H - FAN MODULE I - 2.5” SYSTEM DRIVES OPTIONAL HARDWARE J - RAID CARD BATTERY K - CD/DVD DRIVE Figure 44. Mounting an External Battery 13. Reinstall the top cover and tighten the captive screw. ® Intel Server System SR2612UR Service Guide...
Page 65: Power Supply Replacement
14. Reinstall the power cord(s). Power Supply Replacement ® Complete the following steps to remove and install a power supply in the Intel Server System SR2612UR. 1. Ensure the AC power cord(s) are disconnected from the enclosure. 2. Remove the top cover from the enclosure by loosening the captive screw on the right-rear of the enclosure with a Phillips screwdriver.
Page 66: Removing The Backplane Board
7. Remove the midplane from the enclosure as detailed in the User Guide appendix. (Remove the I/O SAS cable and the two (2) screws holding the midplane in place, then carefully disconnect the midplane from the backplane.) ® Intel Server System SR2612UR Service Guide...
Page 67: Figure 48. Removing The Midplane From The Enclosure
Figure 49. Removing the Screws that Attach the Backplane 9. Carefully pull back on the top of the backplane and lift it out of the enclosure Figure 50. Pulling Back the Backplane and Lifting It Out of the Enclosure ® Intel Server System SR2612UR Service Guide...
Page 68: Installing And Removing The Raid Battery Backup Unit
Phillips screwdriver on the right-rear of the enclosure. 4. Slide the top cover back and lift it from the enclosure. 5. Locate the battery mounting plate in the enclosure as shown below Figure 51. Locate the battery ® Intel Server System SR2612UR Service Guide...
Page 69: Figure 52. Remove The Standoff
Figure 53. Align the battery pack ® Intel Server System SR2612UR Service Guide...
Page 70: Figure 54. Aligning The Battery Pack
8. Replace and tighten the standoff that was removed in step 6 Figure 55. Replace and tighten standoff 9. Route the cable from the battery pack as shown below. Figure 56. Route the cable ® Intel Server System SR2612UR Service Guide...
Page 71: Installing And Removing The Server Board
3. Slide the top cover back and lift it from the enclosure. 4. Remove the processor air duct. 5. Remove the PCI riser assembly. ® 6. Remove the Intel RMM3, if installed. 7. Disconnect power cables, P1, P2, P3 and Front Panel logic cable, from Motherboard as shown below.
Page 72: Figure 58. Disconnect The Power Cables
Figure 59. Disconnect the fan cables 9. Remove memory. 10. Remove the processor heatsink(s) and processor(s). 11. Remove the nine screws from the server board and lift the server board from the server system as shown below. ® Intel Server System SR2612UR Service Guide...
Page 73: Figure 60. Remove The Screws
Figure 60. Remove the screws 12. Install the replacement server board. ® Intel Server System SR2612UR Service Guide...
Page 74: Installing The Server Board
Figure 61. Installing the server board 2. Attach the server board with nine screws. Figure 62. Attach the screws ® Intel Server System SR2612UR Service Guide...
Page 75: Figure 63. Installing Power Cables
5. Install memory. 6. Install the processor(s). 7. Install processor heatsink(s). ® 8. If necessary, install the Intel RMM3. 9. Install the PCI riser assembly. 10. Install the processor air duct. 11. Install the top cover and tighten the captive screw.
Page 76: Replacing The Backup Battery
7. Remove the new lithium battery from its package, and, being careful to observe the correct polarity, insert it in the battery socket. Note: You will need to run the BIOS Setup to restore the configuration settings to the RTC. ® Intel Server System SR2612UR Service Guide...
Page 77: Removing And Installing The Power Distribution Module
4. Remove the processor air duct. 5. Remove the PCI riser assembly. 6. Disconnect power cables, P1, P2, P3 and Front Panel logic cable, from Motherboard as shown below. Figure 65. Disconnect the power cables ® Intel Server System SR2612UR Service Guide...
Page 78: Figure 66. Remove The Screws
Figure 66. Remove the screws 8. Remove cable chase insert foam from cable chase fan blank and then remove power cable p4 from cable chase fan blank as shown below. Figure 67. Remove cable chase ® Intel Server System SR2612UR Service Guide...
Page 79: Installing Power Distribution Module
1. Install power distribution module onto spacers and Install all four screws as shown below. Figure 69. Installing the Power Distribution Module 2. Route cable marked “P4” through the cable chase fan blank as shown below. ® Intel Server System SR2612UR Service Guide...
Page 80: Figure 70. Route Cable P4
3. Install 2 nylon clamps onto cable “P4”, flat side up as shown below. Figure 71. Install the nylon clamps 4. Connect power cable “P4” into backplane and Install 2 screws into nylon clamps and secure to chassis as shown below. ® Intel Server System SR2612UR Service Guide...
Page 81: Figure 72. Connecting Cable P4 To Backplane
Figure 72. Connecting cable P4 to backplane 5. Insert cable chase insert foam into cable chase fan blank. See picture below for foam orientation. Figure 73. Foam orientation ® Intel Server System SR2612UR Service Guide...
Page 82: Figure 74. Install The Power Cables
Figure 74. Install the power cables 7. Install the PCI riser assembly. 8. Install the processor air duct. 9. Install the top cover and tighten the captive screw. 10. Install the power cords. ® Intel Server System SR2612UR Service Guide...
Page 83: Chapter 4: Server Utilities
You can run the BIOS Setup with or without an operating system ® being present. For information about specific BIOS setup screens, see the Intel Server Board S5520UR Technical Product Specification. For a web link to this document, see “Additional Information and Software”...
Page 84 If "No" is selected and the <Enter> key is pressed, or if the <Esc> key is pressed, you are returned to the screen you were in before <F9> was pressed without affecting any existing field values. ® Intel Server System SR2612UR Service Guide...
Page 85: Upgrading The Bios
Recording the Current BIOS Settings 1. Boot the computer and press <F2> when you see the message: Press <F2> Key if you want to run SETUP 2. Write down the current settings in the BIOS Setup program. ® Intel Server System SR2612UR Service Guide...
Page 86: Upgrading The Bios
(covering pins 2 and 3). 5. Wait ten seconds. 6. Move the Password Clear jumper back to the Password Clear Protect position (covering pins 1 and 2). 7. Close the server system. 8. Power up the server. ® Intel Server System SR2612UR Service Guide...
Page 87 The password is now cleared and can be reset by going into the BIOS setup. ® Intel Server System SR2612UR Service Guide...
Page 88: Restoring The Bios Defaults
6. Return the BIOS Default jumper to the normal position (covering pins 1 and 2). 7. Close the server system. 8. Power up the system. The BIOS defaults settings are now restored and can be reset by going into the BIOS setup. ® Intel Server System SR2612UR Service Guide...
Page 89: Appendix A: Drive Installation In The Drive Carrier
Drive Carrier Introduction ® The Intel Server System SR2612UR universal drive carrier is either used for mounting drives into an enclosure or is used with a blank insert (no drive installed) to maintain proper cooling. This appendix covers the installation of a disk drive in the universal drive carrier.
Page 90: Figure 75. Installing A Disk Drive In A Universal Carrier
There are two sets of mounting holes on the carrier. Use the four holes that position the connector farthest back on the carrier. This will ensure the drive will make good connection with the enclosure midplane. ® Intel Server System SR2612UR Service Guide...
Page 91: Installing A Blank Insert In A Universal Drive Carrier
1. To install the blank insert in the universal drive carrier, position the plastic insert as shown in the following figure with the connector indentation at the “rear” of the universal drive carrier. ® Intel Server System SR2612UR Service Guide...
Page 92: Figure 77. Orienting The Plastic Insert With The Drive Carrier
Figure 77. Orienting the Plastic Insert with the Drive Carrier 2. Carefully install the four (4) 6 x 32 x .25-inch screws supplied with the carrier. Do not overtighten. ® Intel Server System SR2612UR Service Guide...
Page 93: Appendix B: Intel ® Server Issue Report Form
® Appendix B: Intel Server Issue Report Form Issue Report Form (Rev 3.6) Note: Filling out this form completely is required for any escalation. =============================================================== Customer Contact Information: Customer Support Case #: =============================================================== ® Intel Server Board or System: (Example: S5000PSL or SR6850HW4)
Page 94 Thermal Solution Processor 1 Processor 2 Processor 3 Processor 4 Thermal solution (Heatsink) examples: (1U, Passive w/air ducting, Active w/fan, etc.) =============================================================== Memory: Manufacturer Part Number DRAM Part Number On Intel tested list? ® Intel Server System SR2612UR Service Guide...
Page 95 Operating System Information (Example: RedHat* Enterprise Linux, Microsoft* Windows* Server 2003, Service pack 1, OEM CD): Manufacturer: Version: Language version (English, Arabic, Chinese (Simplified)): Service Pack Level or Kernel Revision: Distribution (OEM/Retail): =============================================================== ® Intel Server System SR2612UR Service Guide...
Page 96 ® Intel RAID Controller: (Example SRCU42E) RAID controller part number (PBA number): RAID controller firmware version: Has the latest RAID firmware been tried? (Yes/No): RAID driver version: Has the latest RAID driver been tried? (Yes/No): RAID volumes configuration (disks & RAID level):...
Page 97 =============================================================== Issue impact statements: Do you have any potential Intel system, or component purchases that this issue is holding up? If yes, please provide a brief description below. Do you have systems already purchased that are not being delivered to your customers because of this issue? If yes, please provide a brief description below.
Page 98 ® Intel Server System SR2612UR Service Guide...
Page 99: Appendix C: Led Decoder
Appendix C: LED Decoder Appliance Status ® On the right front side of the Intel Server System SR2612UR are four LEDs which indicate the status of the appliance. Figure 78. LED Statuses The following table describes what each LED indicates: When a failure occurs within the system, the System Fault LED illuminates.
Page 100: Monitoring The Disk Drives
Each populated disk drive carrier has three LEDs that indicate the status of the disk drive, as described in the following table. Figure 80. Disk Drive LEDs Table 6. LED Status for the Disk Drive Condition Color Not Used ® Intel Server System SR2612UR Service Guide...
Page 101: Audible Alarm
The power supply alarm sounds if a power supply has failed or is not properly seated. Note: You can also use the LSI MegaRaid software supplied with the RAID controller to manage and monitor the system configuration. LSI MegaRaid is a trademark of LSI Corporation. ® Intel Server System SR2612UR Service Guide...
Page 102 ® Intel Server System SR2612UR Service Guide...
Page 103: Appendix D: Getting Help
— A searchable knowledgebase to search for product information throughout the support site 2. If you are still unable to obtain a solution to your issue, send an email to Intel’s technical support center using the online form available at http://supportmail.intel.com/scripts-emf/welcome.aspx...
Page 104 ® Intel Server System SR2612UR Service Guide...
Page 105: Appendix E: Regulatory And Certification Information
(or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.
Page 106: Product Emc Compliance - Class A Compliance
AS/NZS CISPR 22 Emissions (Australia / New Zealand) • BSMI CNS13438 Emissions (Taiwan) • GOST R 29216-91 Emissions (Russia) • GOST R 50628-95 Immunity (Russia) • Ukraine Certification (Ukraine) • KCC MIC Notice No. 1997-41 (EMC) & 1997-42 (EMI) (Korea) ® Intel Server System SR2612UR Service Guide...
Page 107: Product Ecology Compliance
Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide regulatory requirements. A Material Declaration Data Sheet is available for Intel products. For more reference on material restrictions and compliance you can view Intel's Environmental Product Content Specification at http://supplier.intel.com/ehs/environmental.htm.
Page 108 • KCC Certification (Korea) • IRAM Certification (Argentina) • Ecology Declaration (International) • China RoHS Environmental Friendly Use Period • Packaging & Product Recycling Marks ® Intel Server System SR2612UR Service Guide...
Page 109: Product Regulatory Compliance Markings
Product Regulatory Compliance Markings This Intel Server Chassis product if provided with the following regulatory and safety markings. In the event there is no room for a marking(s) on the chassis, the information is provided here in this guide Table 8. Product Regulatory Compliance Markings...
Page 110 EMC Marking (Class A) Canada CANADA ICES-003 CLASS A VCCI Marking (Class Japan BSMI Certification Taiwan Number & Class A Warning GOST R Marking Russia MO04 KCC Mark (Korean Korea Communications Commission 인증번호 : CPU-SR2612 (A) ® Intel Server System SR2612UR Service Guide...
Page 111 This notice is required by California Code of Regulations, Title 22, Division 4.5, and Chapter 33: Best Management Practices for Perchlorate Materials. This product may include a battery which contains Perchlorate material. ® Intel Server System SR2612UR Service Guide...
Page 112 "WARNING:" Proper Ground "Apparaten skall anslutas till jordat uttag, när Outlet den ansluts till ett nätverk." "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan." "Connect only to a properly earth grounded outlet." Safety Stand-by power ® Intel Server System SR2612UR Service Guide...
Page 113: Rack Mount Installation Guidelines
Location in accordance with articles 110-16, 110-17, and 110-18 of the National Electric Code, ANSI/NFPA 70. The DC source must be electrically isolated by double or reinforced insulation from any hazardous AC source. ® Intel Server System SR2612UR Service Guide...
Page 114: Power Cord Usage Guidelines
Connector, server end: The connectors that plug into the AC receptacle on the server must be an approved IEC (International Electrotechnical Commission) 320, sheet C13, type female connector. • Cord length and flexibility: Cords must be less than 4.5 meters (14.76 feet) long. ® Intel Server System SR2612UR Service Guide...
Page 115: Electromagnetic Compatibility Notices
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions related to the EMC performance of this product, contact: Intel Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124-6497 1-800-628-8686 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 116: Ices-003 (Canada)
Interference (VCCI) from Information Technology Equipment. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. ® Intel Server System SR2612UR Service Guide...
Page 117: Bsmi (Taiwan)
Interchanging or use of other components will void the UL listing and other product certifications and approvals. Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder ®...
Page 118 If you do not have access to Intel's Web address, please contact your local Intel representative. • Server Chassis: (base chassis is provided with power supply and fans) - NRTL listed. • Server board: you must use an Intel server board - UL recognized.
Page 119: Appendix F: Installation/Assembly Safety Instructions
5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap attached to chassis ground of the system-any unpainted metal surface-when handling components. 6. Do not operate the system with the chassis covers removed. ® Intel Server System SR2612UR Service Guide...
Page 120 Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Dispose of used batteries according to manufacturer's instructions. ® Intel Server System SR2612UR Service Guide...
Page 121: Deutsch
Netzgerät ein eigenes Netzkabel. Der Wechselstrom des Systems wird durch den Ein-/Aus-Schalter für Gleichstrom nicht ausgeschaltet. Ziehen Sie jedes Wechselstrom-Netzkabel aus der Steckdose bzw. dem Netzgerät, um den Stromanschluß des Systems zu unterbrechen. ® Intel Server System SR2612UR Service Guide...
Page 122 4. Bringen Sie die Verschlußeinrichtung (Padlock) wieder an und schließen Sie diese, um ein unerlaubtes Öffnen des Systems zu verhindern. 5. Schließen Sie alle externen Kabel und den AC Stromanschlußstecker Ihres Systems wieder an. ® Intel Server System SR2612UR Service Guide...
Page 123: Français
Français Le bloc d'alimentation de ce produit ne contient aucune pièce pouvant être réparée par l'utilisateur. Ce produit peut contenir plus d'un bloc d'alimentation. Veuillez contacter un technicien qualifié en cas de problème. ® Intel Server System SR2612UR Service Guide...
Page 124 Procédez comme suit: 1. Si un cadenas a été installé sur à l'arrière du système, déverrouillez-le et retirez-le. 2. Retirez toutes les vis des panneaux et mettez-les dans un endroit sûr. 3. Retirez les panneaux. ® Intel Server System SR2612UR Service Guide...
Page 125 • "Muni d'une prise murale correctement mise à la terre. • "Suffisamment spacieux pour vous permettre d'accéder aux câbles d'alimentation (ceux-ci étant le seul moyen de mettre le système hors tension). ® Intel Server System SR2612UR Service Guide...
Page 126: Español
- o a cualquier tipo de superficie de metal sin pintar. 6. No ponga en marcha el sistema si se han extraído las tapas del chasis. ® Intel Server System SR2612UR Service Guide...
Page 127 Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante. ® Intel Server System SR2612UR Service Guide...
Page 128 • "Provisto de una toma de tierra correctamente instalada. • "Provisto de espacio suficiente como para acceder a los cables de alimentación, ya que éstos hacen de medio principal de desconexión del sistema. ® Intel Server System SR2612UR Service Guide...
Page 129: Italiano
1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. ® Intel Server System SR2612UR Service Guide...
Page 130 • "Dotata di una presa a muro correttamente installata. • "Dotata di spazio sufficiente ad accedere ai cavi di alimentazione, i quali rappresentano il mezzo principale di scollegamento del sistema. ® Intel Server System SR2612UR Service Guide...
Page 131: System Specifications
System Specifications ® This appendix lists the system specifications for the Intel Server System SR2612UR. System Server ® • Intel Tylersburg chipset (IOH36D, ICH10R) ® ® • CPUs: Up to two dual- or quad-core Intel Xeon Nehalem EP processors • Up to 12 DDR3 RDIMMs 1333Mhz (96GB max) •...
Page 132: Disk Drives
• External: 3.5-inch SAS and SATA HDDs • Internal: 2.5-inch SATA HDDs/SSDs (single or dual) • Rotational speed: 7200 RPM, 10K RPM, and 15K RPM • Interface: 3 Gb SAS; 3 Gb/1.5 Gb SATA ® Intel Server System SR2612UR Service Guide...
Page 133: Operating Environment
• Temperature: -40° to 70°C • Relative humidity: 5% to 95% (non-condensing) • Altitude: -200 to 40,000 ft. • Shock: 10G at 11ms, 1/2 sine wave pulse • Vibration: 0.5G at 5Hz to 400Hz ® Intel Server System SR2612UR Service Guide...
Page 134: Safety Standards
• Manufactured under an ISO 9002 registered quality system Environmental Protection • RoHS and WEEE compliant Failure Notifications • SCSI Enclosure Services (SES-2) over I2C physical interface, LEDs, audible alarms, field replaceable unit (FRU) revision and serial number reporting ® Intel Server System SR2612UR Service Guide...
Page 135 • Temperature, power supply modules, fan speed control, disk drives and I/O module(s), as well as error rates and quality of service Qualifications For Newisys qualifications relative to supported options for specific disk drives, software application environments, PCI adapters, and so on, go to www.newisys.com/support ® Intel Server System SR2612UR Service Guide...
Page 136 ® Intel Server System SR2612UR Service Guide...
Page 137: G Safety Information
English Server Safety Information ® ® This document applies to Intel server boards, Intel server chassis and installed peripherals. To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in this guide before ®...
Page 138: Intended Application Uses
Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. Equipment Handling Practices Reduce the risk of personal injury or equipment damage: • Conform to local occupational health and safety requirements when moving and lifting equipment. ® Intel Server System SR2612UR Service Guide...
Page 139: Power And Electrical Warnings
Do not attempt to modify or use an AC power cord if it is not the exact type required. A separate AC cord is required for each compute module power supply. ® Some power supplies in Intel servers use Neutral Pole Fusing. To avoid risk of shock use caution when working with power supplies that use Neutral Pole Fusing.
Page 140: Electrostatic Discharge (Esd)
Check first to make sure you have not left loose tools or parts inside the chassis • Check that cables, add-in boards, and other components are properly installed. • Attach the covers to the chassis according to the product instructions. ® Intel Server System SR2612UR Service Guide...
Page 141: Deutsch
Return to manufacturer for servicing Deutsch Sicherheitshinweise für den Server ® ® Das vorliegende Dokument bezieht sich auf Intel Serverplatinen, Intel Servergehäuse (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten.
Page 142: Zielbenutzer Der Anwendung
Telekommunikationskabel zum Modem abziehen. • Eine ordnungsgemäß geerdete Wandsteckdose muß vorhanden sein. • Ausreichender Freiraum für den Zugang zu den Netzkabeln, da diese die Hauptvorrichtung zum Trennen des Produkts von der Stromversorgung sind. ® Intel Server System SR2612UR Service Guide...
Page 143: Handhabung Von Geräten
Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. ® Intel Server System SR2612UR Service Guide...
Page 144: Warnungen Zu Netzspannung Und Elektrizität
Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...
Page 145: Elektrostatische Entladungen (Esd)
Ausbau aus dem Server mit der Bauelementseite nach oben auf eine geerdete, statisch entladene Unterlage.Verwenden Sie dazu, sofern verfügbar, eine leitfahige Schaumstoffunterlage, aber niche die Schutzhülle der Platine. Ziehen Sie die Platine nicht über eine Fläche. ® Intel Server System SR2612UR Service Guide...
Page 146: Andere Gefahren
• Öffnen Sie keinesfalls das Gehäuse von Laser-Peripheriegeräten oder Laser- Komponenten. • Laser-Peripheriegeräte oder -Komponenten besitzen keine für den Benutzer wartungsbedürftigen Teile. • Schicken Sie das Gerät für Wartungsarbeiten an den Hersteller zurück. ® Intel Server System SR2612UR Service Guide...
Page 147: Français
® d’installer ou de mettre à jour votre produit serveur Intel En cas de conflit entre les informations fournies dans ce document et celles livrées avec le produit ou publiées sur le site Web pour un produit particulier, la documentation du produit prime.
Page 148: Domaines D'utilisation Prévus
• Utilisez l’assistance mécanique ou toute autre assistance appropriée lorsque vous déplacez et soulevez le matériel. • Pour réduire le poids en vue de faciliter la manipulation, retirez tout composant amovible. ® Intel Server System SR2612UR Service Guide...
Page 149: Alimentation Et Avertissements En Matière D'électricité
Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.
Page 150: Décharges Électrostatiques (Esd)
Afin de permettre une ventilation et un refroidissement corrects, ne mettez le système en marche que lorsque les panneaux du châssis sont en place. L’utilisation du système sans les panneaux peut endommager les composants système. Pour installer les panneaux : ® Intel Server System SR2612UR Service Guide...
Page 151: Español
Retournez-les au fabricant en cas de problème. Español Información de seguridad del servidor ® Este documento se aplica a las tarjetas de servidor de Intel , los gabinetes de servidor de ® Intel (montaje en rack y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento y...
Page 152: Aplicaciones Y Usos Previstos
Bien ventilada y alejada de fuentes de calor, incluida la luz solar directa y los radiadores. • Alejada de fuentes de vibración o de golpes físicos. • Aislada de campos electromagnéticos producidos por dispositivos eléctricos. ® Intel Server System SR2612UR Service Guide...
Page 153: Manipulación Del Equipo
CA estén desenchufado antes de abrir le gabinete, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques eléctricos use precauciones al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.
Page 154: Advertencias El Acceso Al Sistema
A no ser que esté instalando o extrayendo un componente de conexión en funcionamiento, deje que el sistema se enfríe antes de abrir las cubiertas. Para que no llegue a tocar los componentes que estén calientes cuando esté realizando una instalación ® Intel Server System SR2612UR Service Guide...
Page 155: Descarga Electrostática (Esd)
Compruebe primero que no ha dejado herramientas o piezas sueltas dentro del sistema. • Compruebe que los cables, tarjetas adicionales y otros componentes están instalados correctamente. • Sujete las cubiertas a la carcasa siguiendo las instrucciones del producto. ® Intel Server System SR2612UR Service Guide...
Page 156 Precaución: Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare. ® Intel Server System SR2612UR Service Guide...
Page 157 服务器机箱（基座和机架固定件）和已安装的外设。为减少人身伤害、电击、火灾以及设备毁坏的危险，请在安装或维护 Intel® 服务器产品之前阅读本文档并遵循本指南中的所有警告和预防措施。...
Page 158 ® Intel Server System SR2612UR Service Guide...
Page 159 ® Intel Server System SR2612UR Service Guide...
Page 160 ® Intel Server System SR2612UR Service Guide...
Page 161 ® Intel Server System SR2612UR Service Guide...
Page 162 ® Intel Server System SR2612UR Service Guide...

Intel SR2612UR - Server System - 0 MB RAM Service Manual

Preface

Safety Information

Chapter 1: Server System Contents and References

Chapter 2: Server System Features

Chapter 3: Hardware Installations and Upgrades

Chapter 4: Server Utilities

Appendix A: Drive Installation in the Drive Carrier

Appendix B: Intel ® Server Issue Report Form

Appendix C: LED Decoder

Appendix D: Getting Help

Appendix E: Regulatory and Certification Information

Appendix F: Installation/Assembly Safety Instructions

G Safety Information

Quick Links

Need help?

Questions and answers

Related Manuals for Intel SR2612UR - Server System - 0 MB RAM

Summary of Contents for Intel SR2612UR - Server System - 0 MB RAM

Table of Contents
