Installing the Front Top Cover
To install the front top cover, follow these instructions:
1. Attach the front top cover to the chassis (A in Figure 61).
2. Lower the cover (B in Figure 61).
3. Tighten the two captive screws on either side of the cover (C in Figure 61).
B
A
C
OM12940

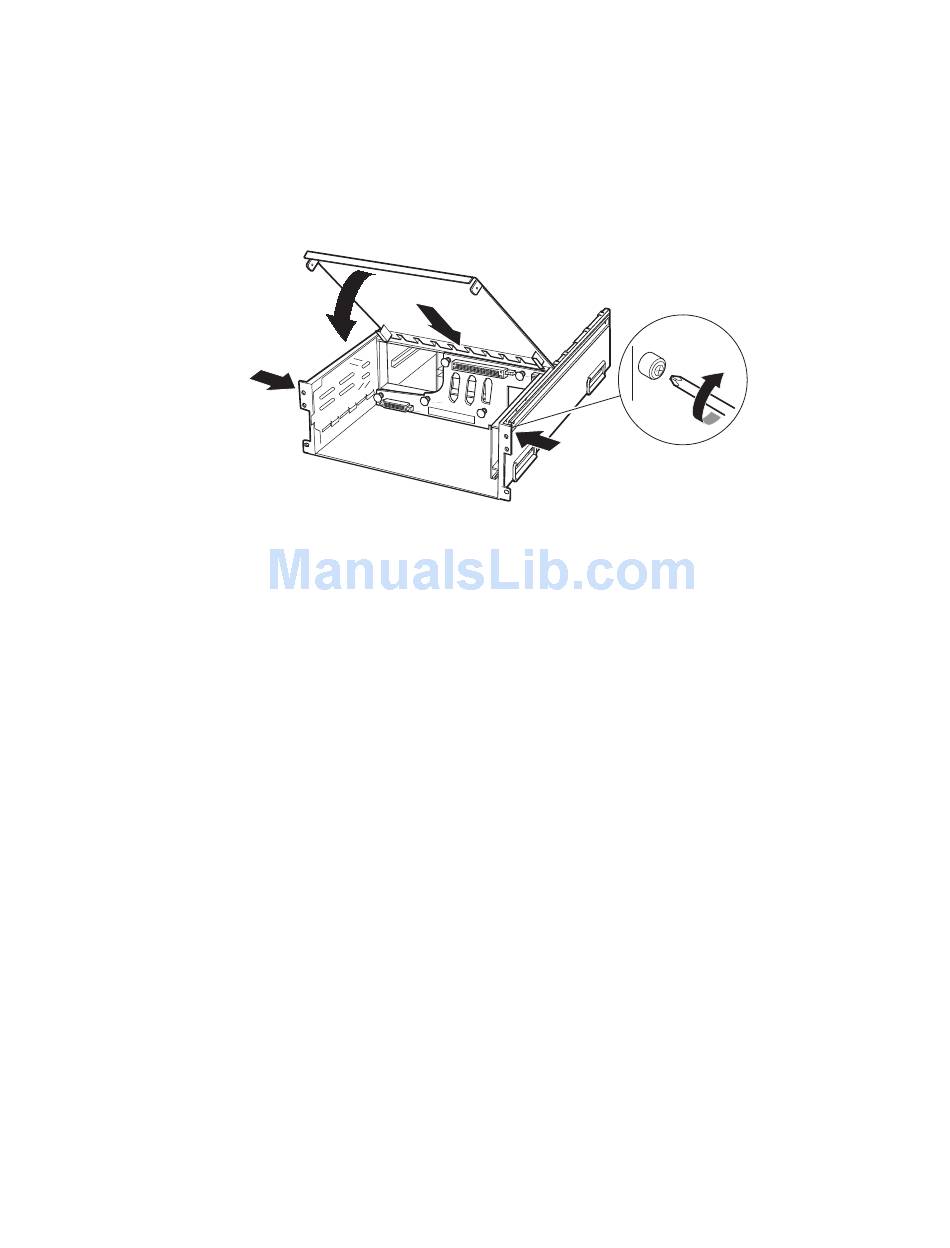

Figure 61. Installing the Front Top Cover
Intel® SR870BN4 Server System Product Guide
185
