Installing the DVD/CD-ROM Drive in the Drive Carrier

1. Remove the new drive from its protective wrapper, and place it component-side down on a
clean ESD-protected work surface.
2. Record the drive model and serial numbers in your equipment log (Appendix B Equipment Log
and Configuration Worksheet).
3. Place the drive (A in Figure 116) and the drive carrier as shown.
4. Assemble the drive in the drive carrier by spreading the sides of the drive carrier (B in
Figure 116) and placing the carrier over the drive.
5. Verify the all four of the tabs in the drive carrier (C in Figure 116) align with the corresponding
holes in the drive.
6. Plug the adapter board (D in Figure 116) into the rear of the drive by hooking the end of the
adapter board into the retaining notch in the drive carrier (see arrow E in Figure 116), and
snapping the adapter board into position under the notch at the opposite end (F in Figure 116).
7. Assemble the drive carrier (G in Figure 116) in the EMI shield (H in Figure 116) and verify
that the four metal tabs (two on each side of the EMI shield) are aligned with the notches in the
drive carrier (I in Figure 116).
B
G

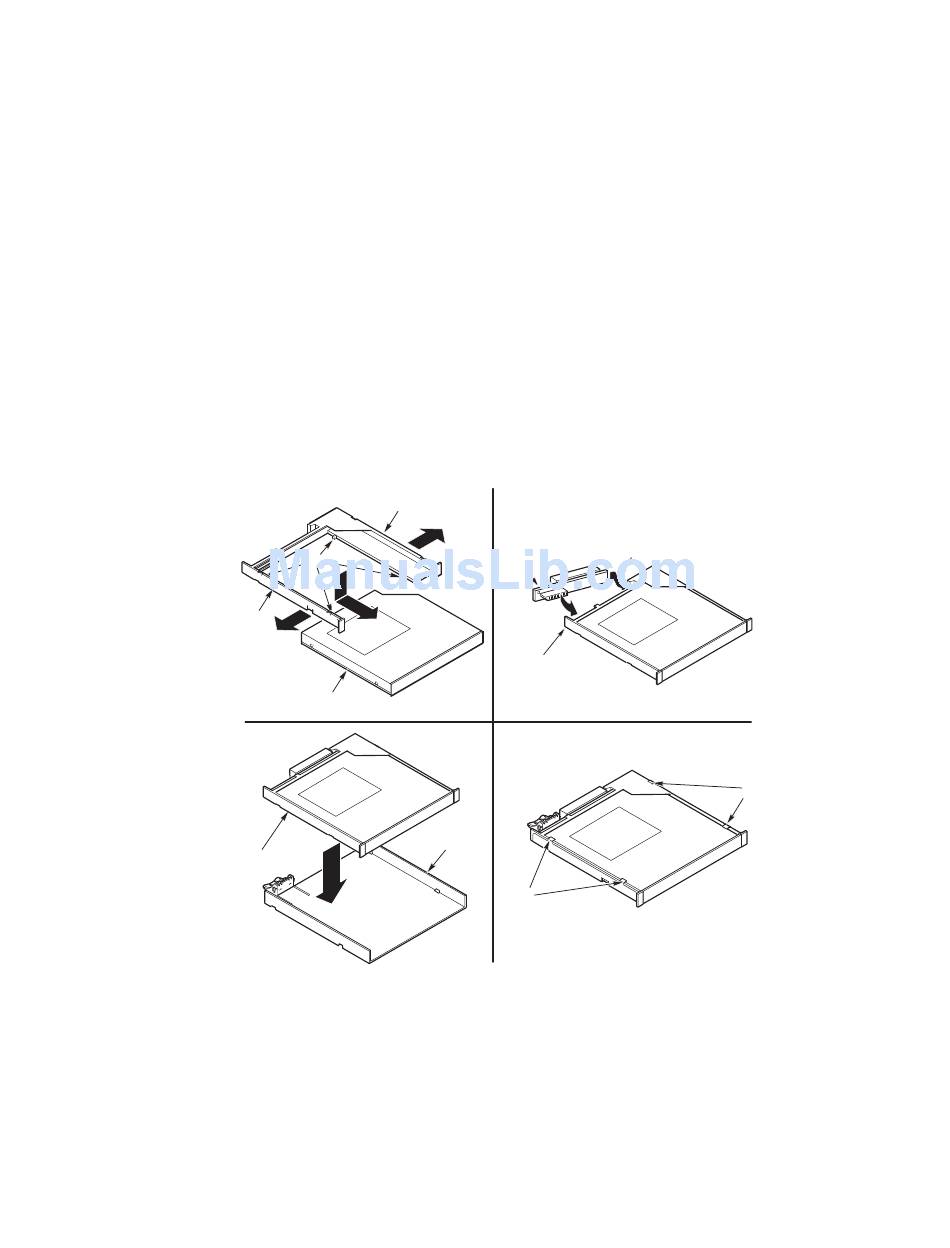

Figure 116. Assembling the DVD/CD-ROM Drive and Carrier
8. When the drive carrier is fully assembled, slide it rearward into the peripheral bay such that the
blue tab aligns with the corresponding notch in the peripheral bay.
9. Verify that the sheet metal feature next to the blue latch engages the peripheral bay completely.
10. Install the peripheral bay in the chassis.
Intel® SR870BN4 Server System Product Guide
B
C
A
H
E
D
F
I
I
OM12950
