Removing the LS-240 Disk Drive from the Drive Carrier

1. Position the carrier assembly label-side up as shown in the upper left panel of Figure 111.
2. Using a small screwdriver, pry the EMI shield (A in Figure 111) far enough apart to free the
side tabs (B in Figure 111).
3. Lift the drive carrier (C in Figure 111) from the EMI shield. Use care not to bend the
EMI shield.
4. Spread the plastic tab (D in Figure 111) to free the end of the adapter board. Rotate the adapter
board (E in Figure 111) as shown to unplug it from the LS-240 drive and free it from the drive
carrier.
5. Carefully spread the sides of the drive carrier assembly (F in Figure 111) to free the dimples
(G in Figure 111) so that the drive (H in Figure 111) can be removed.
6. Place the drive in an antistatic protective wrapper.
A
B
D

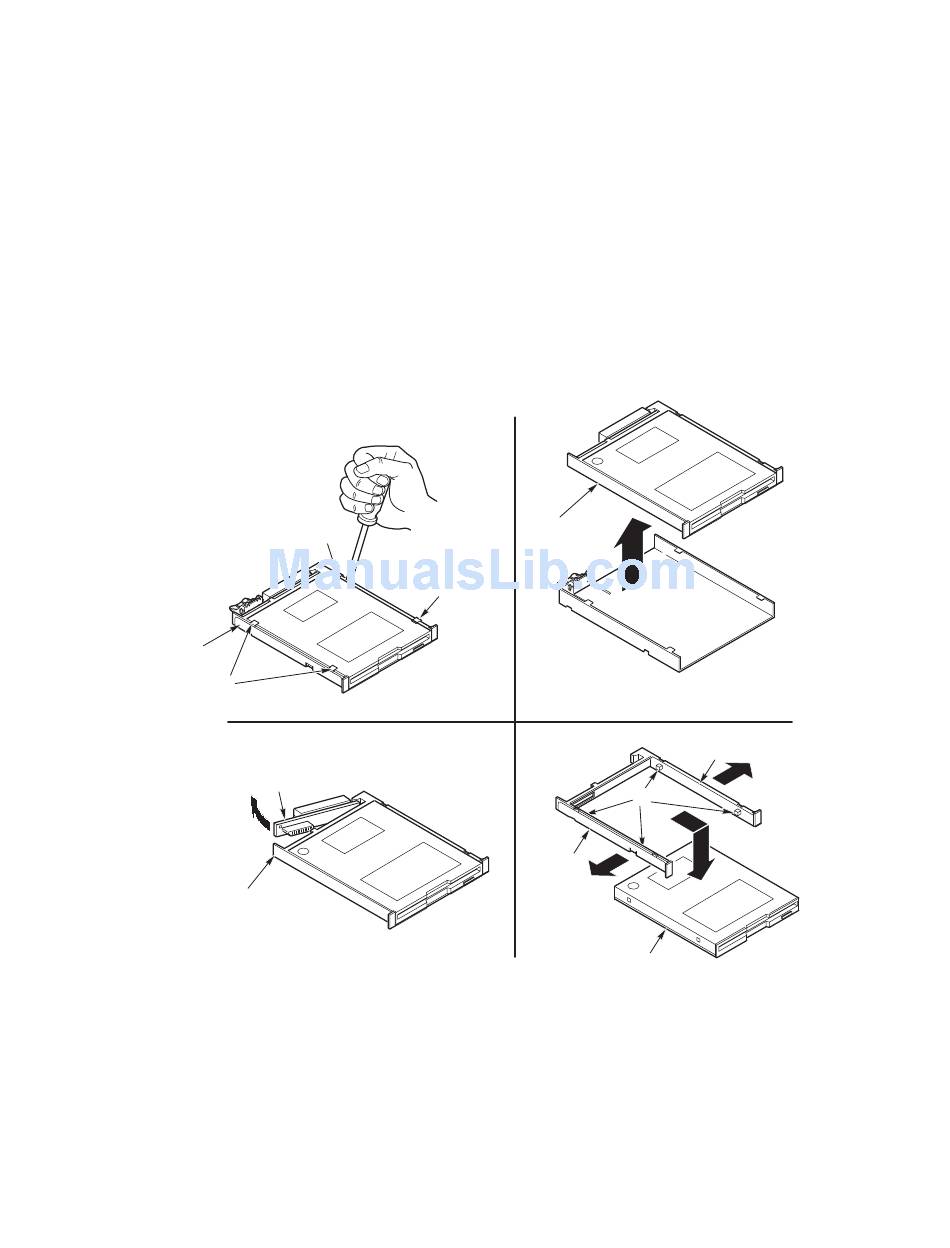

Figure 111. Removing the LS-240 Diskette Drive from the Carrier
236
B
B
E
C
G
F
H
Intel® SR870BN4 Server System Product Guide
F
OM12956
