Processor/Memory Subsystem Serviceability Status Indicators
The serviceability status indicators contained in the processor/memory subsystem are shown in
Figure 7 and described in Table 5. To view these indicators, remove the front bezel.

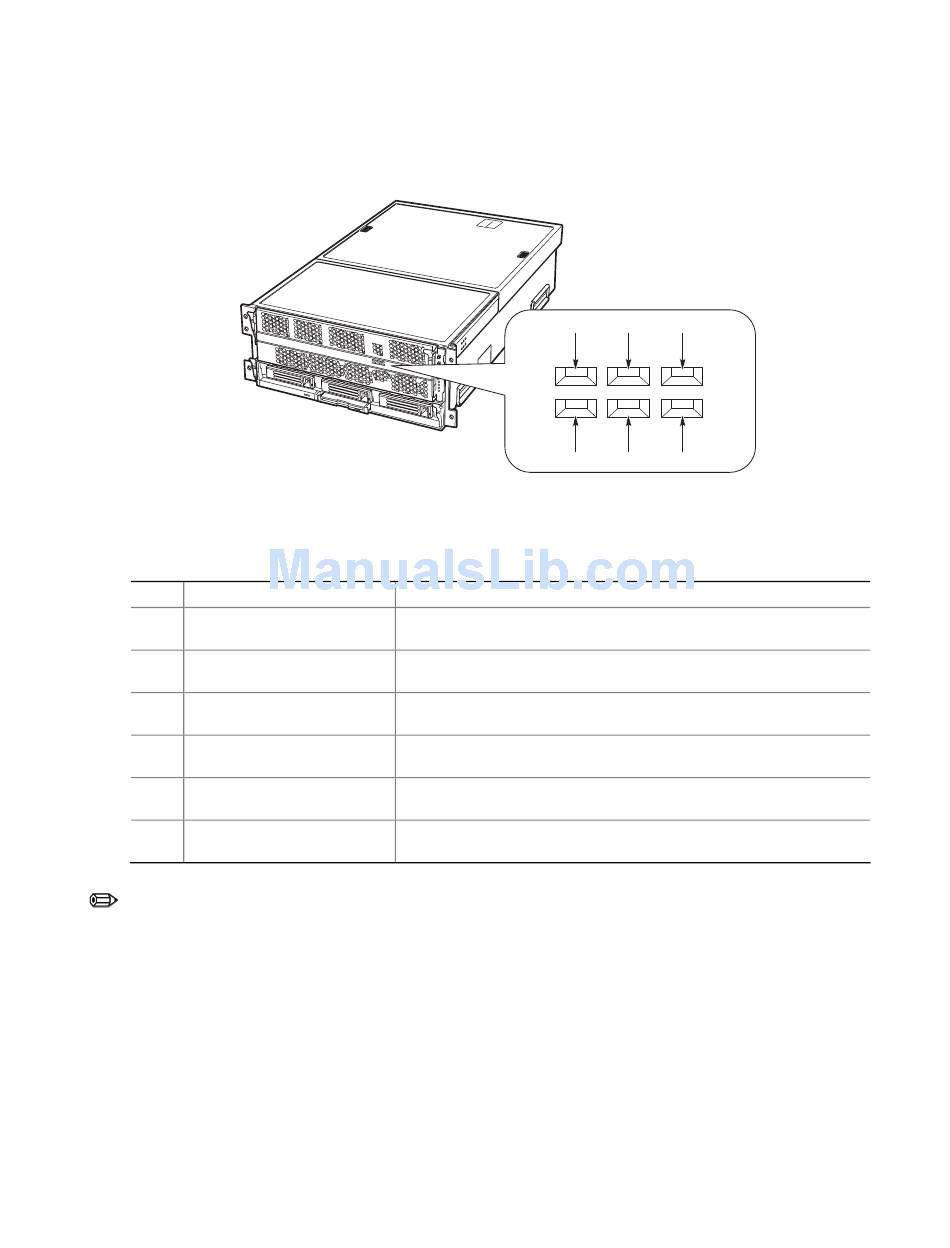

Figure 7. Location of Processor/Memory Subsystem Serviceability Indicators
Table 5. Processor/Memory Subsystem Serviceability Indicator Details
Item Feature
A Processor 1 Present (green)
B Processor 2 Present (green)
C Processor 3 Present (green)
D Processor 4 Present (green)
E Memory Board 1 Interlock to
Processor Board (green)
F Memory Board 2 Interlock to
Processor Board (green)
NOTE
Two additional LEDs (Green and Amber) and a switch appear on the left side
of the processor board. These components are not implemented in the
SR870BN4 system and are not visible or accessible through the front bezel.
26
A
B
Description
On – Processor 1 is present and installed properly
Off – Processor 1 not detected
On – Processor 2 is present and installed properly
Off – Processor 2 not detected
On – Processor 3 is present and installed properly
Off – Processor 3 not detected
On – Processor 4 is present and installed properly
Off – Processor 4 not detected
On – Memory board 1 is inserted properly into the processor board
Off – Memory board 1 to processor board interlock not detected
On – Memory board 2 is inserted properly into the processor board
Off – Memory board 2 to processor board interlock not detected
Intel® SR870BN4 Server System Product Guide
C E
D F
OM12896
