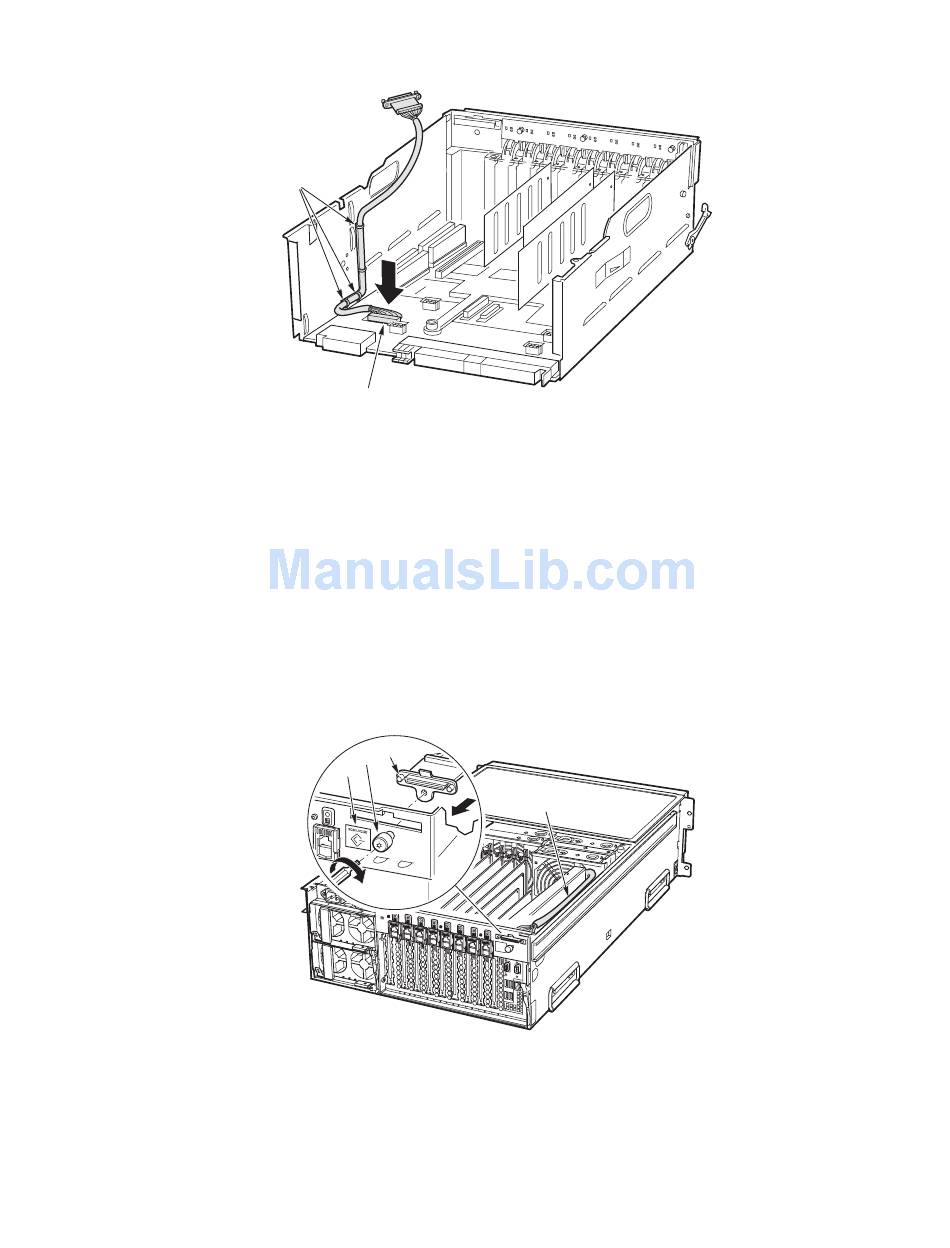

Figure 81. Installing the Three-tab "L" Bracket and Connecting the Short End of the Cable
11. Install the fan assembly and secure with the two captive screws.
12. Insert the four cooling fans.
13. Install the I/O riser card. Verify that the I/O riser card slides into the card guide mounted on
the fan assembly before tightening the captive screw.
14. Install the I/O riser bracket and secure with the captive screw.
15. Route the external SCSI cable along the channel in the top of the I/O riser bracket (A in
Figure 82) to the back panel.
16. Install the SCSI connector on the cable assembly in the back panel (B in Figure 82) and secure
with the captive screw (C in Figure 82).
17. Install the SCSI Icon Label (A93957-001) on the back panel by removing the backing and
placing as shown (D in Figure 82).
Figure 82. Routing the Cable and Installing the External SCSI Connector
18. Install any PCI cards removed during previous steps.
204
B
B
C
D
