Installing the Power Distribution Board
To install the power distribution board:
1. Place the power distribution board in the power supply bay as shown (A in Figure 122).
2. Tighten the captive screw inside the front of the power supply bay to secure the power
distribution board (B in Figure 122).
3. Install the power supply bay in the chassis.
4. Install the hot-swap power supplies.
5. Install the I/O bay in the chassis.
6. Install the back top cover on the chassis.
B
A
OM12967

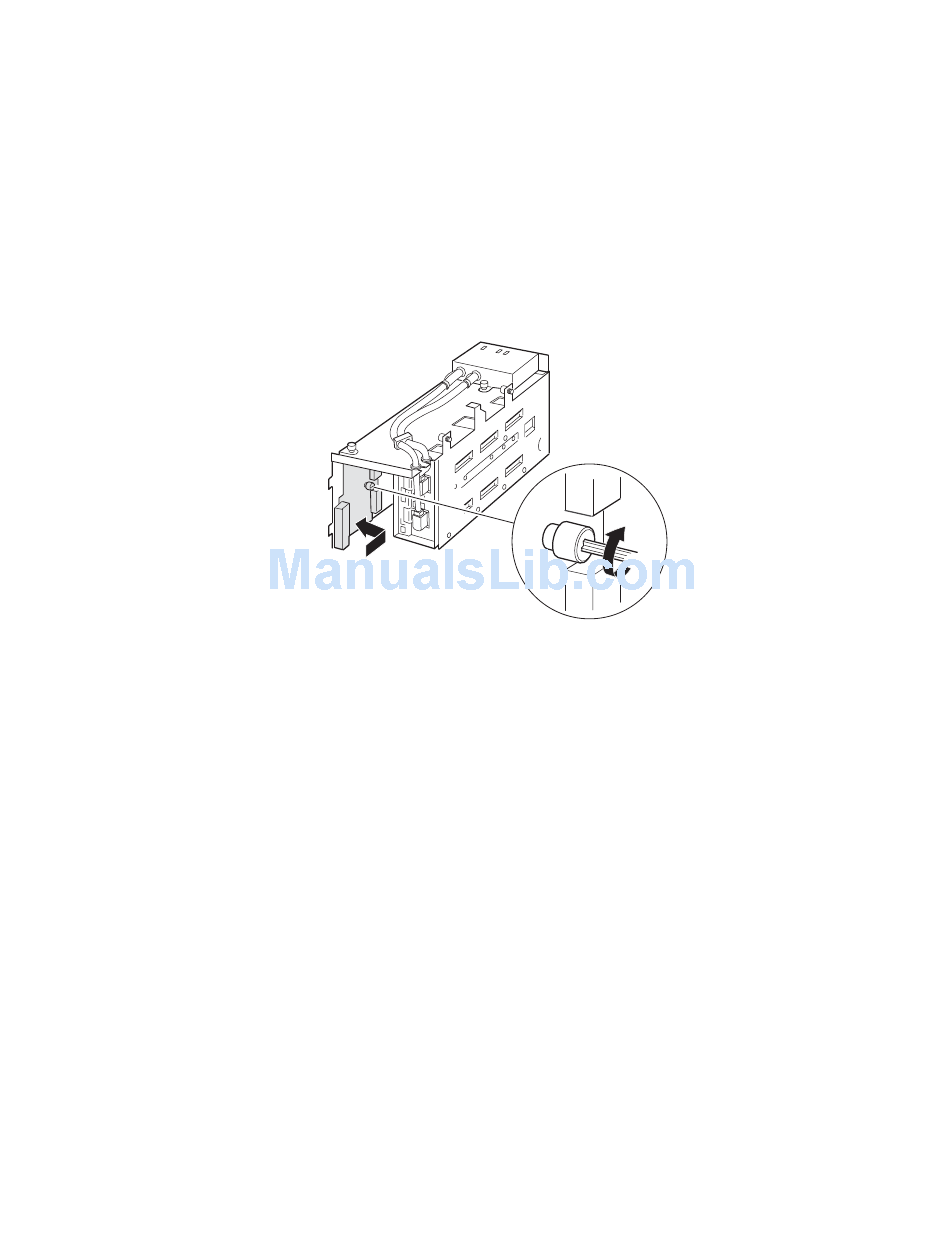

Figure 122. Installing the Power Distribution Board
Intel® SR870BN4 Server System Product Guide
