Edit Event Filter Settings
The screen shown below is displayed after the Edit button is clicked on the Event Filters Settings
screen.
After completing this screen, click Ok to return to the Event Filter Setting screen.
Enable Event Filter
The Enable Event Filter enables / disables the selected filter. The filter is enabled when the box is
checked.
Enable Alerts
This check box causes an alert to be sent when an event associated with the selected event filter
occurs. If the box is not checked, or if the global enable for alerts is not enabled, no alert is sent.
Policy Number Associated With This Event Filter
This drop-down box allows the user to specify an alert policy number to be associated with the
event filter. This setting is enabled only if the Enable Alerts box is checked; a valid policy number
must be chosen if alerts are enabled.
The drop-down list shows the valid policy numbers, between 1 and 15. The user will assign policy
numbers to policy table entries when the Configure Policies button is clicked.
Chassis Action Associated With This Event Filter
This drop-down box allows the user to select the chassis action that is associated with the selected
event filter. Chassis actions include power down, power cycle, reset, diagnostic interrupt, and
none. For any chassis action to occur, it must be globally enabled on the Platform Event Filter
Configuration screen.
106

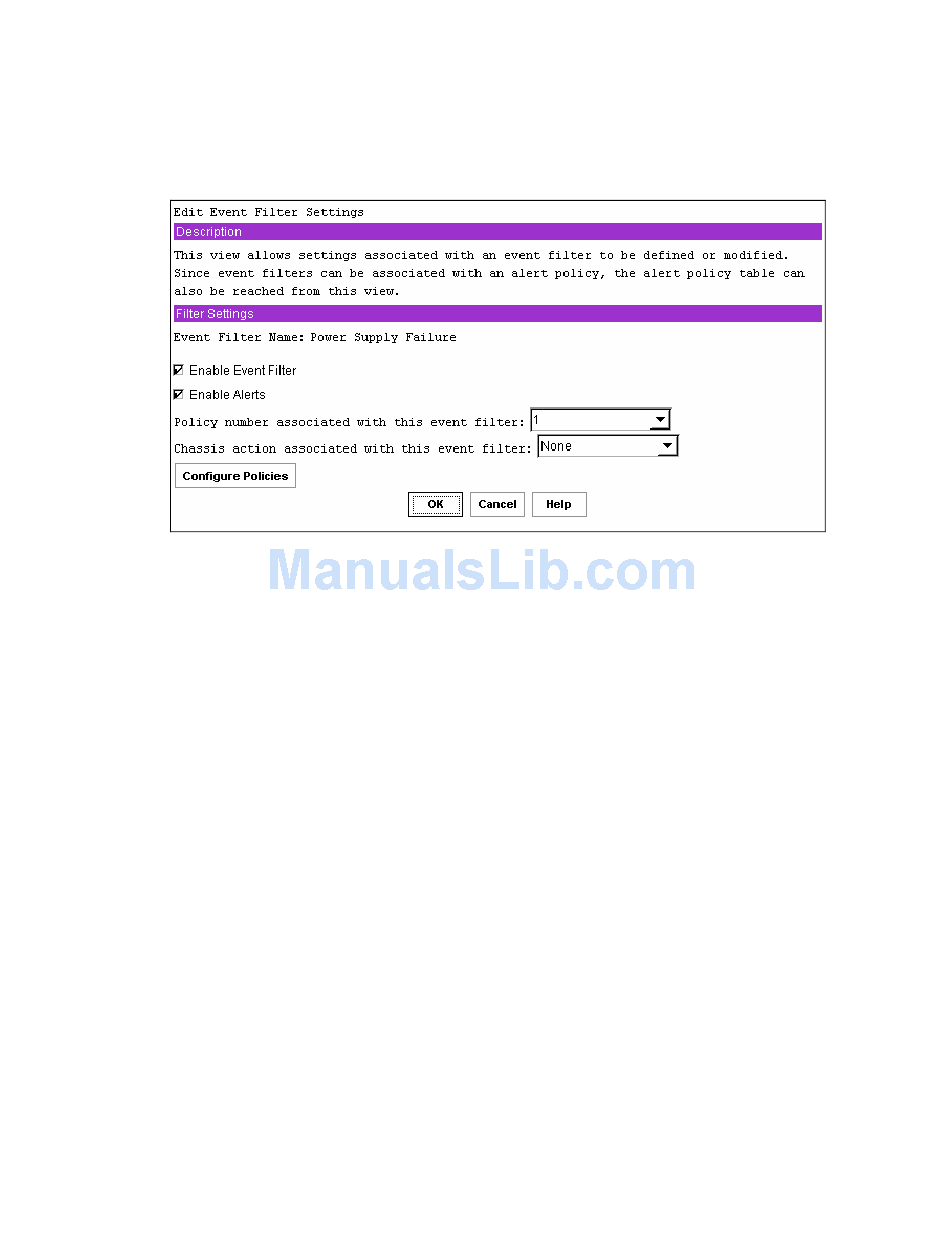

Figure 33. Edit Event Filter Settings
Intel® SR870BN4 Server System Product Guide
