Installing I/O Board DC-to-DC Converters

1. Verify that the connector of the DC-to-DC converter matches the socket type on the baseboard.
CAUTION
Do not exert excessive force if the DC-to-DC converter does not install
easily. Notches in the DC-to-DC converter's connector and corresponding
barriers on the I/O board's sockets prevent incorrect insertion. Forcing the
wrong DC-to-DC converter into a connector can damage the DC-to-DC
converter or the connector.
2. Install the DC-to-DC converters on the I/O board by inserting the converter into the correct
socket and pressing down firmly (A in Figure 69). Be certain the DC-to-DC converter seats
fully in its connector. If the DC-to-DC converter does not seat easily, double-check to see if
the socket matches the type of DC-to-DC converter you're trying to install.
3. Move the two levers as indicated (B in Figure 69) to secure the converter.
4. Install the I/O riser card as described in "Installing the I/O Riser Card" on page 189.

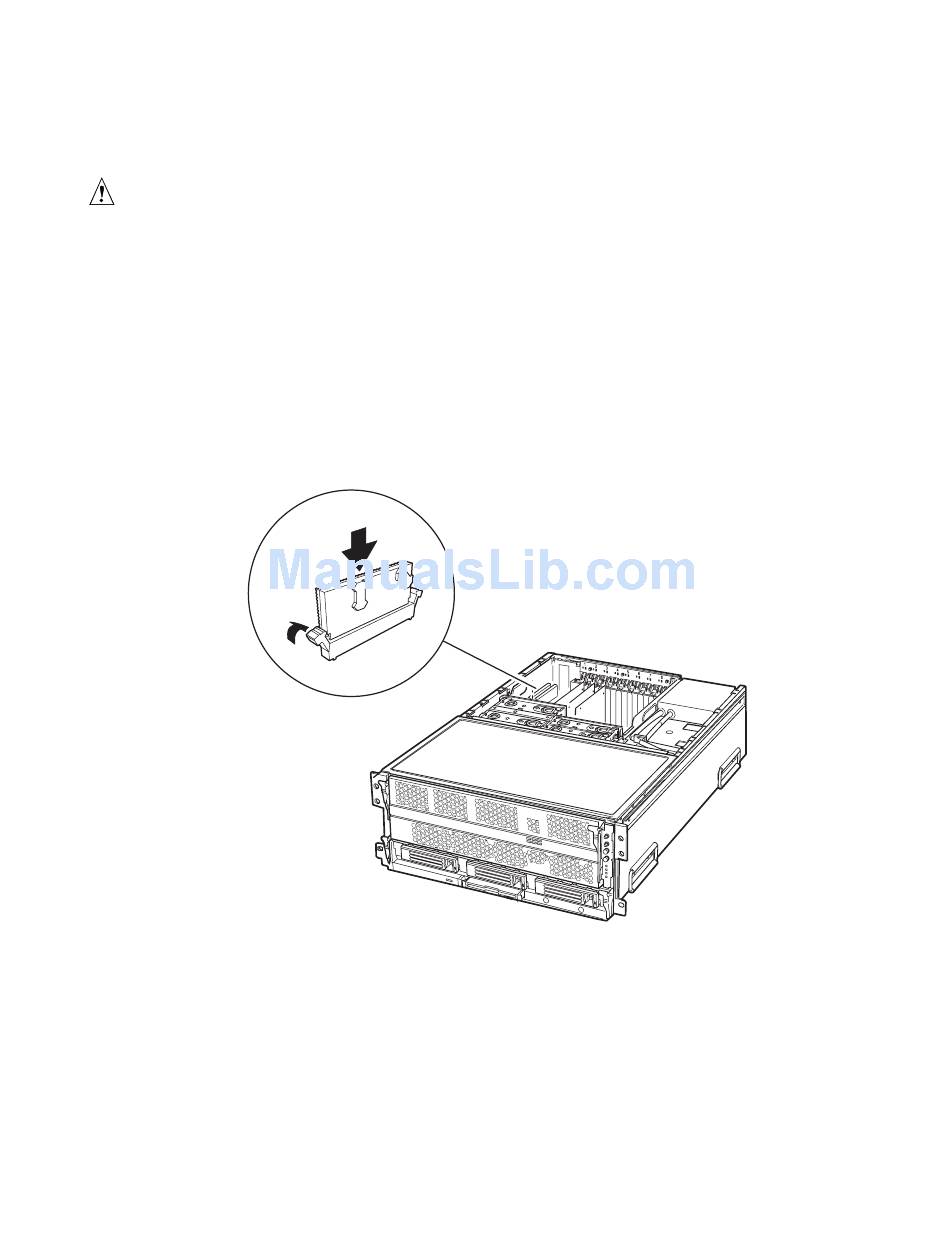

Figure 69. Installing DC-to-DC Converters on the I/O Board
194
A
B
