Installing the AC Input Filter Assembly

To install the AC input filter assembly:
1. Install the two screws securing the grounding terminals (A in Figure 124).
2. Slide the AC filter assembly under the retaining tab feature on top of the power supply bay and
tighten the captive screw (B in Figure 124).
3. Slide the two power cable grommets into their respective slots in the power supply bay (C in
Figure 124).
4. Install the two screws and brackets (D in Figure 124) that secure the two AC plugs in the front
of the power supply bay.
5. Install the power supply bay in the chassis.
6. Install the hot-swap power supplies.
7. Install the I/O bay in the chassis.
8. Install the back top cover.
Intel® SR870BN4 Server System Product Guide
A
D

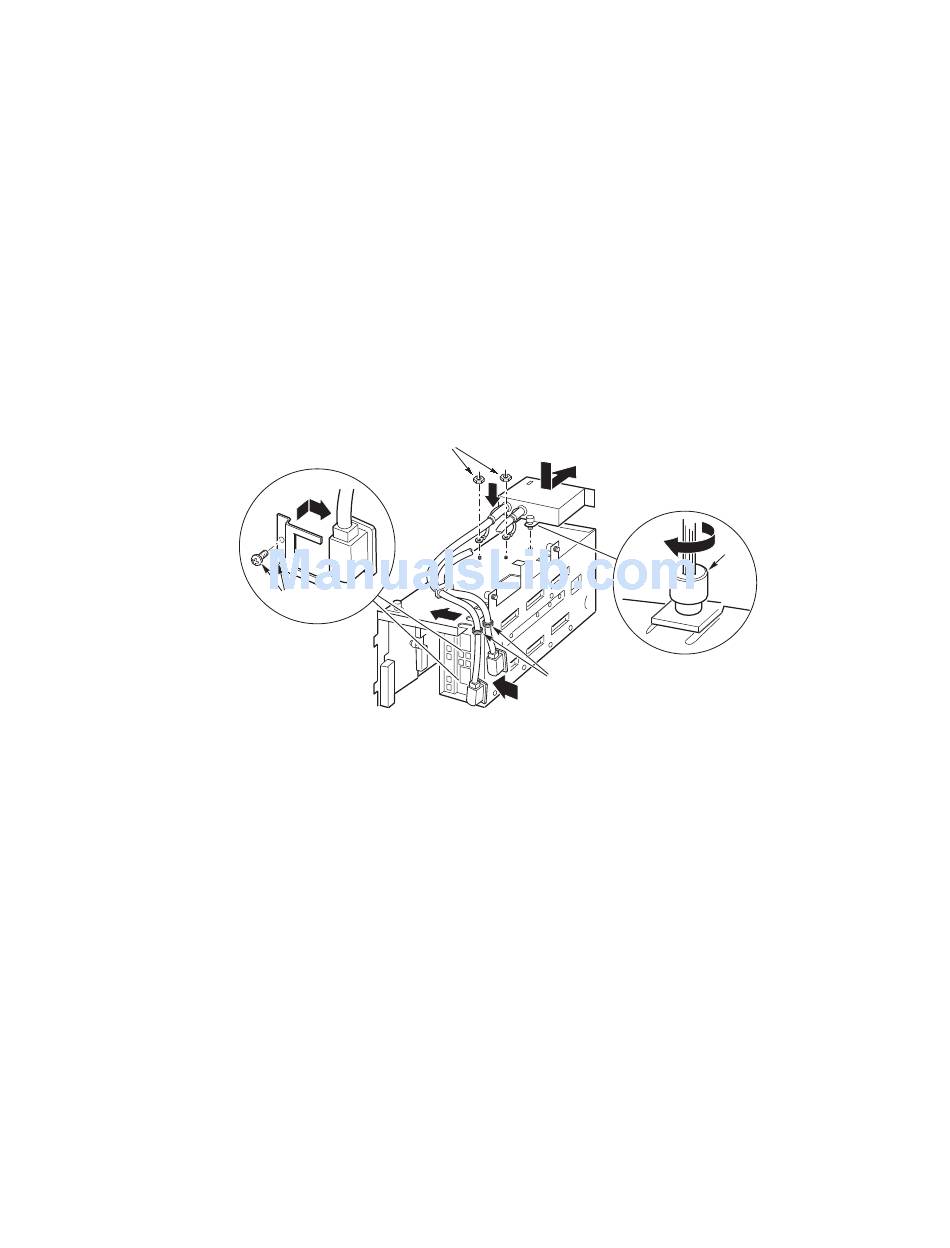

Figure 124. Installing the AC Input Filter Assembly
B
C
OM12965
