Installing the Processor Board

To install the processor board:
1. Place the processor/memory module on a clean, static free work surface primary side up.
2. Open the primary side of the processor/memory module.
3. Place the processor board in the processor/memory module and slide toward the back under the
retaining features as shown (A in Figure 104).
4. Tighten the two captive screws securing the processor board in the processor/memory module
(B Figure 104).
5. Replace the primary side memory board from the processor/memory module as described in
"Replacing Memory Boards" on page 219.
6. Replace the primary side processors, power pods, and thermal blanks as described in
"Replacing Thermal Blanks, Power Pods and Processors" on page 212.
7. Reattach the power Y cable from the processor board.
8. Close the processor/memory module and turn it over to work on the secondary side.
9. Open the processor/memory module and repeat steps 5 through 7 to replace components and
hardware from the secondary side of the processor board.
10. Install the processor/memory module in the chassis.
228
A

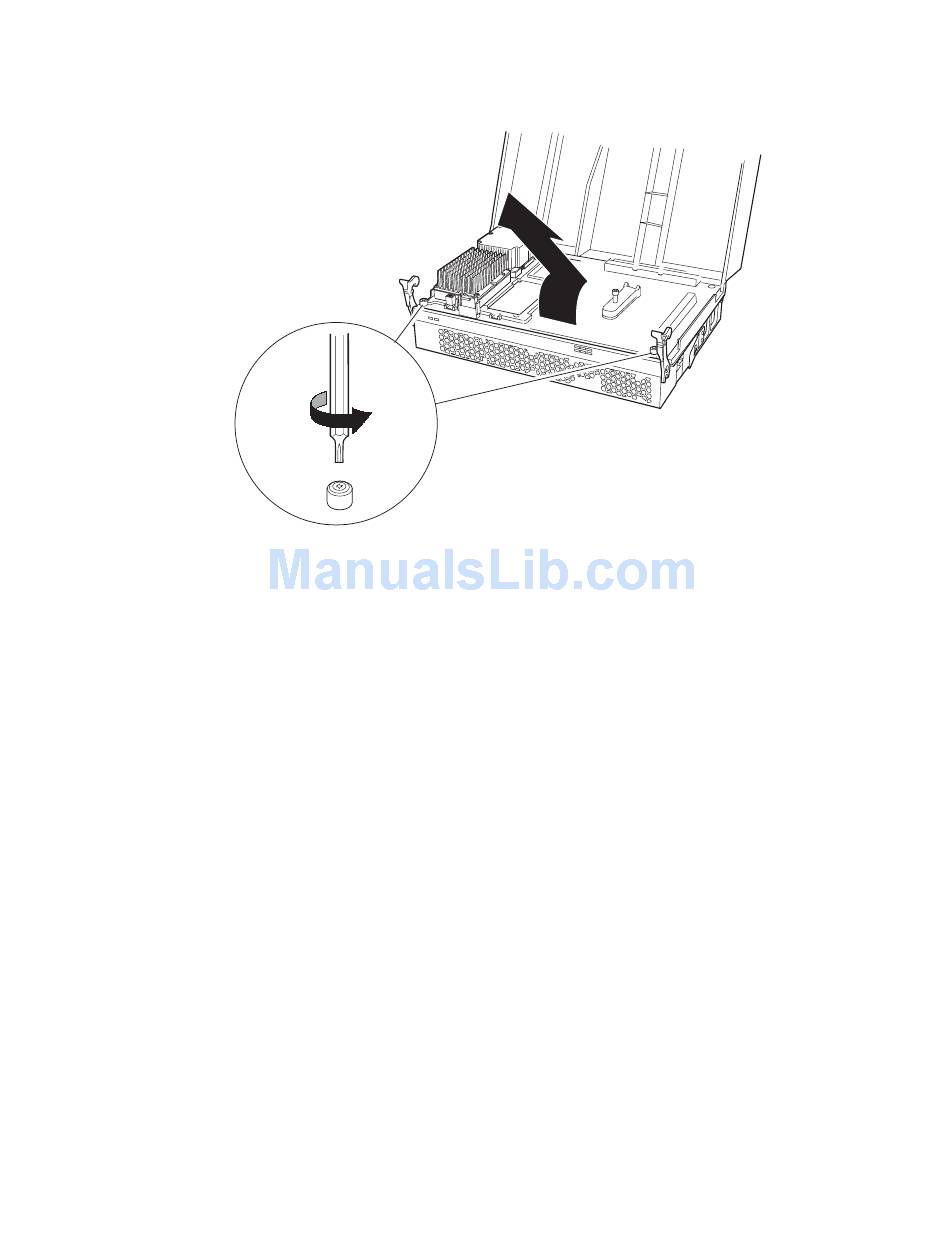

Figure 103. Removing the Processor Board
