7. Position the carrier (B in Figure 108) as shown.
8. Position the drive (A in Figure 108) label-side up with the connector end of the drive (E in
Figure 108) so that it is facing the back of the carrier.
9. Place the drive in the carrier.
10. Align the holes in the drive to the holes in the drive carrier slide track (C in Figure 108) insert
the screws (D in Figure 108) that were previously removed, and attach the carrier to the drive.
(See "Torque Settings" on page 180.)

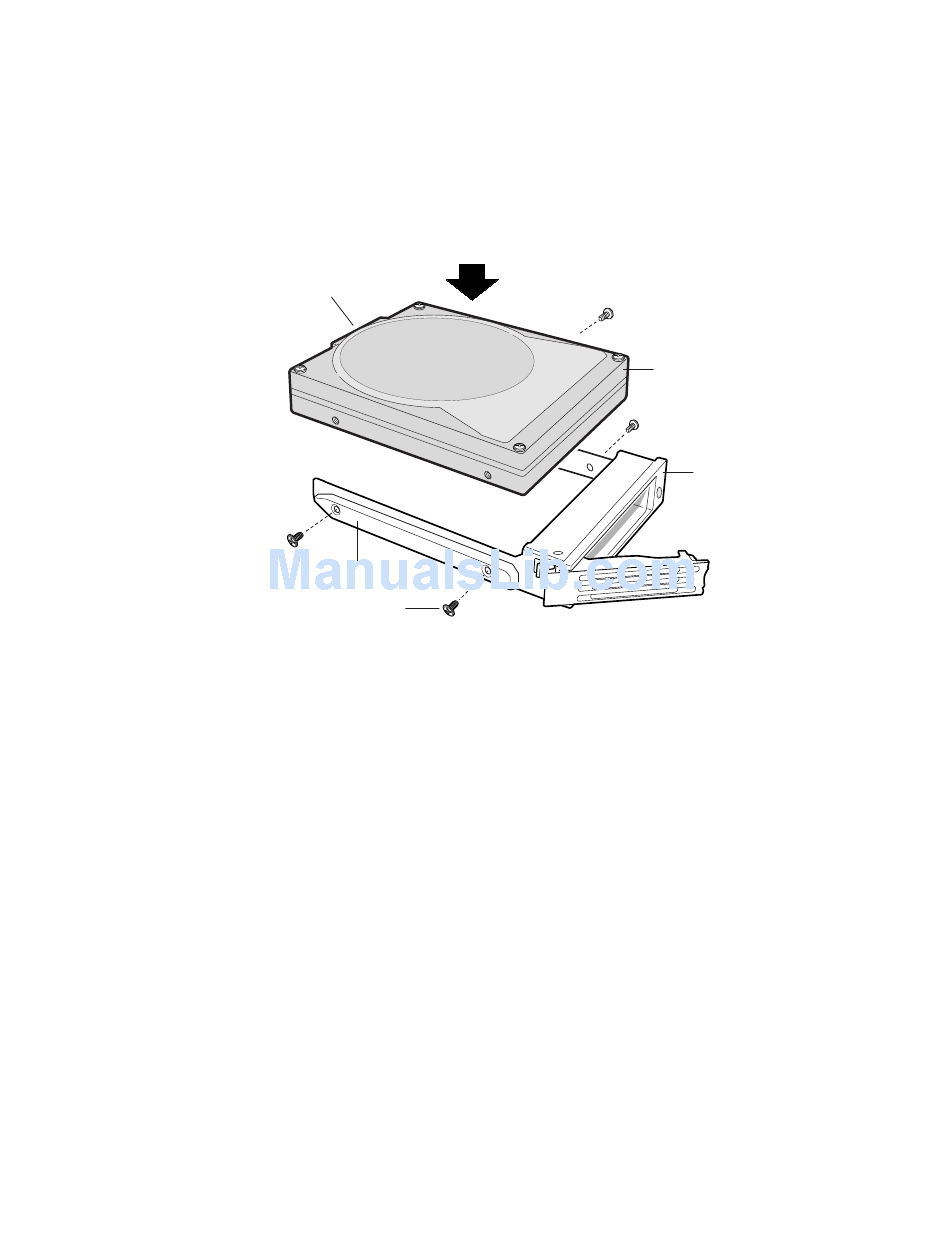

Figure 108. Attaching the Hard Disk Drive to the Carrier
11. Replace the drive in the peripheral drive bay by sliding the drive carrier all the way into the
drive bay with the retention lever in the fully open position.
12. Push the retention lever closed to secure the drive carrier in the bay.
13. Reinstall a carrier with an air baffle in any open bays not occupied by hard drives.
Intel® SR870BN4 Server System Product Guide
E
C
D
A
B
OM11684
233
