4. When the server has been successfully rebooted to the service partition software, the supported
service partition utilities are displayed, as shown below. Click on System Maintenance
Utility to launch the SMU application. ISM passes connection information to the SMU so
the SMU can communicate with the target server. Up to this point, all errors are handled by the
ISM software, not the SMU.
The remote SMU application attempts to establish a socket connection to the server and uses the
Service Partition Utilities services to execute the server-side SMU core components. If a
connection is established, the application sends information to the SMU core components to request
a session. If the connection fails, a dialog box is displayed to indicate an error condition. In the
event of an error, the user can attempt to restart the SMU from the ISM console.
After the session with the SMU core components is established, a version check is made to
determine if the remote SMU application is able to communicate with the SMU core components
on the server. If the versions do not match, an error message is displayed, the SMU application is
closed, and control is returned to the Service Partition Utilities application.
Intel® SR870BN4 Server System Product Guide

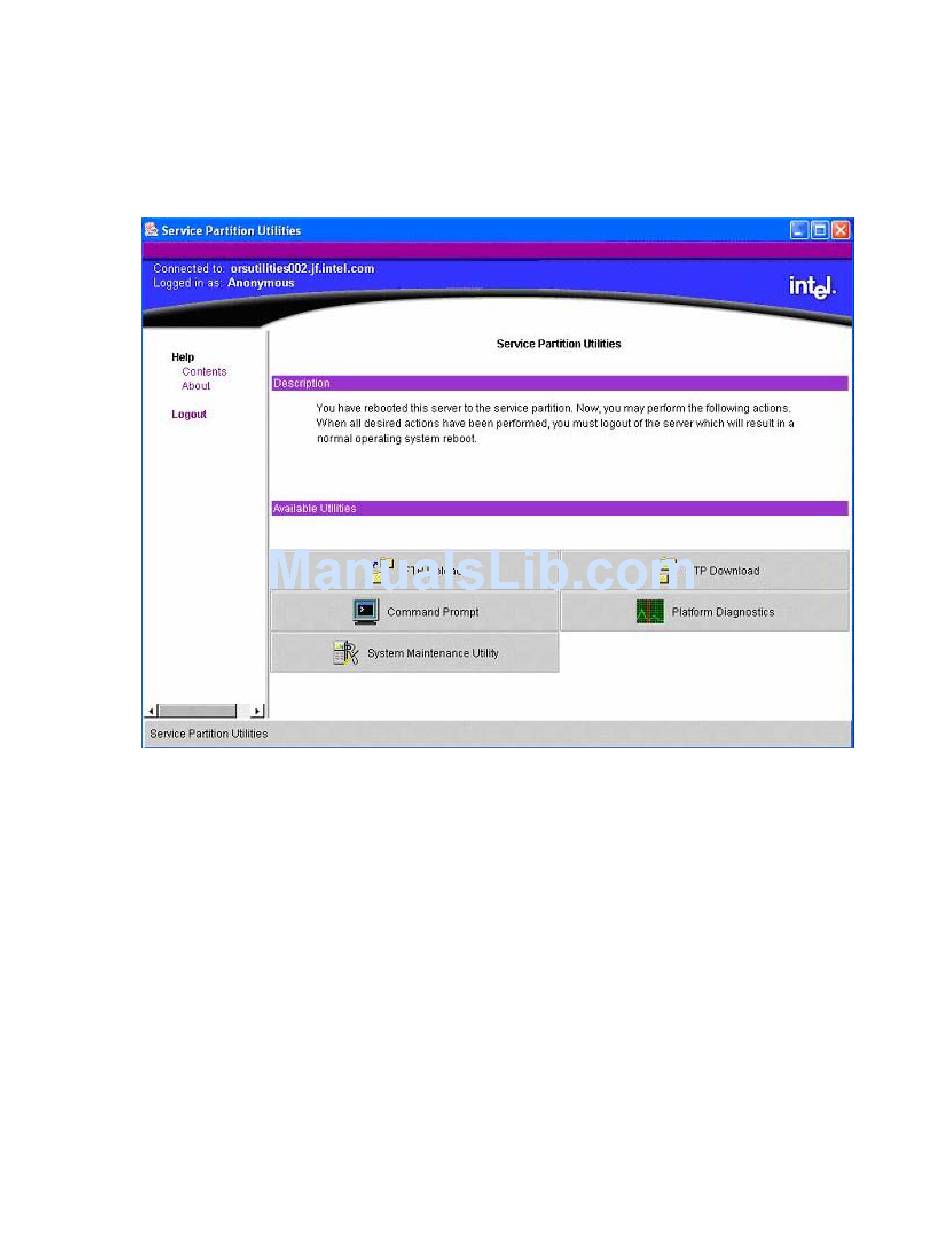

Figure 23. Service Partition Utilities
