8. When the drive carrier is fully assembled, slide it rearward into the peripheral bay such that the
blue tab aligns with the corresponding notch in the peripheral bay.
9. Verify that the sheet metal feature next to the blue latch engages the peripheral bay completely.
10. Install the peripheral bay in the chassis.

Removing the LS-240 Filler Panel from the Peripheral Bay

To remove the LS-240 filler panel:
1. Observe the safety and ESD precautions described in "Warnings and Cautions" on page 179.
2. Power down the system by pressing and holding the power button on the front panel for several
seconds. Unplug both AC power cords to remove standby power from the server.
3. Remove the LS-240 Filler Panel from the chassis by gently grasping edges of filler panel bezel
and pulling LS-240 Filler Panel from slot.

Installing the LS-240 Filler Panel in the Peripheral Bay

To install the LS-240 filler panel:
1. Observe the safety and ESD precautions described in "Warnings and Cautions" on page 179.
2. Power down the system by pressing and holding the power button on the front panel for several
seconds. Unplug both AC power cords to remove standby power from the server.
3. Install the LS-240 Filler Panel into the chassis by gently pressing top and bottom of filler panel
sheet metal together and inserting filler panel, sheet metal first, into the LS-240 empty slot.

Removing the DVD/CD-ROM Drive from the Peripheral Bay

The DVD/CD-ROM floppy disk drive is housed in a drive carrier assembly. The drive is accessible
when the carrier is removed from the peripheral bay. To remove the DVD/CD-ROM drive:
1. Observe the safety and ESD precautions described in "Warnings and Cautions" on page 179.
2. Power down the system by pressing and holding the power button on the front panel for several
seconds. Unplug both AC power cords to remove standby power from the server.
3. Remove the peripheral bay from the chassis.
4. Turn the peripheral bay over to access the underside as shown in Figure 114.
5. Press down on the blue retaining lever and push the DVD/CD-ROM drive carrier toward the
front of the peripheral bay (A in Figure 114).
238

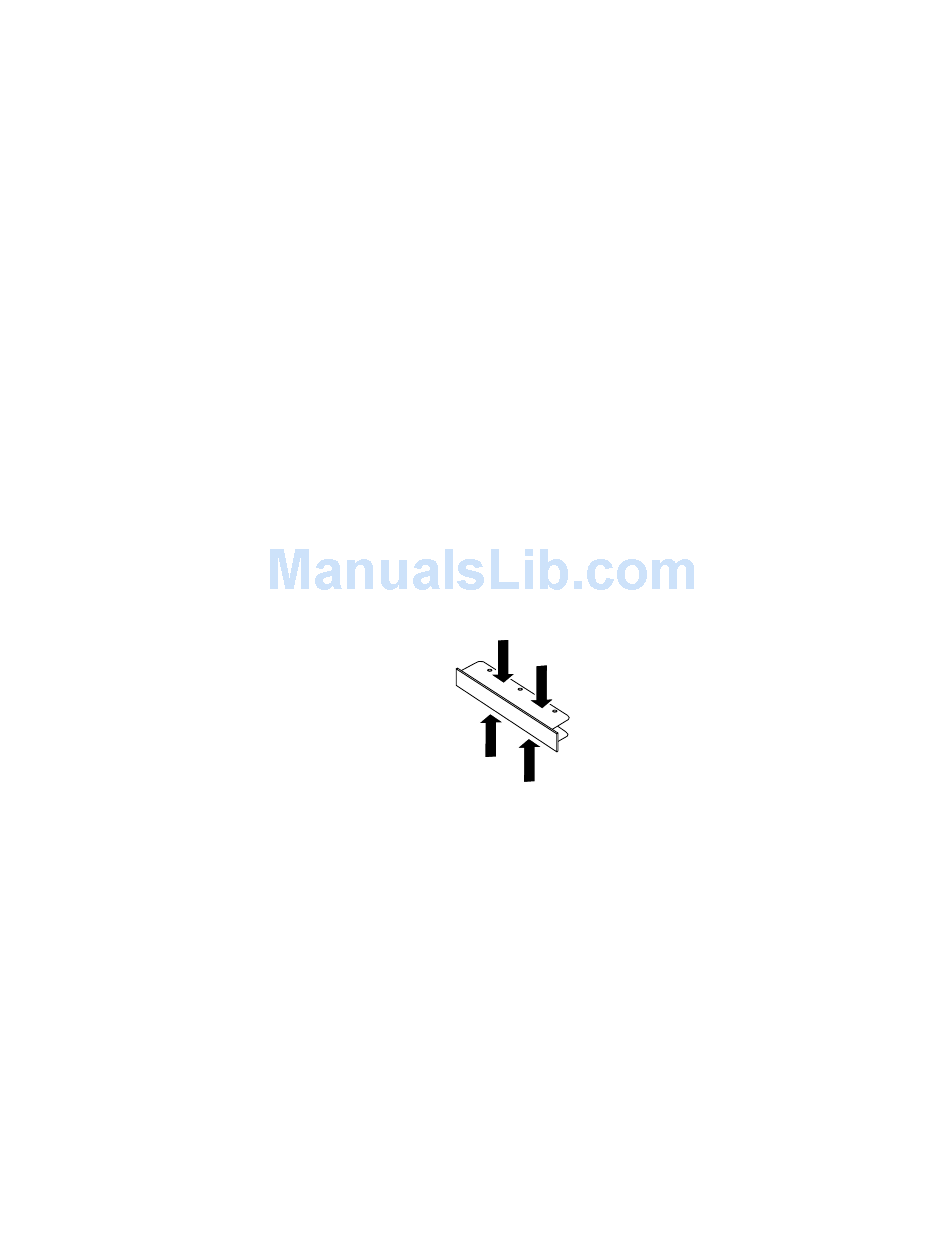

Figure 113. Installing the LS-240 Filler Panel
Intel® SR870BN4 Server System Product Guide
TP00254
