Factory Settings

C 4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
When Reset to Factory is selected from the UTILITY System menu, this
instrument's parameters are reset to the values they had when leaving the factory.
Table C-2 lists these factory settings.

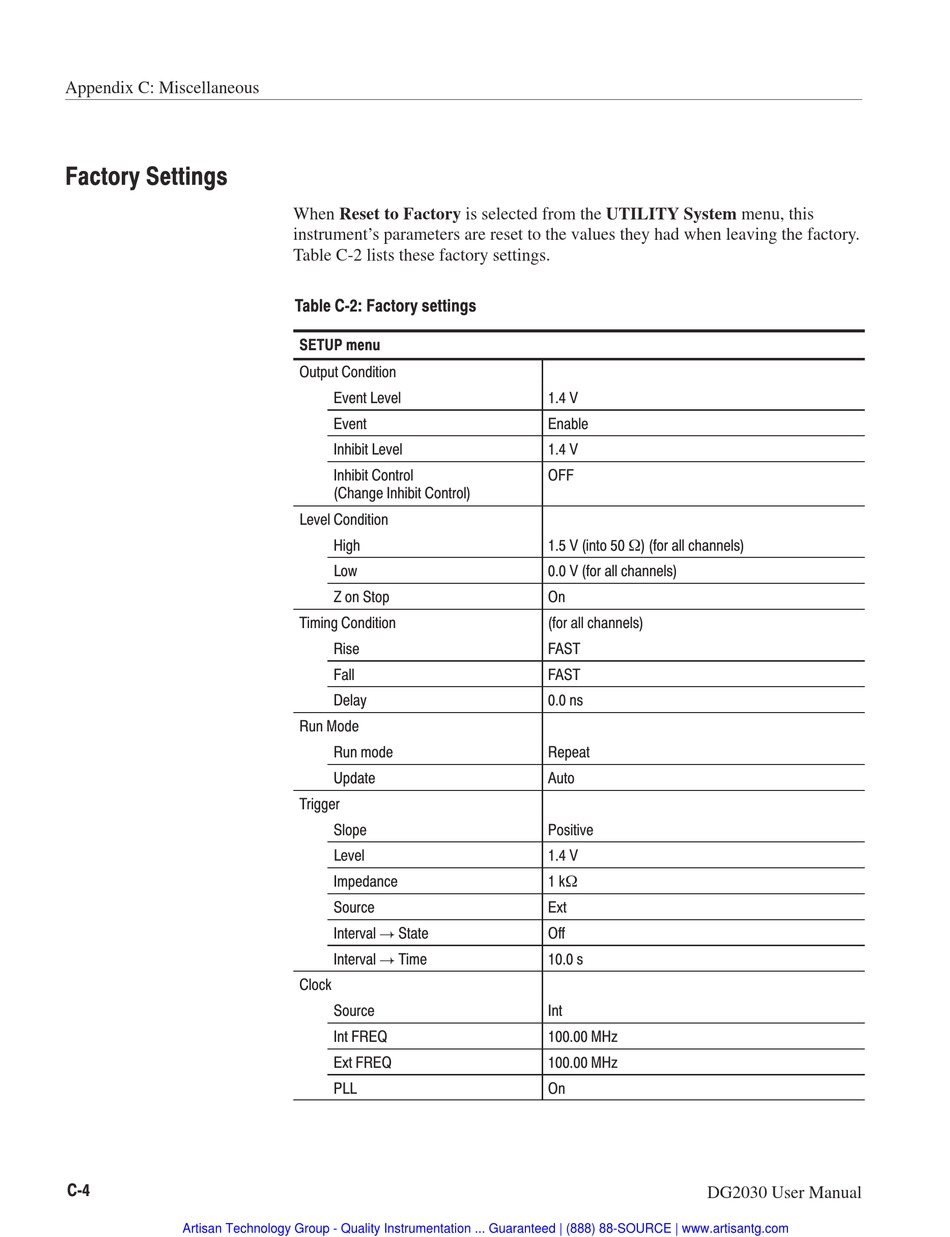

Table C 2: Factory settings
SETUP menu
Output Condition
Event Level
Event
Inhibit Level
Inhibit Control
(Change Inhibit Control)
Level Condition
High
Low
Z on Stop
Timing Condition
Rise
Fall
Delay
Run Mode
Run mode
Update
Trigger
Slope
Level
Impedance
Source
Interval ! State
Interval ! Time
Clock
Source
Int FREQ
Ext FREQ
PLL
1.4 V
Enable
1.4 V
OFF
1.5 V (into 50 W) (for all channels)
0.0 V (for all channels)
On
(for all channels)
FAST
FAST
0.0 ns
Repeat
Auto
Positive
1.4 V
1 kW
Ext
Off
10.0 s
Int
100.00 MHz
100.00 MHz
On
DG2030 User Manual
