Edit Menu
3 44
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Popup Menu.

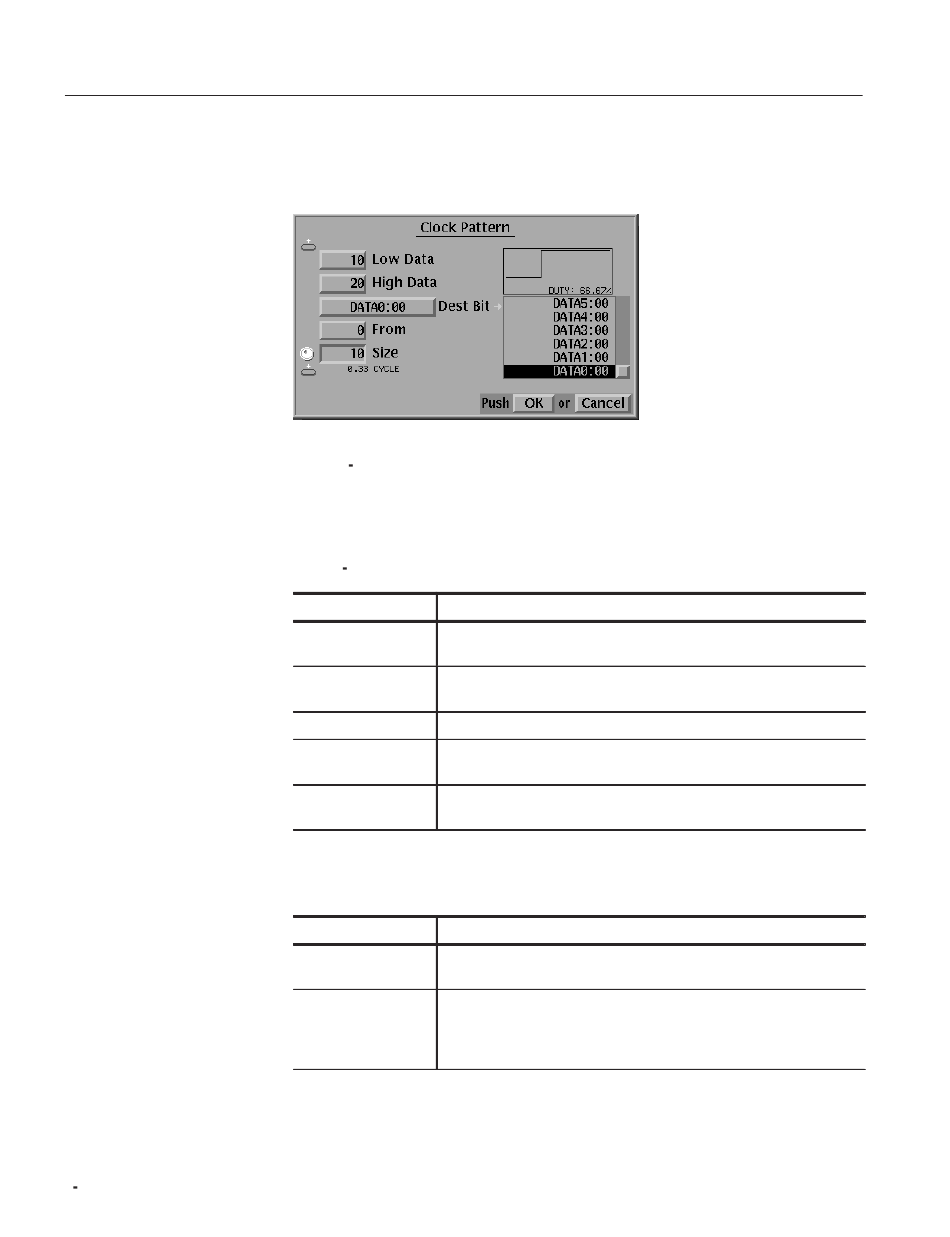

Figure 3 38: Clock Pattern popup menu
Table 3-10 describes the parameter items.
Table 3 10: Parameter Items
Parameter item Function
Low Data The length (number of points) of the data 0 part of the clock pulse. The
maximum is 100 points.
High Data The length (number of points) of the data 1 part of the clock pulse. The
maximum is 100 points.
Dest Bit The bit in which to write the pattern.
From When Entered was selected in the Region side menu item, specifies
the first point in the bit from which the pattern is written.
Size When Entered was selected as the Region side menu item, specifies
the length (number of points) of the clock pattern.
Side Menu
Menu item Function
Start Determines the state at pulse start. When Low is selected, the value
will be 0. When High is selected, the value will be 1.
Region The values All and Entered can be set. When All is selected, all of the
Dest Bit memory is filled with the pattern. When Entered is selected,
the pattern is written to the area specified by the From and Size
parameters.
DG2030 User Manual
