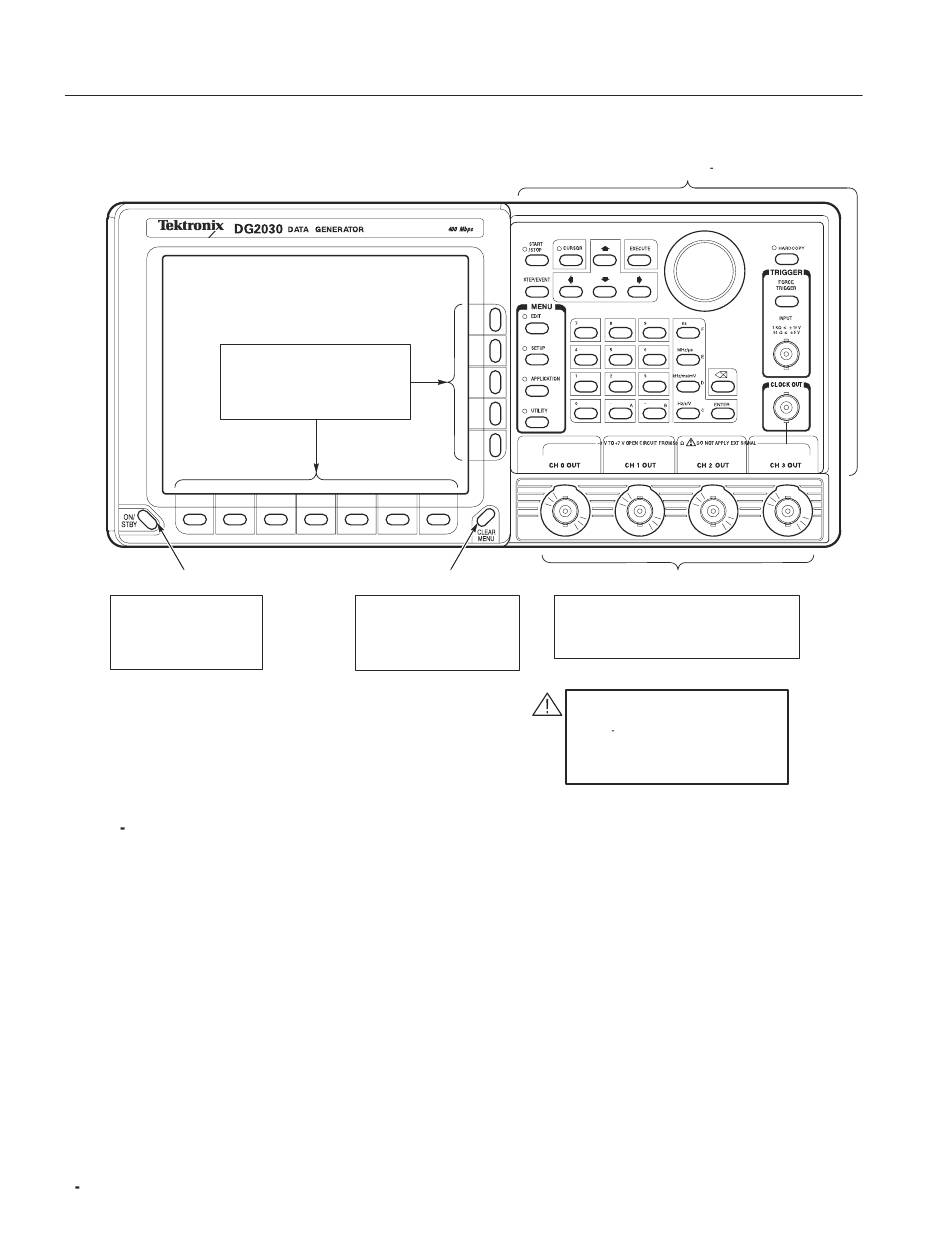

Figure 2-1: Front Panel Overview - Tektronix DG2030 User Manual

Operating Basics
The main use of the bottom buttons is
to call up sub menus, and the side
buttons are used to execute more
detailed operations within the sub
menus.
ON/STBY Button
This button is used as the
power switch in normal
operation. The PRINCIPAL
POWER SWITCH on the rear
panel must be on.
Figure 2 1: Front panel overview
2 2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Bottom and side
bezel buttons
CLEAR MENU Button
Cancels the current operation
and closes side and sub menus.
The display can be returned to
the top level by repeated
pressing.
See Figure 2 2.
Output Connectors
The CH 0 to CH 3 BNC connectors output pattern
data with variable output lebel in the range -1.50
V to +3.50 V. The delay times for each channel
can be varied from -5 ns to +18 ns.
CAUTION: If external voltages are applied
to the data output connectors, be sure to set
the high impedance control correctly so that
signal collisions do not result in output
currents or voltages in excess of the rated
values.
DG2030 User Manual
