Edit Menu

Select Memory Size

3 20
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Reference Mark

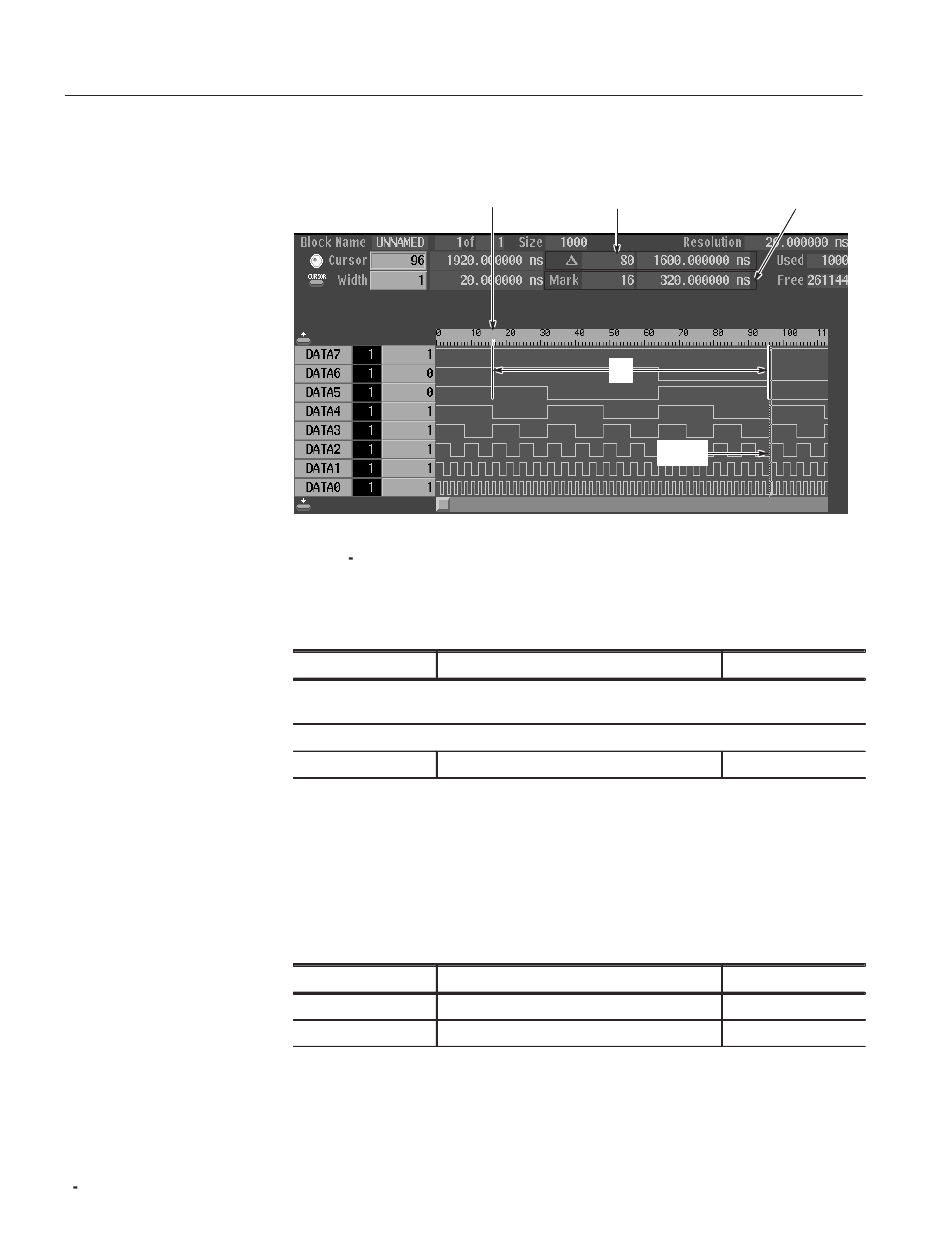

Figure 3 9: Reference mark M" display
Operation. Set the reference mark
Bottom button Popup menu
Move the knob icon to the Cursor window in the upper left of the screen using the up and down
arrow buttons.
Set the cursor to the reference point using the general purpose knob or the numeric keys.
Settings Place mark here
Sets the pattern data memory size. The size can be set to a value in the range
from 90 words to 262144 words. In some cases the memory size setting is
changed by operations that change the block length. Items that exceed the
memory size due to editing operations are either ignored or discarded.
Operation. Set the memory size
Bottom button Popup menu
Settings Set memory size
Set the number of points.
Number of points and time
between the reference
mark and the cursor
D
Cursor
Side button
OK
Side button
OK
OK
DG2030 User Manual
Reference Mark
Point Value and Time
