You enter numeric values by using the front-panel keypad or the general purpose
knob. This section describes these numeric input methods.

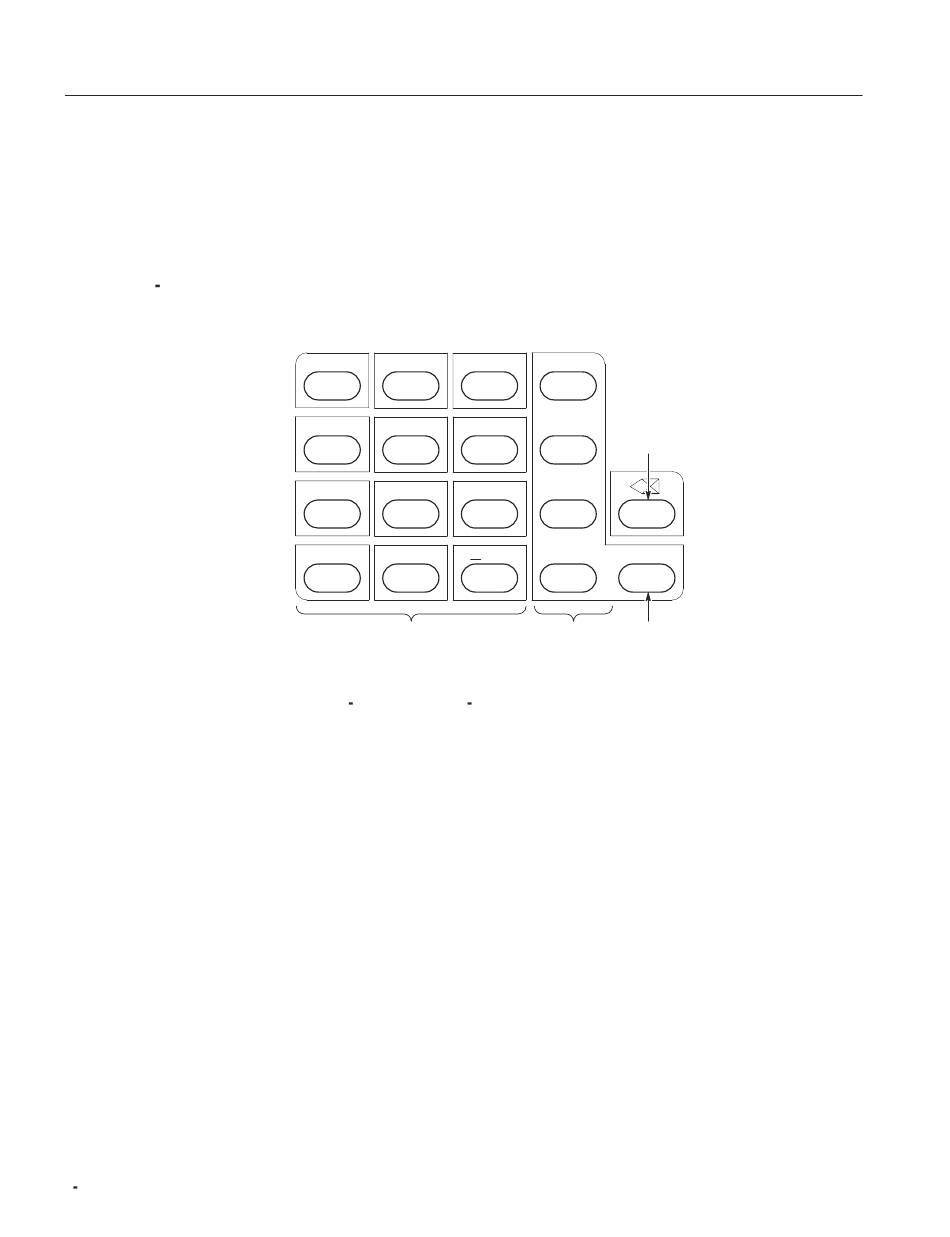

The numeric keys, the units buttons, the delete key and the ENTER key are used
for entering numeric values. See Figure 2-10.
7 8 9
4 5 6
1 2 3
0 . A
Numeric
Keys
Figure 2 10: DG2030 front panel keypad
Use the following procedure to input numeric values with the numeric keys,
ENTER key, and units buttons on the front panel.
1. Press the button for the menu item to be changed.
2. Input the value using the numeric keys.
3. Press a units button or the ENTER key.
Figure 2-11 shows a menu display during numeric input. The asterisk to the left
of the menu items indicates that you are entering a value in that field. Pressing
the front panel ENTER key confirms an entered value and removes the asterisk
from the menu item field.
ns
F
Delete
MHz/ms
E
Key
kHz/ms/mV
D
B Hz/s/V ENTER
C
Units ENTER
Buttons Key
