Text input is required to enter the names for data groups, data blocks, floppy disk
files, and other items. When such input is required, the instrument brings up the
dialog box shown in Figure 2-19.

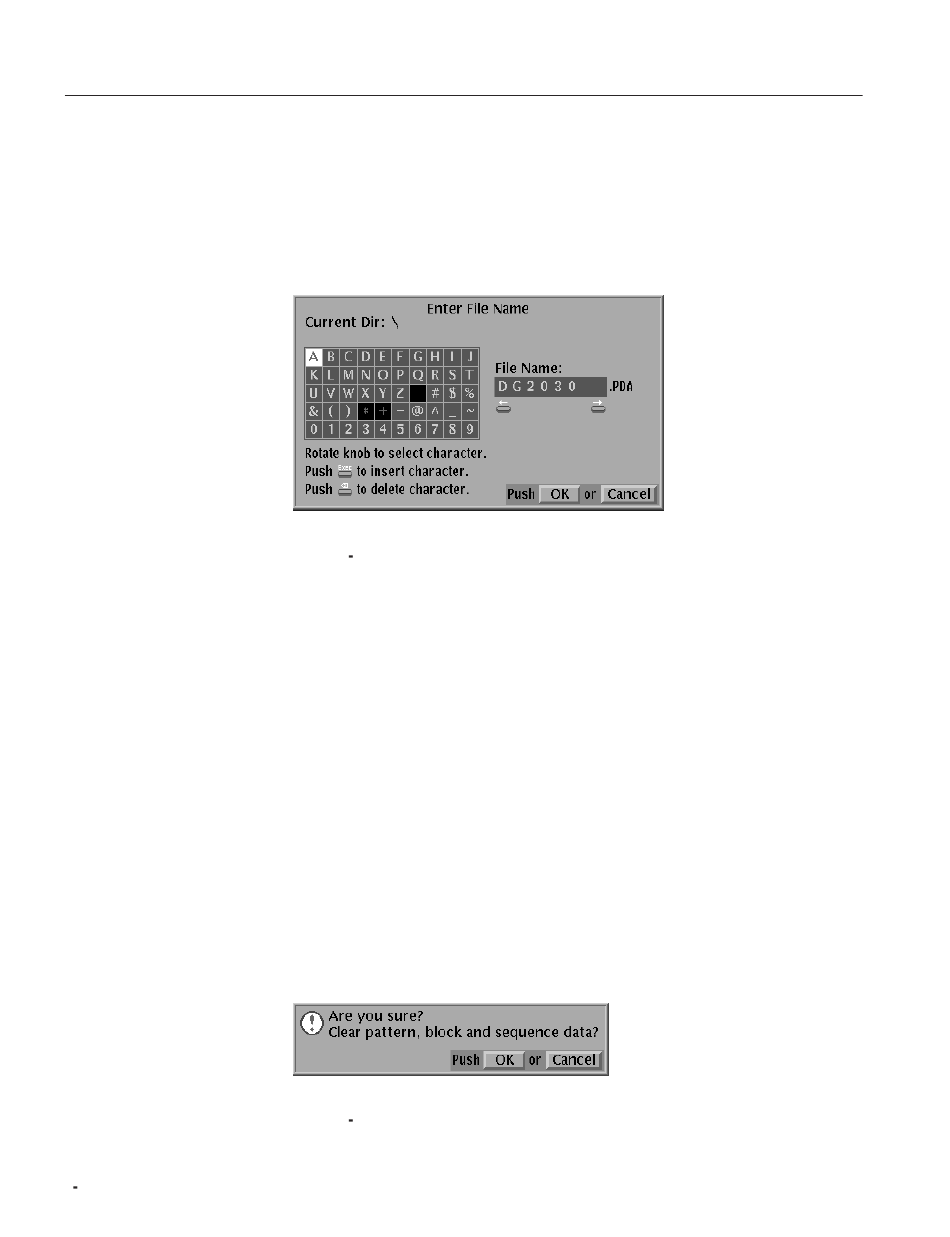

Figure 2 19: Text input menu
The text input menu displays a default string for the item. Use the side menu
Clear String button to erase this default string. Use the arrow buttons or the
general purpose knob to move the reverse-video cursor to the desired character in
the letter/digit matrix, and pressing the EXECUTE button. Incorrect input can
be erased with the delete key. The position where the character is inserted is
indicated with an underscore. Use the left and right arrow buttons to change the
position of the underscore. When all required characters have all been selected,
press the OK button on the side menu to complete the operation. To cancel text
input and return to the previous menu, press Cancel on the side menu.
The instrument displays a message box that prompts you to confirm operations
that would be difficult to recover. Figure 2-20 shows the file deletion confirma-
tion message box. Press the side menu OK button to execute the operation
displayed in the box. Press Cancel to cancel the operation and return to the state
prior to selecting the current menu.
Figure 2 20: Popup message box
