Rise; Fall - Tektronix DG2030 User Manual

Setup Menu

Rise

Fall

3 74
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The rise time can be adjusted within this
range or set to FAST.
Delay: 10.00 ns
Rise: 4.2 ns

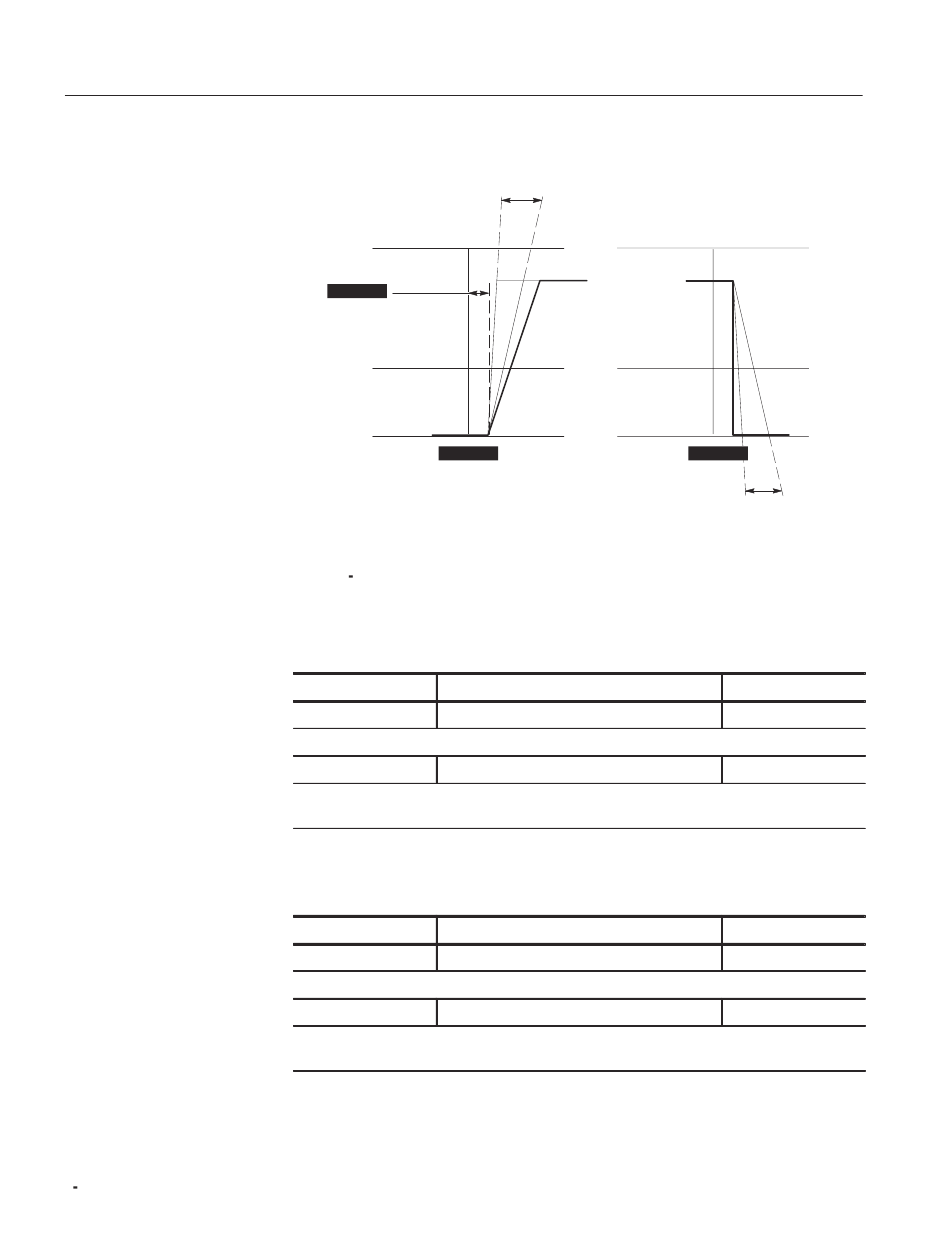

Figure 3 55: Example rise, fall, and delay parameters
Operation. Set the rise time
Bottom button Popup menu
Timing Condition
Select the channel for which the rise time is to be set using the knob.
Turn the knob to set a rise time. When you want to set the rise time to FAST enter 0 from the
front panel keyboard.
Operation. Set the fall time
Bottom button Popup menu
Timing Condition
Select the channel for which the rise time is to be set using the knob.
Turn the knob to set a rise time. When you want to set the rise time to FAST enter 0 from the
front panel keyboard.
Fall: FAST
The fall time can be adjusted within this
range or set to FAST.
Side button
Rise
Side button
Fall
DG2030 User Manual
