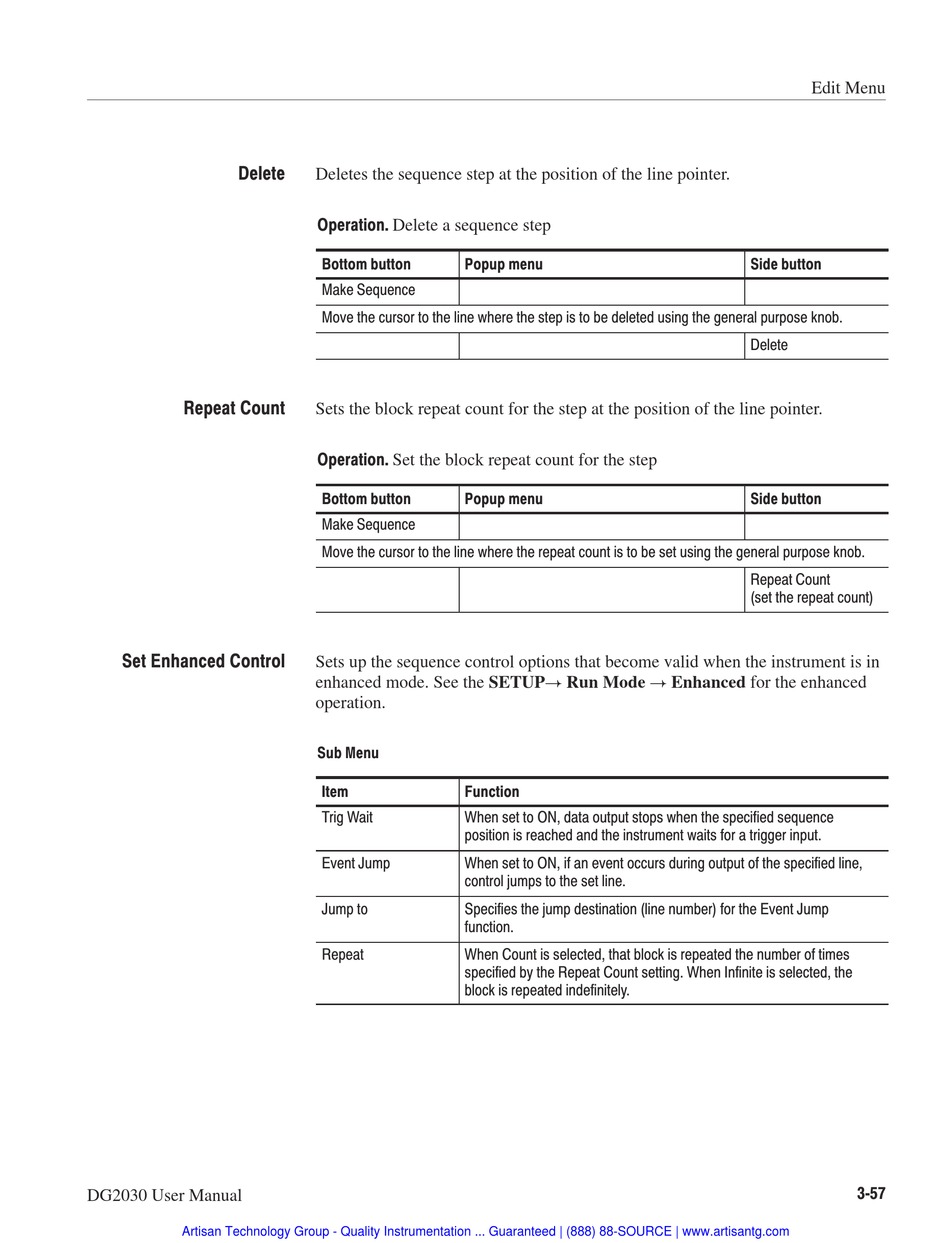

Delete; Repeat Count; Set Enhanced Control - Tektronix DG2030 User Manual

Delete

Repeat Count

Set Enhanced Control

DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Deletes the sequence step at the position of the line pointer.
Operation. Delete a sequence step
Bottom button Popup menu
Make Sequence
Move the cursor to the line where the step is to be deleted using the general purpose knob.
Sets the block repeat count for the step at the position of the line pointer.
Operation. Set the block repeat count for the step
Bottom button Popup menu
Make Sequence
Move the cursor to the line where the repeat count is to be set using the general purpose knob.
Sets up the sequence control options that become valid when the instrument is in
enhanced mode. See the SETUP! Run Mode ! Enhanced for the enhanced
operation.
Sub Menu
Item Function
Trig Wait When set to ON, data output stops when the specified sequence
position is reached and the instrument waits for a trigger input.
Event Jump When set to ON, if an event occurs during output of the specified line,
control jumps to the set line.
Jump to Specifies the jump destination (line number) for the Event Jump
function.
Repeat When Count is selected, that block is repeated the number of times
specified by the Repeat Count setting. When Infinite is selected, the
block is repeated indefinitely.
Edit Menu
Side button
Delete
Side button
Repeat Count
(set the repeat count)
3 57
