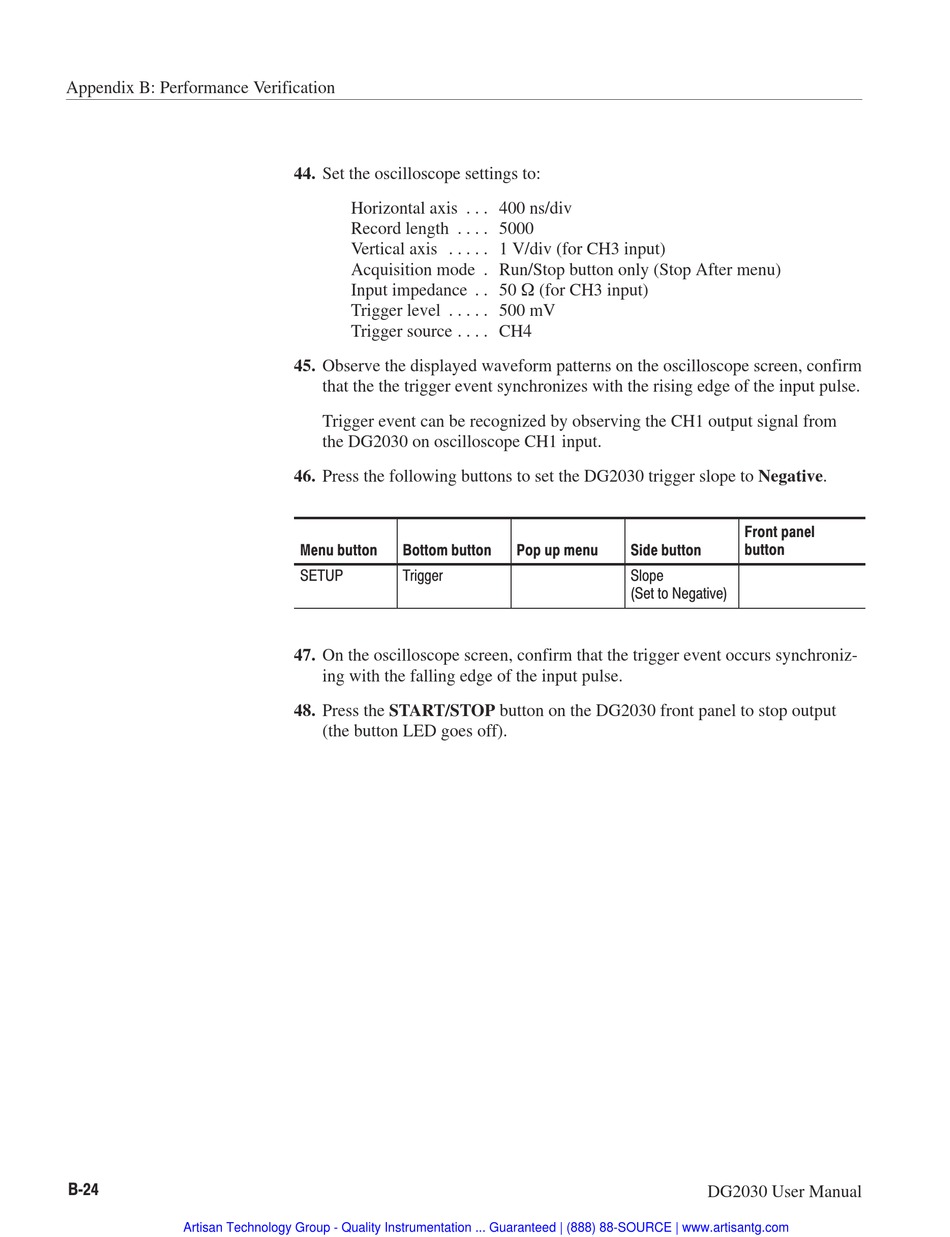

Appendix B: Performance Verification
B 24
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
44. Set the oscilloscope settings to:
Horizontal axis . . .
Record length . . . .
Vertical axis . . . . .
Acquisition mode
Input impedance
Trigger level . . . . .
Trigger source . . . .
45. Observe the displayed waveform patterns on the oscilloscope screen, confirm
that the the trigger event synchronizes with the rising edge of the input pulse.
Trigger event can be recognized by observing the CH1 output signal from
the DG2030 on oscilloscope CH1 input.
46. Press the following buttons to set the DG2030 trigger slope to Negative.
Menu button Bottom button
SETUP Trigger
47. On the oscilloscope screen, confirm that the trigger event occurs synchroniz-
ing with the falling edge of the input pulse.
48. Press the START/STOP button on the DG2030 front panel to stop output
(the button LED goes off).
400 ns/div
5000
1 V/div (for CH3 input)
. Run/Stop button only (Stop After menu)
50 W (for CH3 input)
. .
500 mV
CH4
Pop up menu Side button
Slope
(Set to Negative)
Front panel
button
