Edit Menu
Mirror Horizontal

Magnify

Execution
Execution
Numeric Input
3 36
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
This function is for timing display format. The cursor becomes the area cursor.
The area specified as the editing area is reordered in the point direction in a
mirror-image manner. In display formats other than timing display (i.e., table and
binary), the reordering is performed in the group/bit direction.
Before
Execution
After
Execution

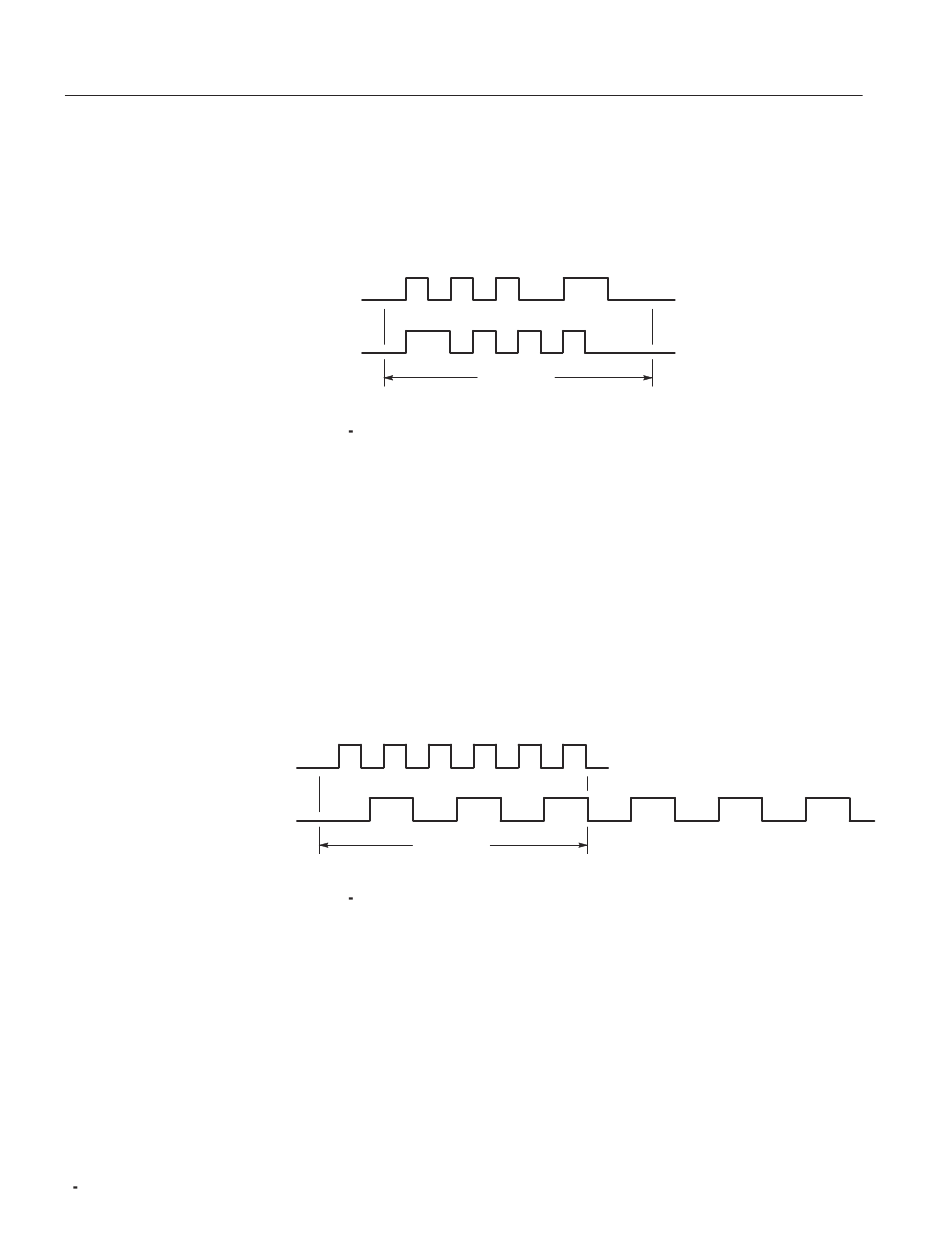

Figure 3 28: Mirror horizontal
