Appendix A: Specifications

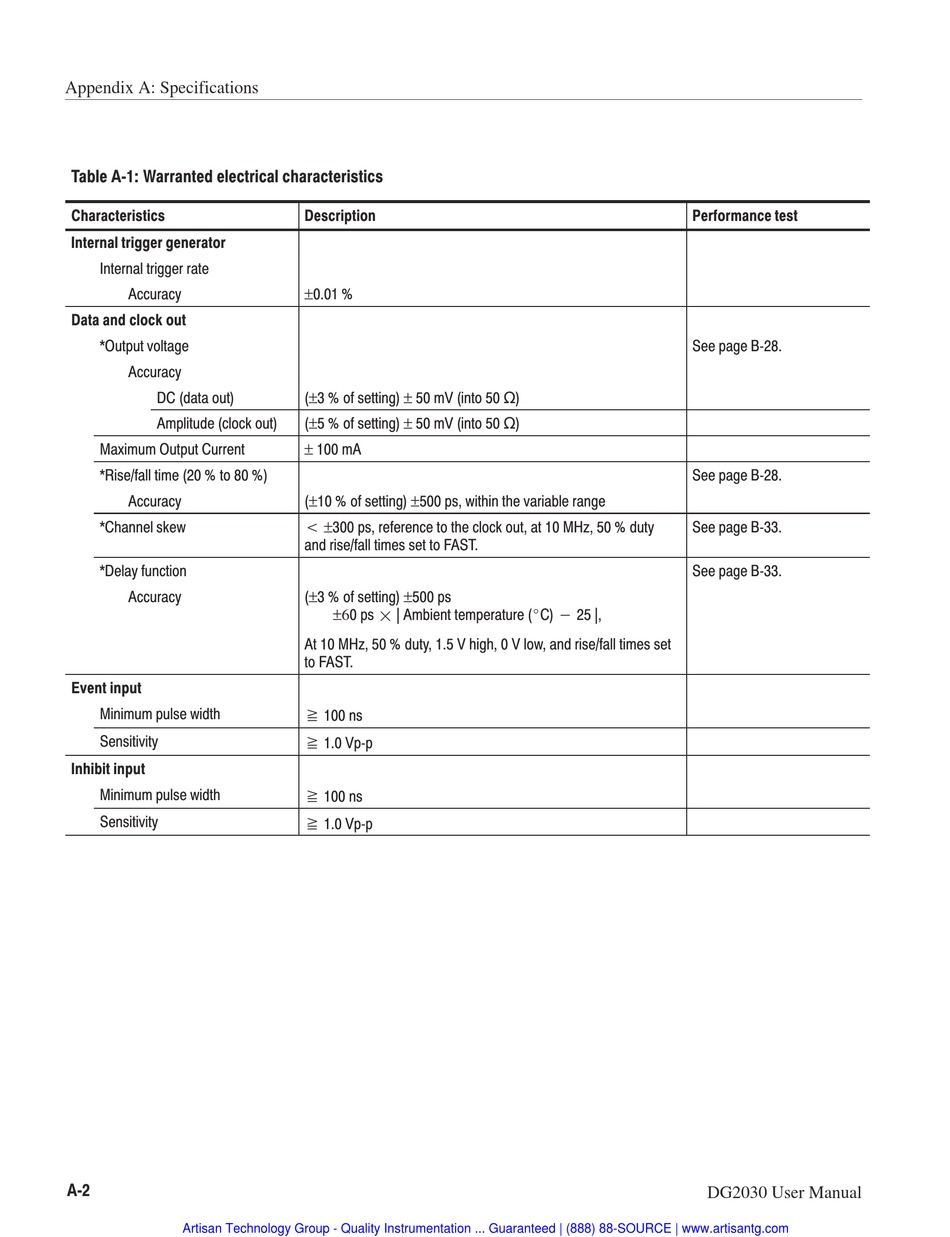

Table A 1: Warranted electrical characteristics
Characteristics
Internal trigger generator
Internal trigger rate
Accuracy
Data and clock out
*Output voltage
Accuracy
DC (data out)
Amplitude (clock out)
Maximum Output Current
*Rise/fall time (20 % to 80 %)
Accuracy
*Channel skew
*Delay function
Accuracy
Event input
Minimum pulse width
Sensitivity
Inhibit input
Minimum pulse width
Sensitivity
A 2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Description
±0.01 %
(±3 % of setting) ± 50 mV (into 50 W)
(±5 % of setting) ± 50 mV (into 50 W)
± 100 mA
(±10 % of setting) ±500 ps, within the variable range
t ±300 ps, reference to the clock out, at 10 MHz, 50 % duty
and rise/fall times set to FAST.
(±3 % of setting) ±500 ps
±60 ps  | Ambient temperature (_C) * 25 |,
At 10 MHz, 50 % duty, 1.5 V high, 0 V low, and rise/fall times set
to FAST.
y 100 ns
y 1.0 Vp p
y 100 ns
y 1.0 Vp p
Performance test
See page B 28.
See page B 28.
See page B 33.
See page B 33.
