Serial Code Converter

DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Operation. Move or copy pattern data
Bottom button Popup menu
Enhanced Action Bit Operation
Set the parameters in the popup menu.
(Src Bit, Operation, Dest Bit, From, Size)
Converts data in the source by writing specified output data to the destination as
one of a set patterns is found in the source data.
Refer to Conversion Table Examples on page C-6 for examples of how to
convert pattern data to different format.
Popup Menu. The menu for setting the bit and area that will be the code
conversion source data, and the bit and area where the result of the code
conversion will be written is displayed using the following operation. (See
Figure 3-44.) Select the item with the up and down arrow buttons, and use the
general purpose knob and the numeric keys to set the parameter value.
Bottom button Popup menu
Enhanced Action Serial Code Converter

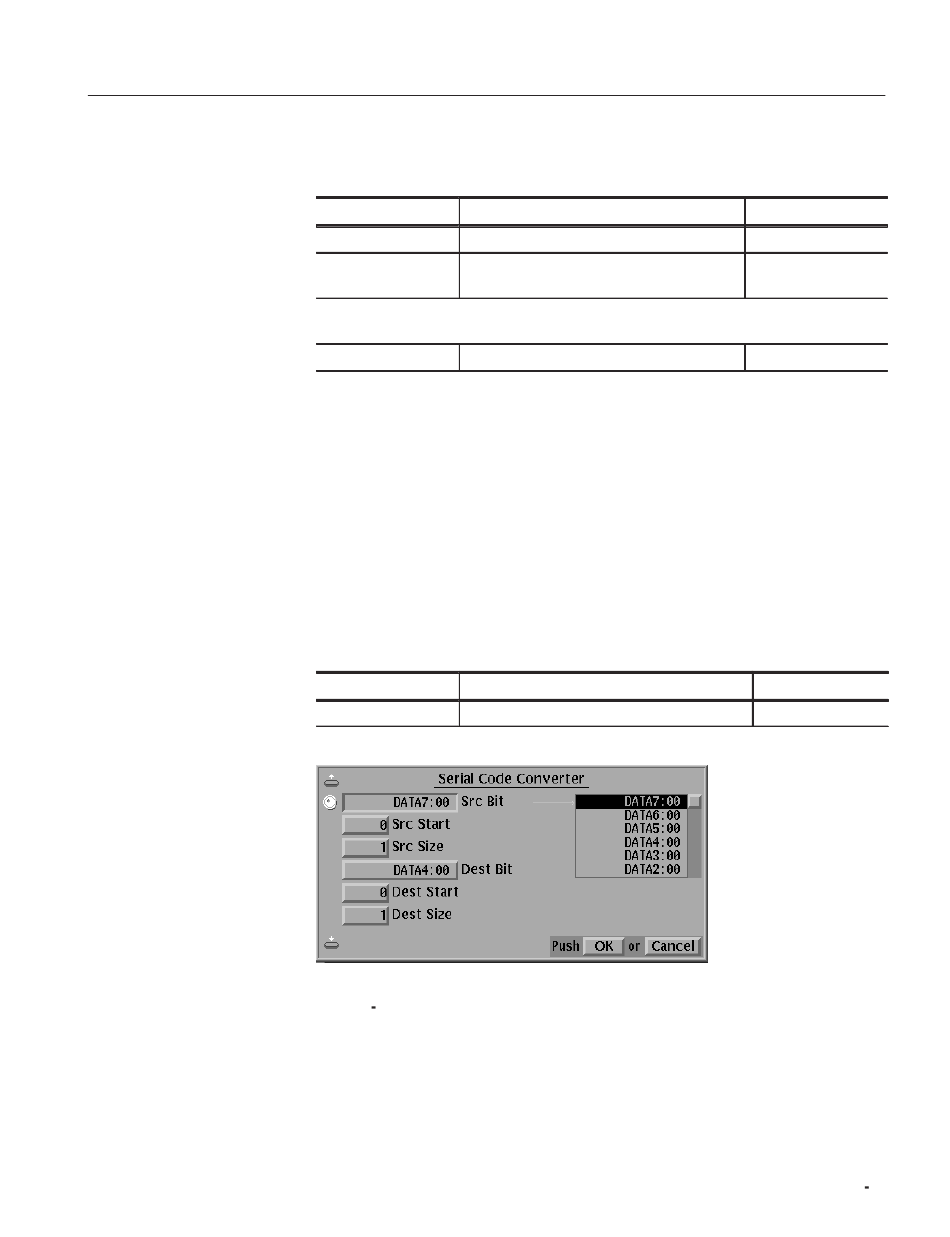

Figure 3 44: Serial Code Converter menu
Table 3-14 describes the parameter items.
Edit Menu
Side button
OK
Region (Select All or
Entered)
OK
Side button
OK
3 51
