Setup Menu
Level Condition Menu
High
Low
3 72
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
CH 0
External Inhibit Input

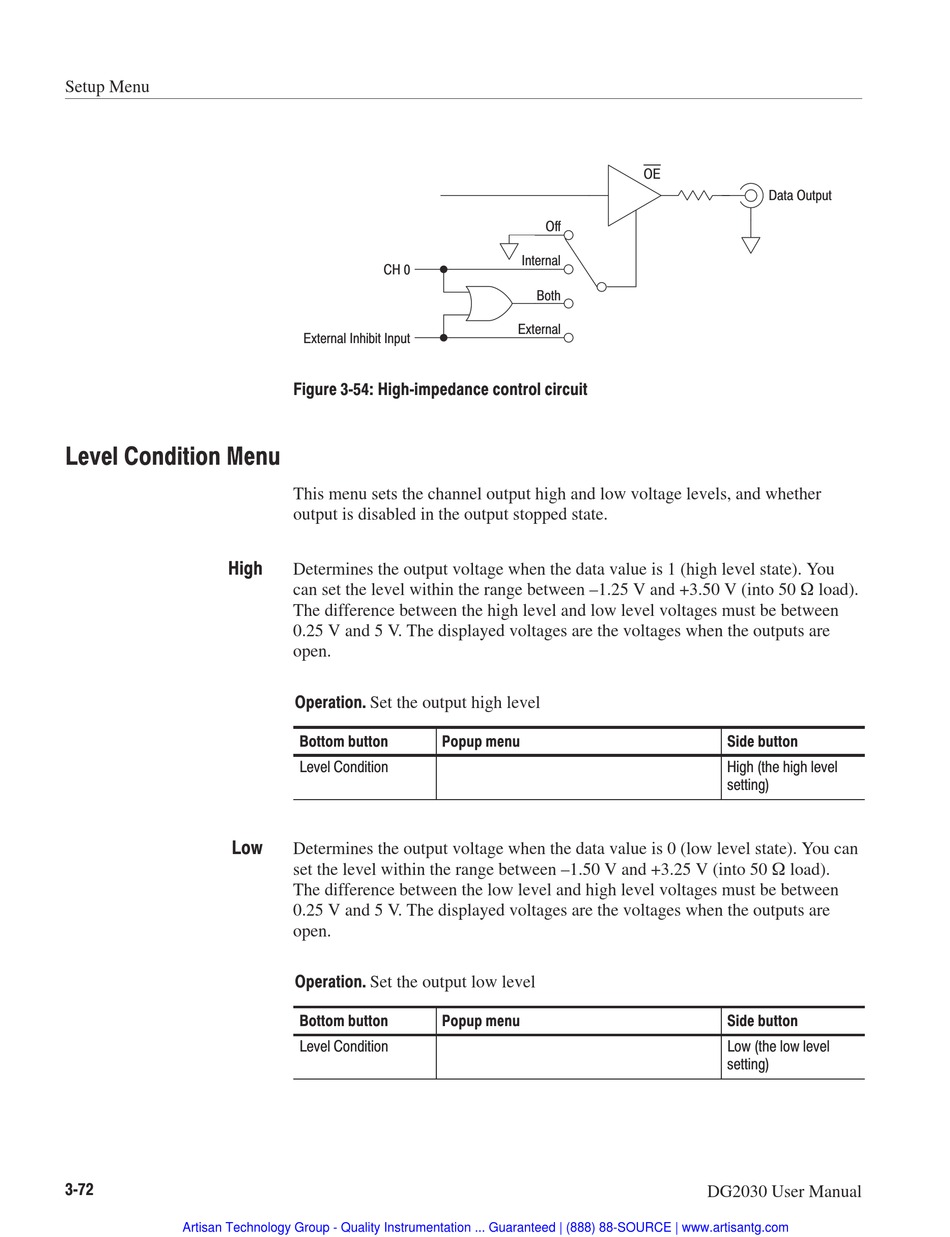

Figure 3 54: High impedance control circuit
This menu sets the channel output high and low voltage levels, and whether
output is disabled in the output stopped state.
Determines the output voltage when the data value is 1 (high level state). You
can set the level within the range between –1.25 V and +3.50 V (into 50 W load).
The difference between the high level and low level voltages must be between
0.25 V and 5 V. The displayed voltages are the voltages when the outputs are
open.
Operation. Set the output high level
Bottom button
Popup menu
Level Condition
Determines the output voltage when the data value is 0 (low level state). You can
set the level within the range between –1.50 V and +3.25 V (into 50 W load).
The difference between the low level and high level voltages must be between
0.25 V and 5 V. The displayed voltages are the voltages when the outputs are
open.
Operation. Set the output low level
Bottom button
Popup menu
Level Condition
OE
Off
Internal
Both
External
Data Output
Side button
High (the high level
setting)
Side button
Low (the low level
setting)
DG2030 User Manual
