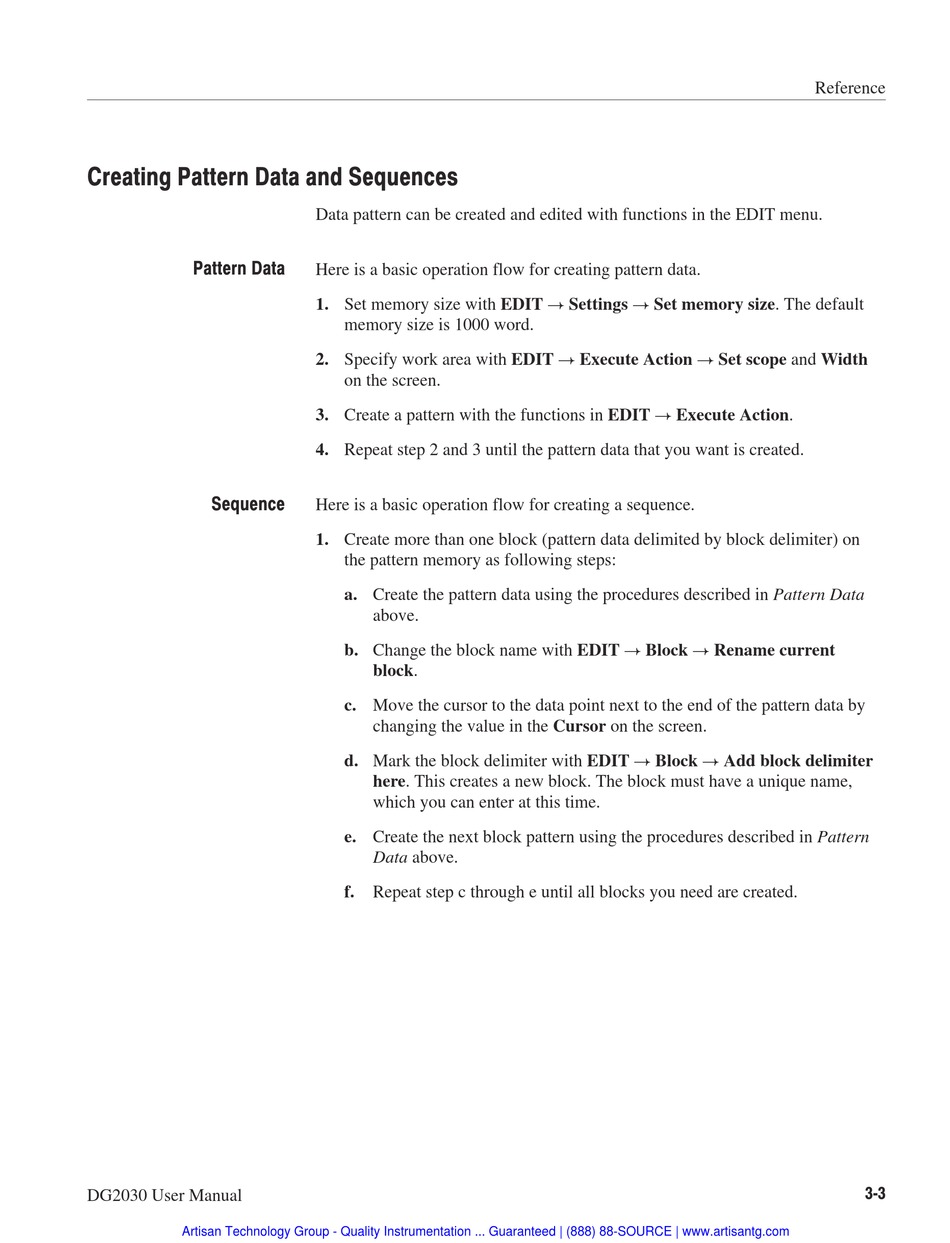

Creating Pattern Data and Sequences

Pattern Data
Sequence
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Data pattern can be created and edited with functions in the EDIT menu.
Here is a basic operation flow for creating pattern data.
1. Set memory size with EDIT ! Settings ! Set memory size. The default
memory size is 1000 word.
2. Specify work area with EDIT ! Execute Action ! Set scope and Width
on the screen.
3. Create a pattern with the functions in EDIT ! Execute Action.
4. Repeat step 2 and 3 until the pattern data that you want is created.
Here is a basic operation flow for creating a sequence.
1. Create more than one block (pattern data delimited by block delimiter) on
the pattern memory as following steps:
a. Create the pattern data using the procedures described in Pattern Data
above.
b. Change the block name with EDIT ! Block ! Rename current
block.
c. Move the cursor to the data point next to the end of the pattern data by
changing the value in the Cursor on the screen.
d. Mark the block delimiter with EDIT ! Block ! Add block delimiter
here. This creates a new block. The block must have a unique name,
which you can enter at this time.
e. Create the next block pattern using the procedures described in Pattern
Data above.
f. Repeat step c through e until all blocks you need are created.
