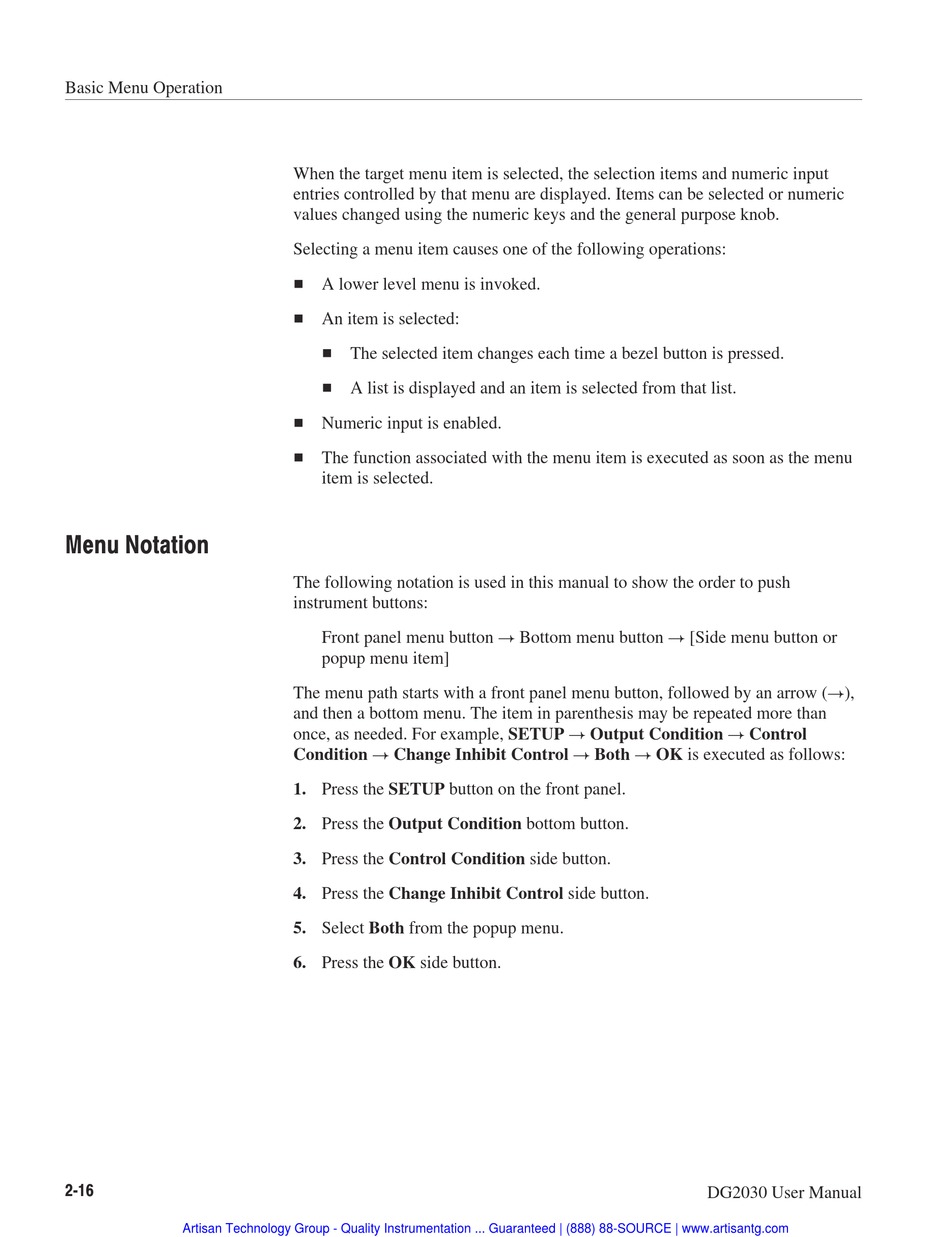

Basic Menu Operation

Menu Notation

2 16
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
When the target menu item is selected, the selection items and numeric input
entries controlled by that menu are displayed. Items can be selected or numeric
values changed using the numeric keys and the general purpose knob.
Selecting a menu item causes one of the following operations:
H A lower level menu is invoked.
H An item is selected:
H The selected item changes each time a bezel button is pressed.
H A list is displayed and an item is selected from that list.
H Numeric input is enabled.
H The function associated with the menu item is executed as soon as the menu
item is selected.
The following notation is used in this manual to show the order to push
instrument buttons:
Front panel menu button ! Bottom menu button ! [Side menu button or
popup menu item]
The menu path starts with a front panel menu button, followed by an arrow (!),
and then a bottom menu. The item in parenthesis may be repeated more than
once, as needed. For example, SETUP ! Output Condition ! Control
Condition ! Change Inhibit Control ! Both ! OK is executed as follows:
1. Press the SETUP button on the front panel.
2. Press the Output Condition bottom button.
3. Press the Control Condition side button.
4. Press the Change Inhibit Control side button.
5. Select Both from the popup menu.
6. Press the OK side button.
