Edit Menu
3 46
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Popup Menu.

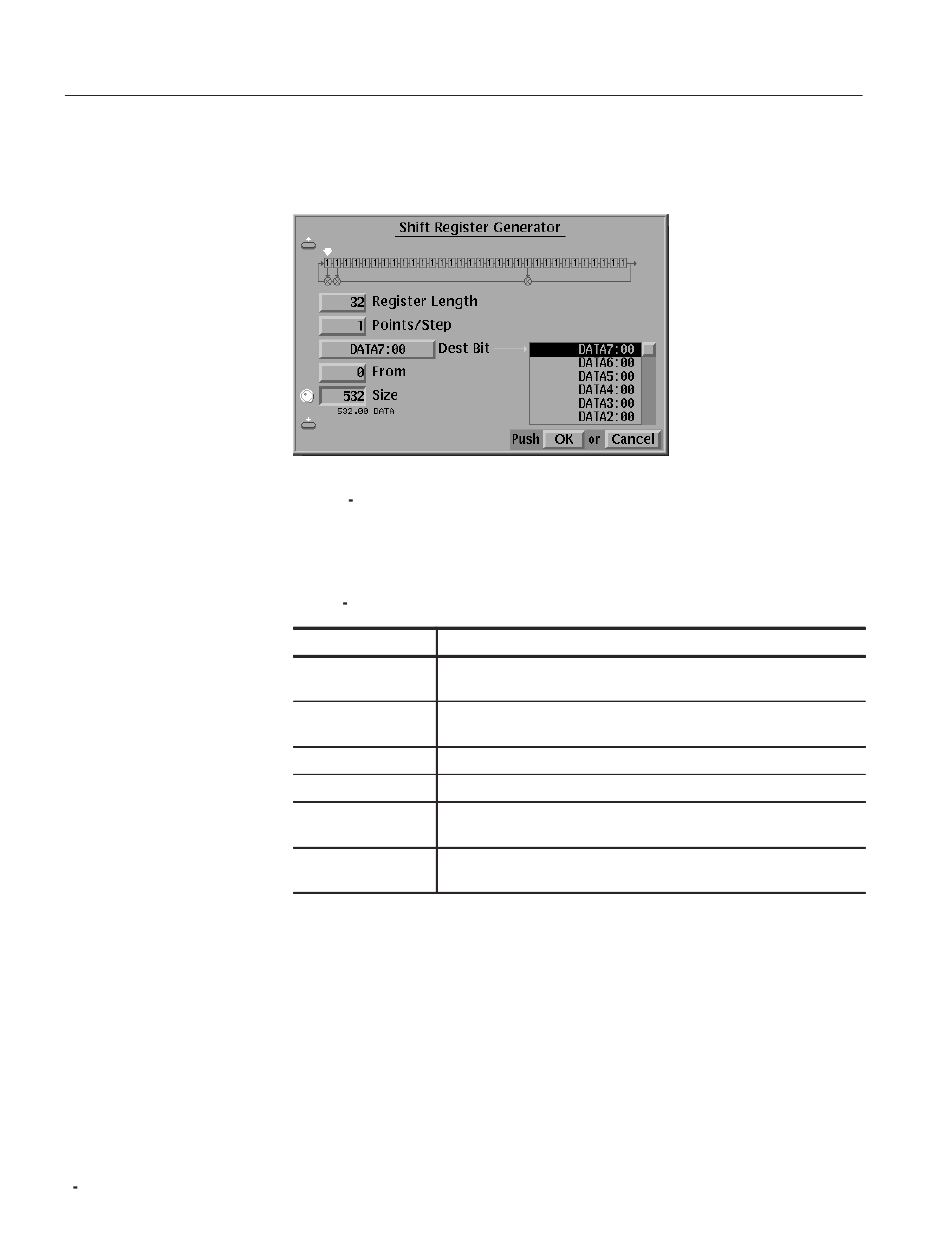

Figure 3 40: Shift Register Generator popup menu
Table 3-11 describes the parameter items.
Table 3 11: Shift register generator parameters
Parameter Function
Register Diagram Use the 0 and 1 numeric keys to set the register's initial value. Use the
-" button to toggle taps.
Register Length Sets the register length. The register length can be set to a value
between 1 and 32.
Points/Step The number of data points set for each shift of the register.
Dest Bit The bit to which the pattern is written
From When Entered was selected in the Region side menu item, specifies
the first point from which the pattern is written.
Size When Entered was selected in the Region side menu item, specifies
the number of points into which the pattern is written.
DG2030 User Manual
