Defines the actions of the arrow buttons. The term arrow button, refers to the left
and right arrow buttons for timing display, and the up and down arrow buttons
for table and binary display. Arrow button actions include those associated with
cursor movement and those associated with editing operations. Also note that the
arrow button action is sometimes changed automatically by the Execute Action

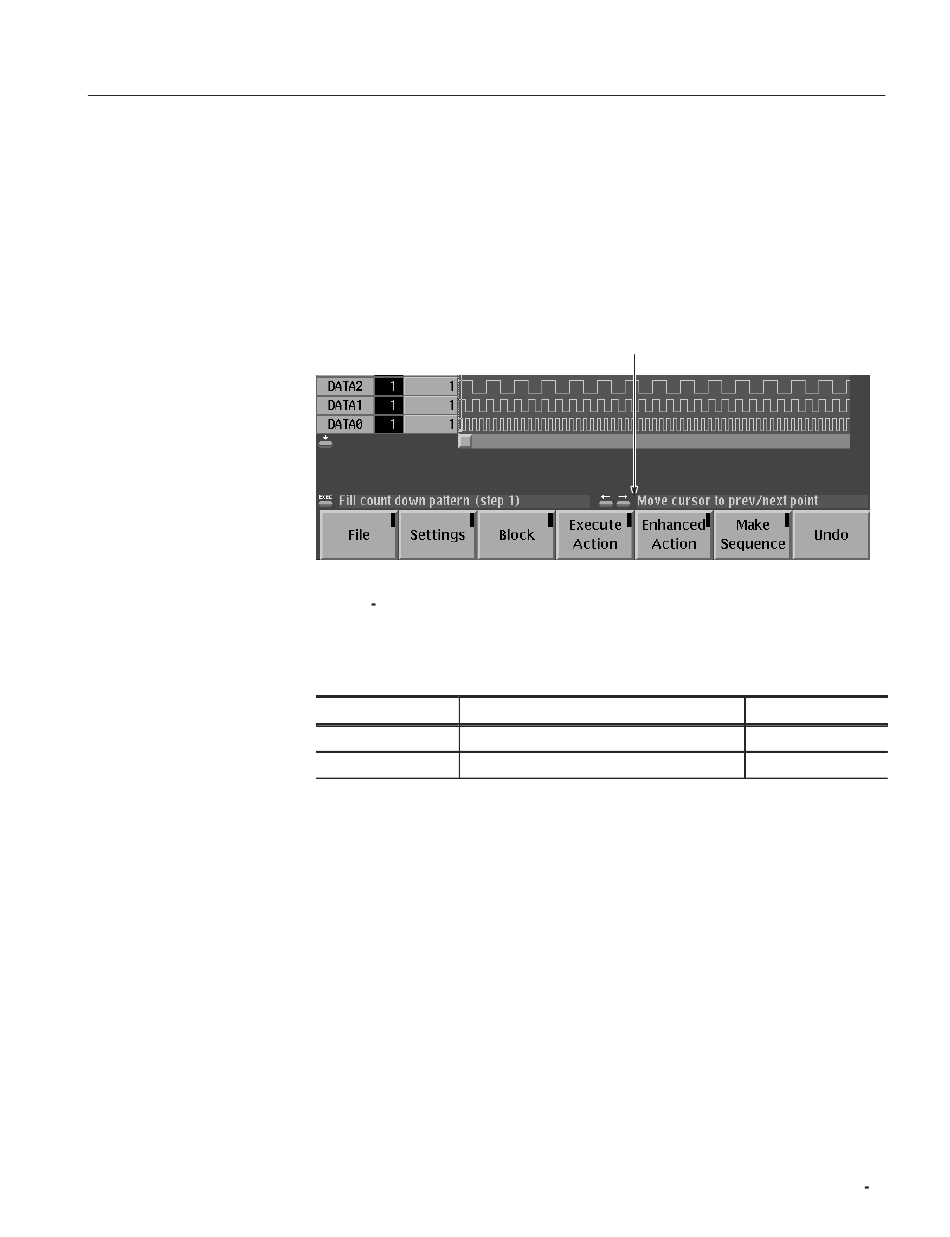

menu functions described on page 3-29. Figure 3-10 shows an action display
within the timing display
Figure 3 10: Arrow button action display (timing display)
Operation. Set the arrow button action
Bottom button Popup menu
Settings

Select arrow key function

Select the arrow button action.
Popup Menu. Use the general purpose knob to select one of the following actions
from the displayed popup menu. Items that currently cannot be used are dimmed
as shown in Figure 3-11.
Arrow Button Action
Side button
OK
OK
Edit Menu
