Tektronix DG2030 User Manual page 89

Operating Examples
Creating Block 4 Data
2 54
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

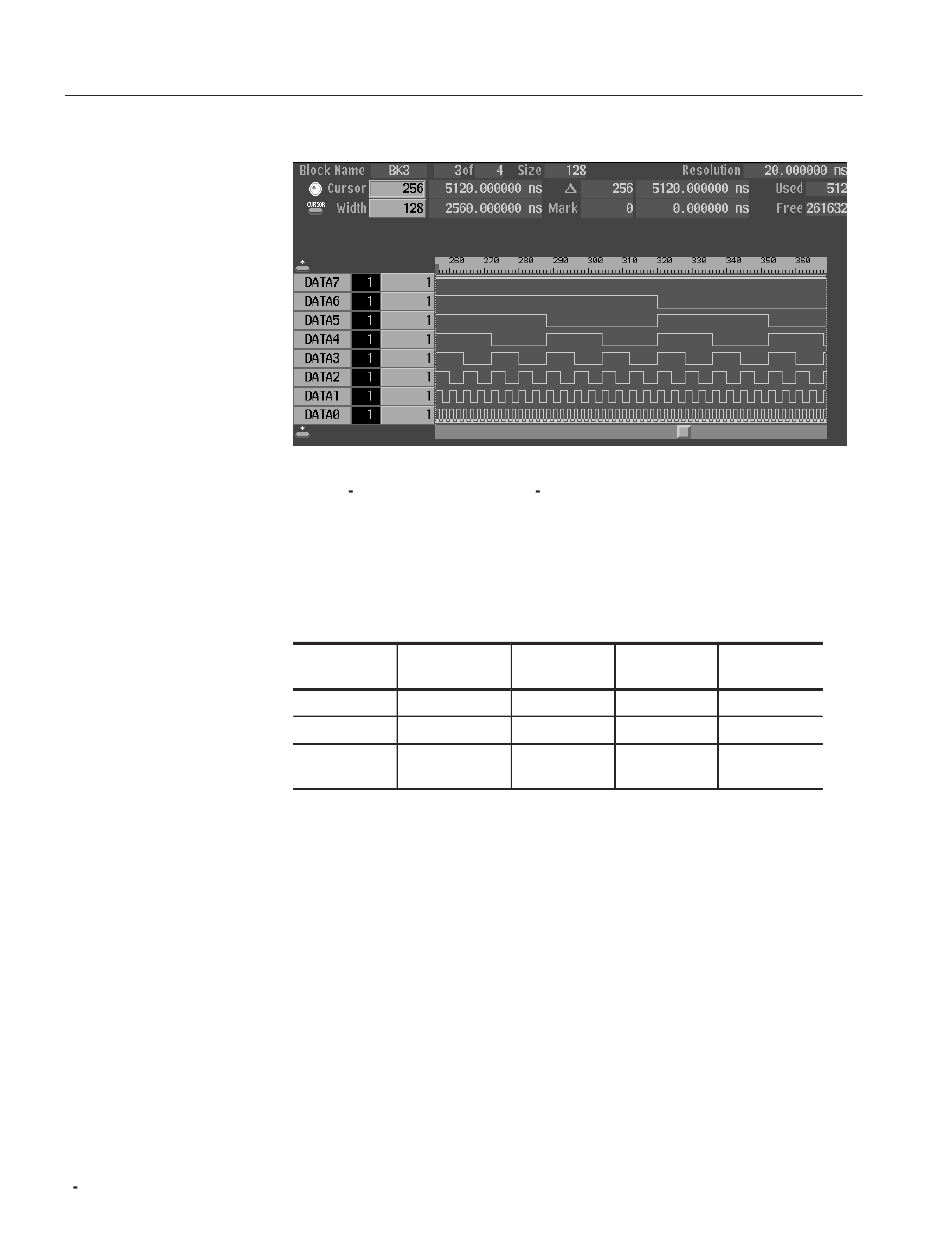

Figure 2 33: Creating a binary down counter for block BK3
10. Create data consisting of all ones in block 4. Confirm that the knob icon
appears in the Cursor window in the upper left of the screen. If the icon is
not in that window, move it there with the front panel CURSOR button.
Menu button Bottom button
Execute
Action
Popup menu Side button
Set data to OK
High
Front panel
button
384
ENTER
EXECUTE
DG2030 User Manual
