18. Output the sequence and observe the pattern using an oscilloscope. See
Figure 2-29 on page 2-48 for the connection between the DG2030 and the
oscilloscope.
Press START/STOP button on the front panel to start output. The message
Waiting for Trigger is displayed soon at upper right part of the screen.
The first two lines in the sequence wait for a trigger event. Press the
FORCE TRIGGER button on the front panel to generate the trigger event.
The sequence in line 2 outputs the BK1 pattern repeatedly until the event
condition is satisfied. Press the STEP/EVENT button on the front panel to
quit the loop and to advance to sequence line 3.
In Enhanced mode, the entire sequence is repeatedly output. So the message
Waiting for Trigger is displayed again and again until you press the
START/STOP button on the front pane.

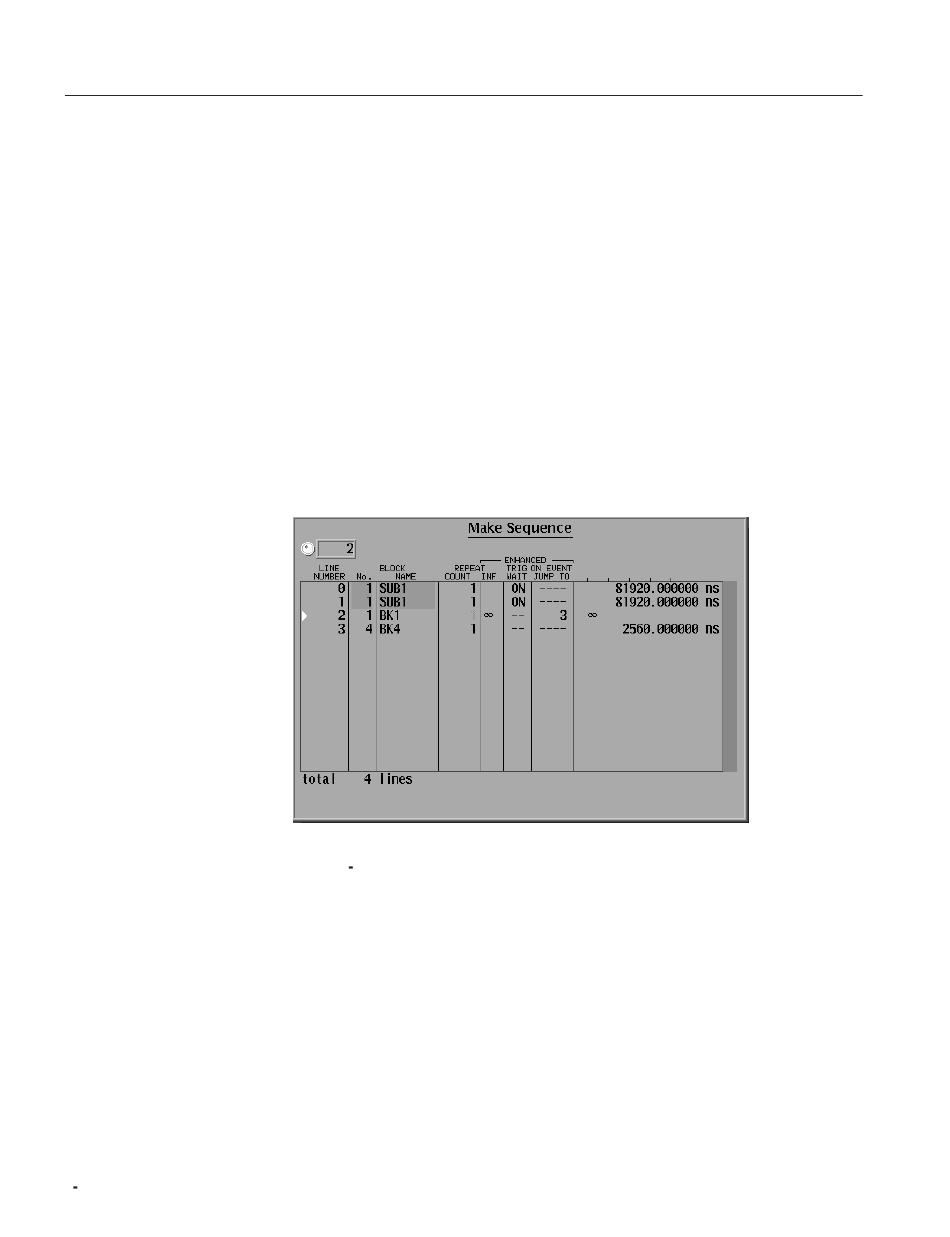

Figure 2 37: Sample sequence
