Operating Examples
Create a Subsequence

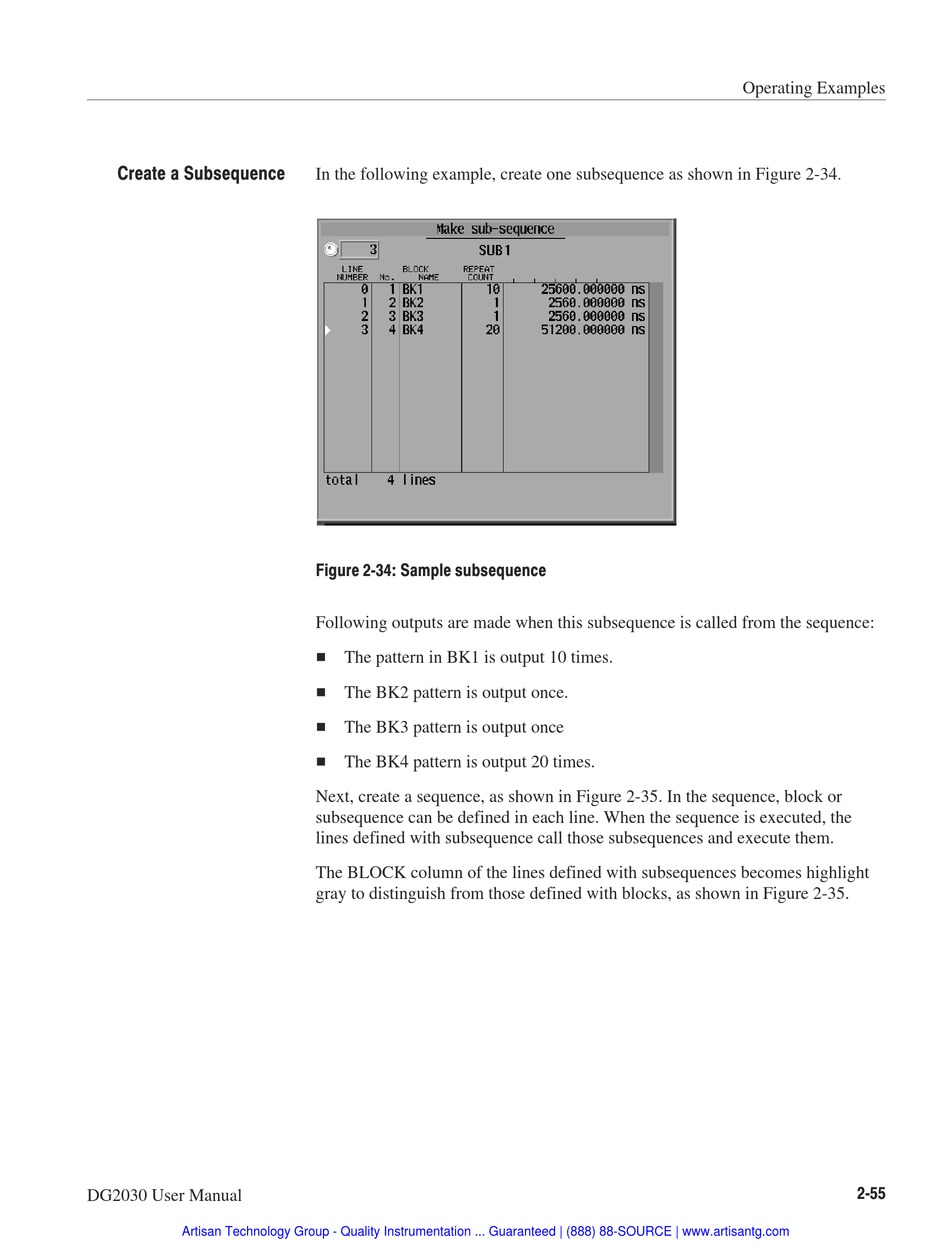

In the following example, create one subsequence as shown in Figure 2-34
.
Figure 2 34: Sample subsequence
Following outputs are made when this subsequence is called from the sequence:
H The pattern in BK1 is output 10 times.
H The BK2 pattern is output once.
H The BK3 pattern is output once
H The BK4 pattern is output 20 times.
Next, create a sequence, as shown in Figure 2-35. In the sequence, block or
subsequence can be defined in each line. When the sequence is executed, the
lines defined with subsequence call those subsequences and execute them.
The BLOCK column of the lines defined with subsequences becomes highlight
gray to distinguish from those defined with blocks, as shown in Figure 2-35.
2 55
