Mirror Vertical
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
For example, this operation will set the value of a 3-bit group whose original
value was 4H (hexadecimal) to 3H.
Original data: 100 (binary) (= 4H)
Inverted data: 011 (binary) (= 3H)
The function described here is for timing display format. The cursor becomes the
area cursor. The area specified as the editing area is reordered in the group/bit
direction in a mirror-image manner. This editing operation operates on bit units
regardless of any group definitions. In display formats other than timing display
(i.e., table and binary), the reordering is performed in the point direction.
Before Execution
DATA2
DATA1
DATA0
After Execution
DATA2
DATA1
DATA0

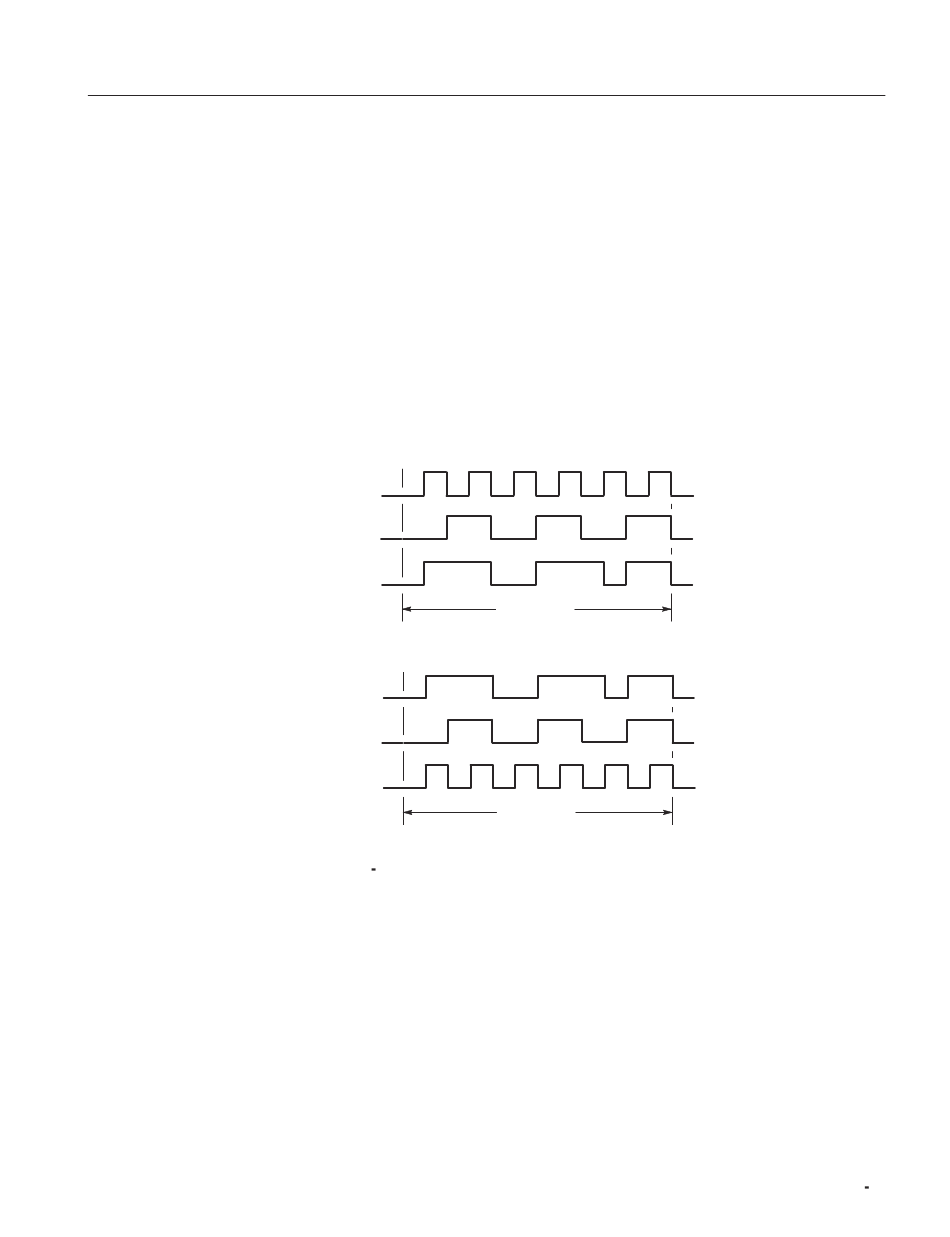

Figure 3 27: Mirror vertical
Editing Area
Editing Area
Edit Menu
3 35
